Selector Lever

Selector Lever

Removal

1. Remove the floor console. For additional information, refer to Instrument Panel and Console Service and Repair.

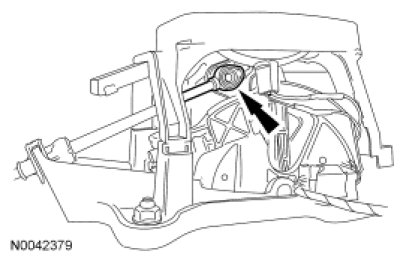

2. Disconnect the selector lever cable end from the selector lever ball stud.

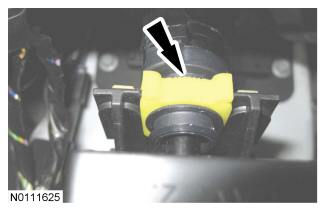

3. Release the locking tab on the selector lever cable clip and remove the selector lever cable from the selector lever housing.





4. Disconnect the selector lever electrical connector.

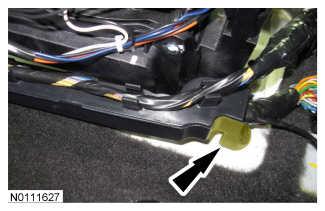

5. Using a suitable tool, remove the wiring harness from the selector lever base.

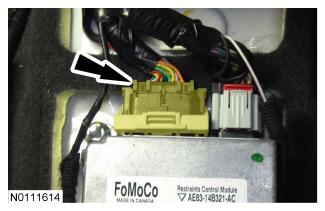

6. Disconnect the Restraints Control Module (RCM) electrical connector.

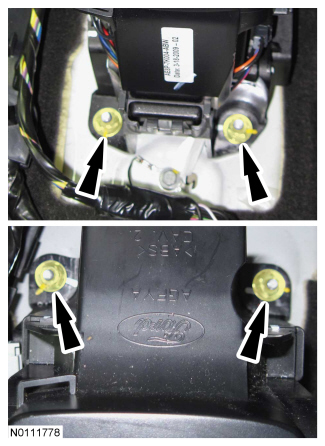

7. Remove the 4 selector lever nuts and remove the selector lever.





Installation

1. Install the selector lever and the 4 selector lever nuts.
- Tighten to 9 Nm (80 lb-in).





2. NOTE: When installing the selector lever cable, make sure the selector lever cable locking tabs are locked in place. Press the selector lever cable into the bracket and listen for the selector lever cable to click in place. Pull back on the selector lever cable to make sure it is locked into the selector lever cable bracket.

Install the selector lever cable in the selector lever housing.





3. NOTE: Make sure the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure the selector lever cable end is correctly installed.

Connect the selector lever cable end to the selector lever ball stud.





4. Connect the selector lever electrical connector.





5. Connect the RCM electrical connector.





6. Connect the wiring harness to the selector lever base.





7. Install the floor console. For additional information, refer to Instrument Panel and Console Service and Repair.

8. Adjust the selector lever cable. For additional information, refer to Selector Lever Cable Adjustment Adjustments.
