Transaxle Case

Transaxle Case





Disassembly

1. Remove and discard the halfshaft seal.

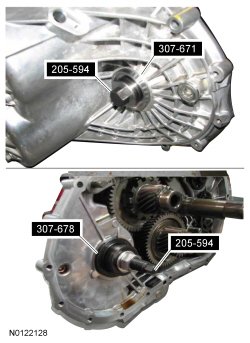

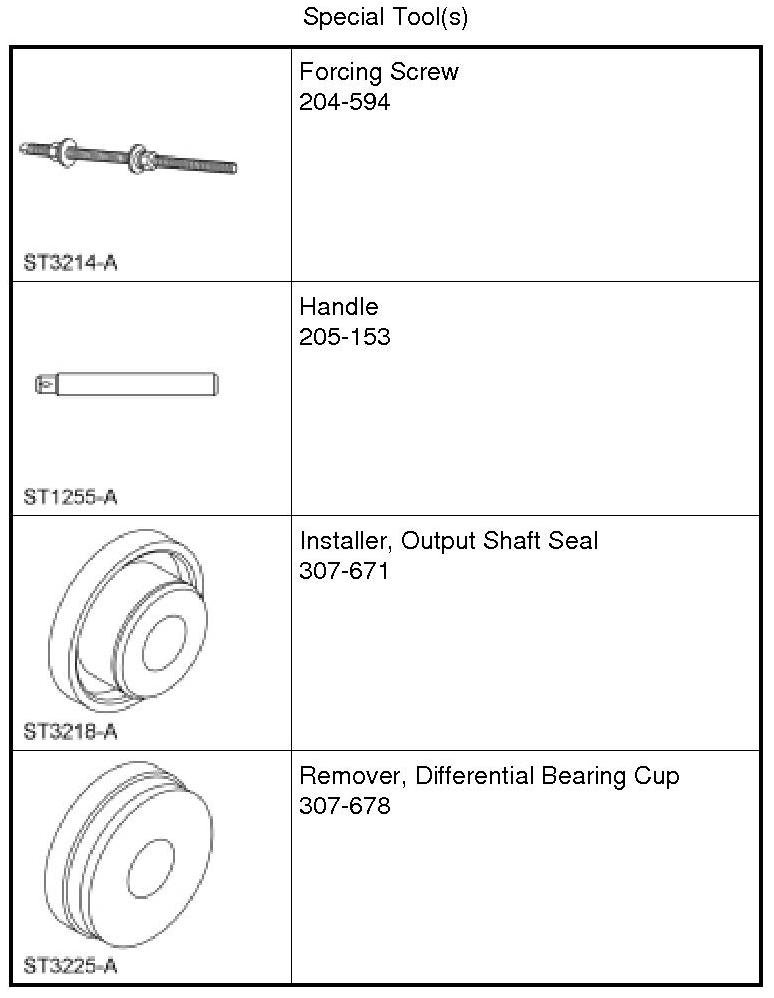

2. Using the special tools, remove the differential case bearing cup.





Assembly

1. NOTE: If a new differential gear bearing, transmission case, differential or clutch housing are installed, measure the differential shim for the correct size. For additional information, refer to Differential Shim Selection Differential Shim Selection.

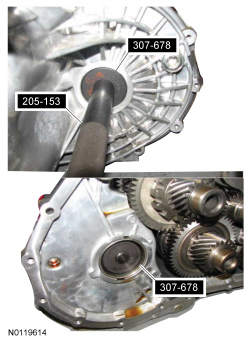

Using the special tools, install the differential gear bearing cup.






2. Install the new halfshaft seal on the special tools.





3. Using the special tools, install the new halfshaft seal.
