Pinpoint Test B: No Power in ACC - Vehicles With an Ignition Switch

Refer to Wiring Diagram Set 13, Power Distribution for schematic and connector information Electrical Diagrams.

Normal Operation

When the ignition switch is in the ACC position, voltage is provided to Central Junction Box (CJB) fuses 19 (7.5A) and 26 (7.5A).

This pinpoint test is intended to diagnose the following:

- CJB (Central Junction Box) fuse(s)

- Wiring, terminals or connectors

- Ignition switch

PINPOINT TEST B : NO POWER IN ACC - VEHICLES WITH AN IGNITION SWITCH

NOTICE: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

B1 CHECK THE IGNITION ACC CIRCUIT FOR AN OPEN

- Ignition OFF.

- Disconnect: Ignition Switch C250.

- Disconnect: CJB (Central Junction Box) Fuse 26 (7.5A).

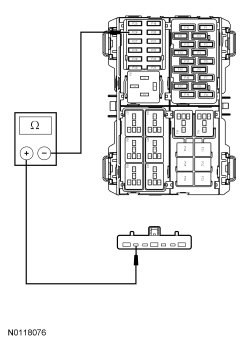

- Measure the resistance between CJB (Central Junction Box) fuse 26 (7.5A), circuit CDC33 (VT/GN), input cavity and ignition switch C250-6, circuit CDC33 (VT/GN), harness side.





Is the resistance less than 5 ohms?

Yes
VERIFY CJB (Central Junction Box) fuses 19 (7.5A) and 26 (7.5A) are OK.

If OK, INSTALL a new ignition switch. REFER to Ignition Switch Service and Repair. TEST the system for normal operation.

If not OK, REFER to the Wiring Diagrams to identify the possible cause of the circuit short Electrical Diagrams. TEST the system for normal operation.

No
REPAIR circuit CDC33 (VT/GN). TEST the system for normal operation.
