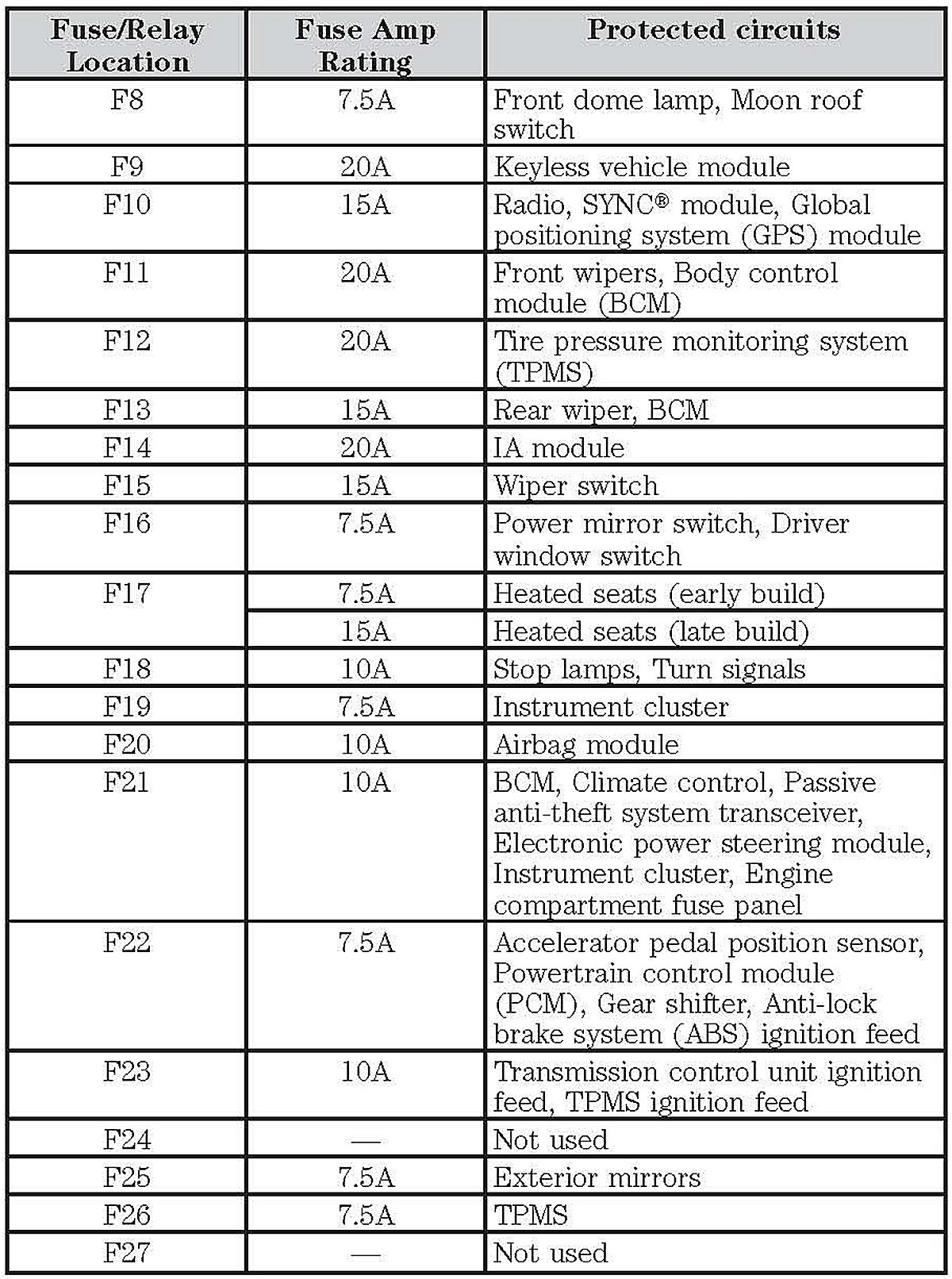

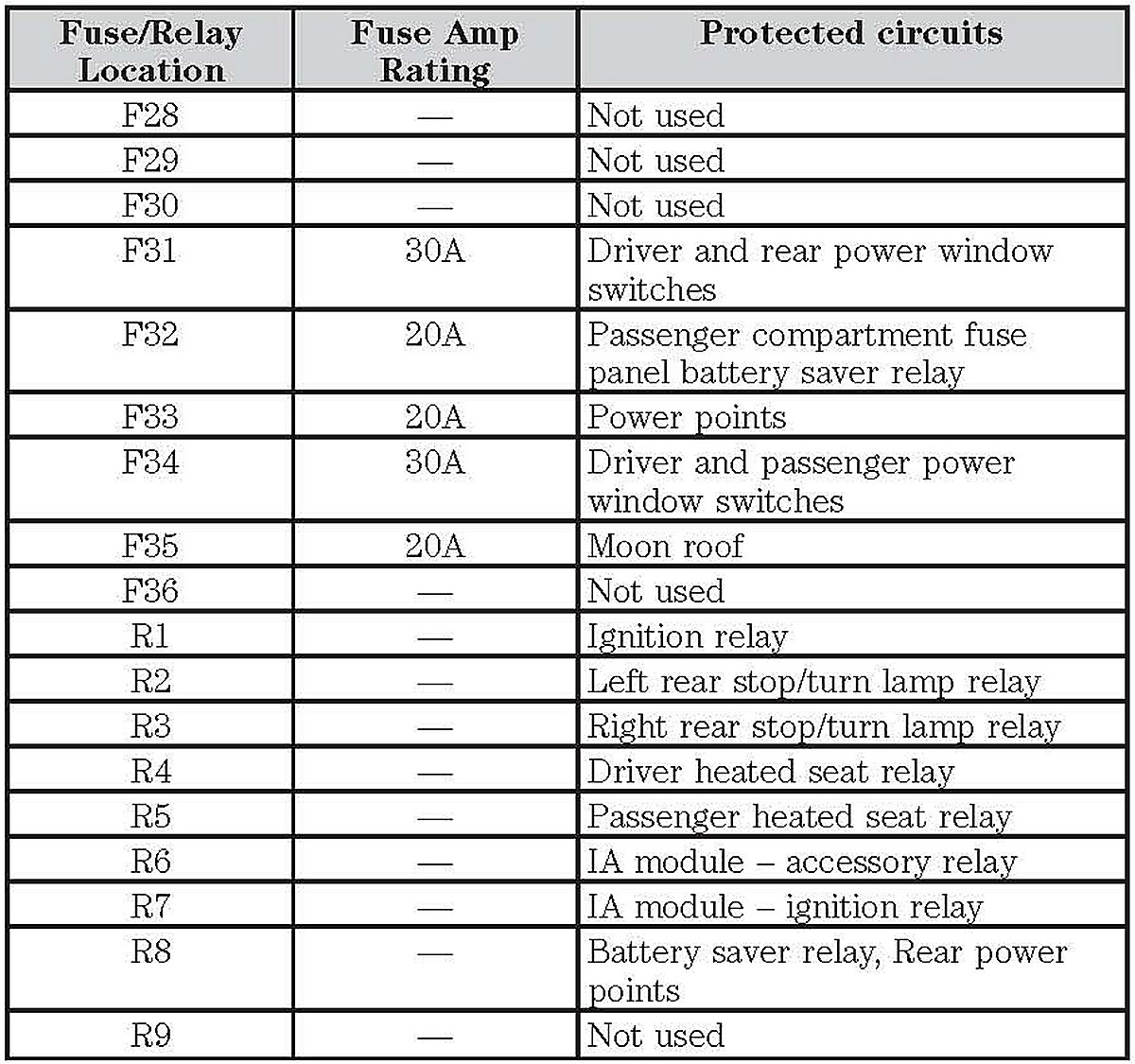

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel

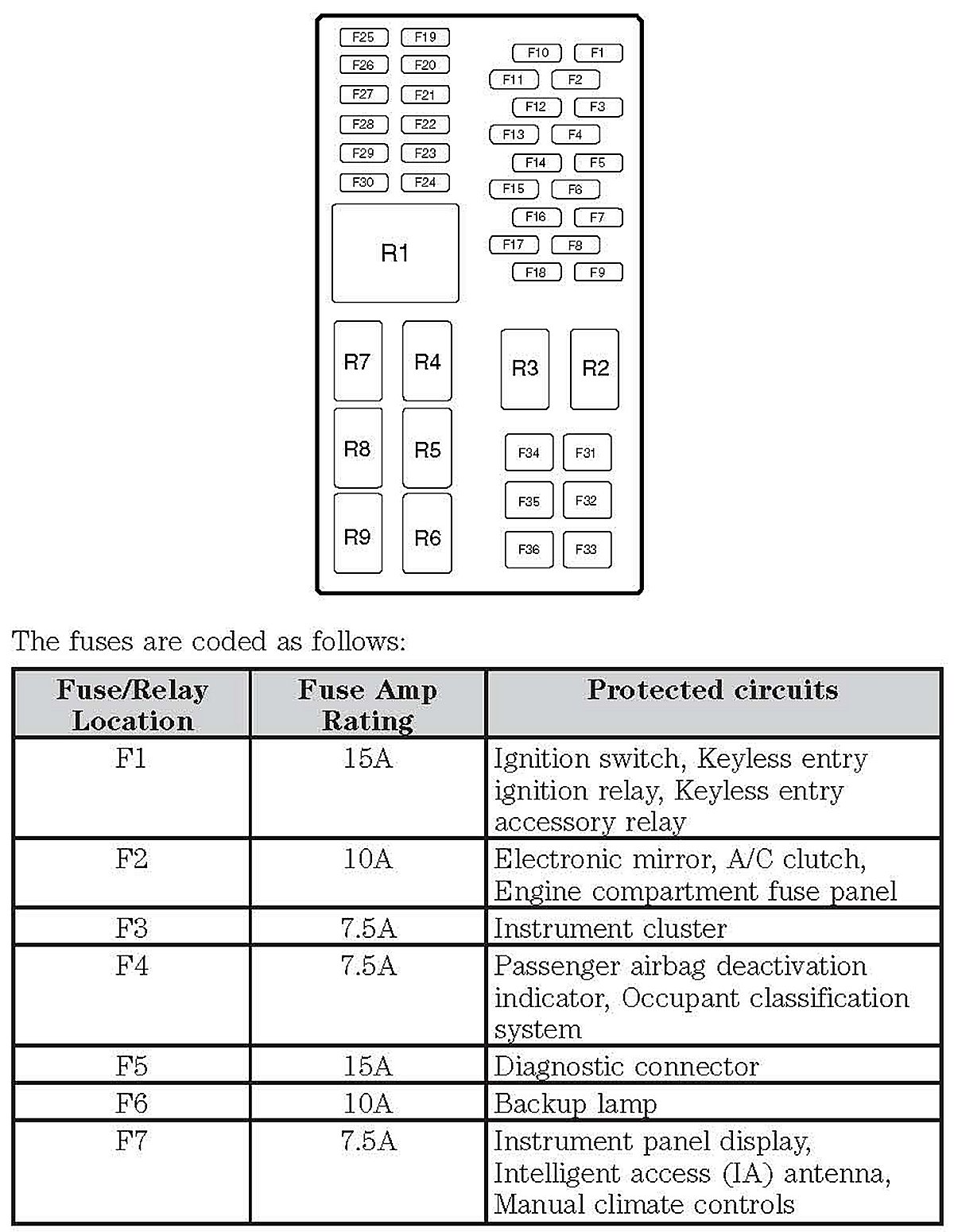

The fuse panel is located behind the glove box.
