Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications >> Power Steering

Power Steering




Specifications

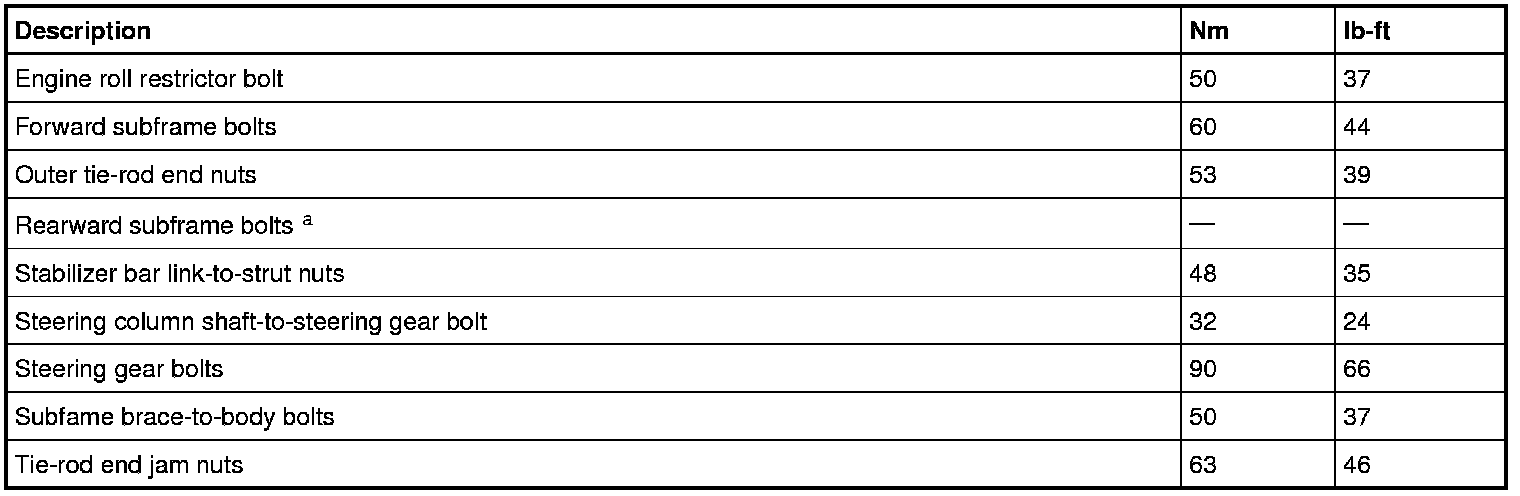

Torque Specifications





a Refer to the procedure in Steering.
