Symptom Related Diagnostic Procedures

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

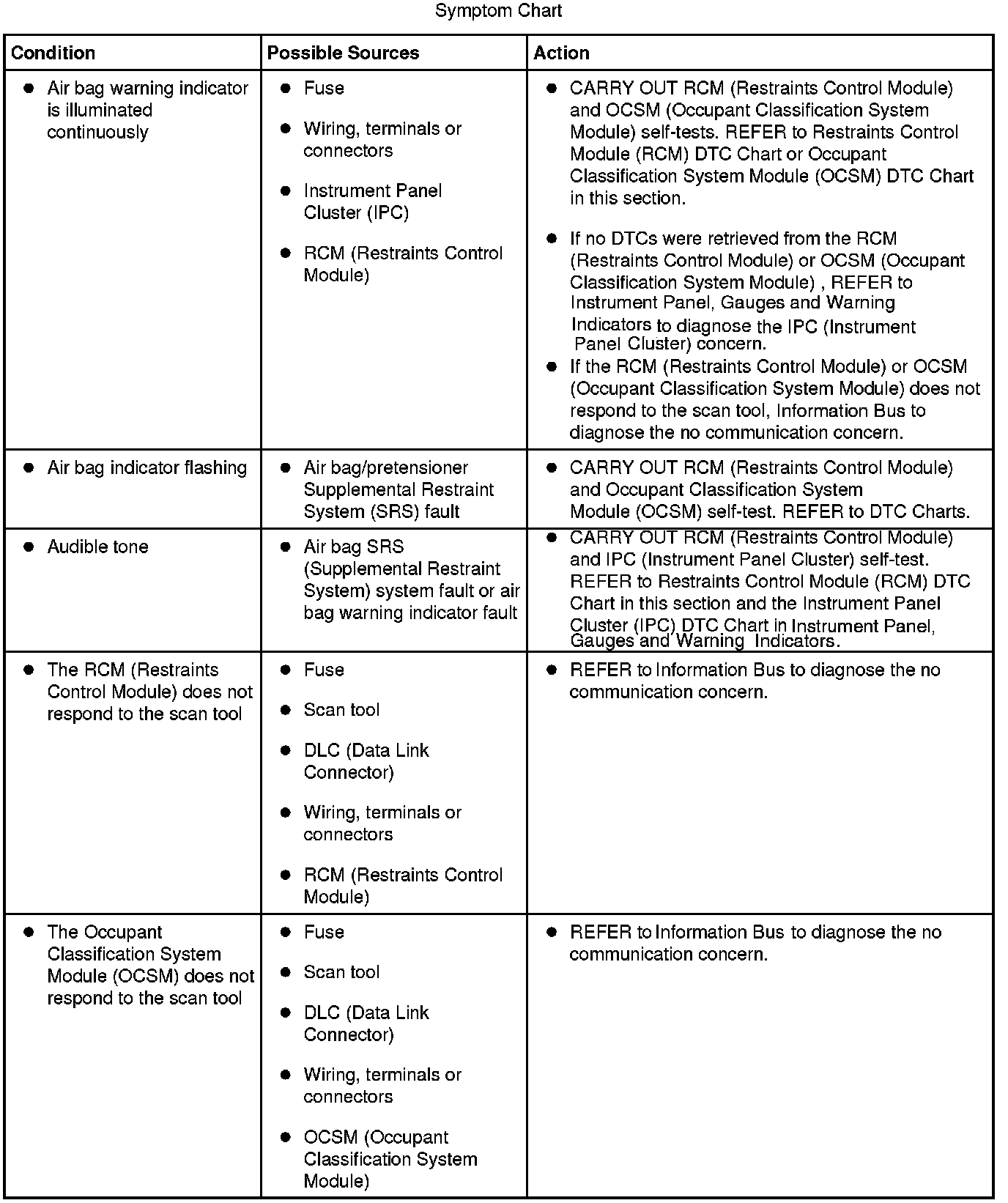

Symptom Chart

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states on vehicles with this feature.





Pinpoint Test - Restraints Control Module (RCM)
