Throttle Body: Service and Repair

Throttle Body

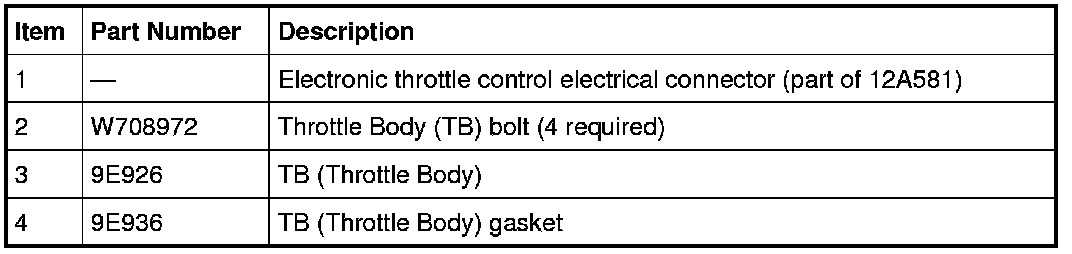

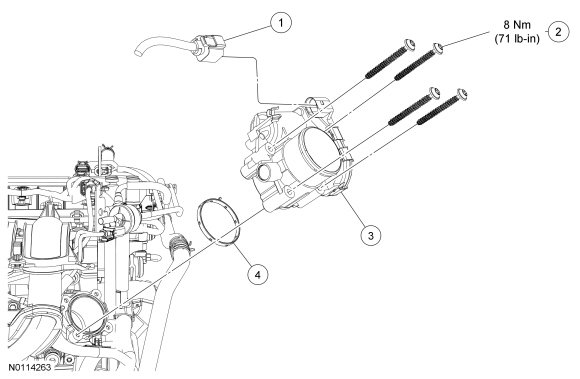

Removal and Installation

1. Remove the Air Cleaner (ACL) outlet pipe.

2. Disconnect the electronic throttle control electrical connector.

3. Remove the 4 bolts and the Throttle Body (TB).
- Remove and discard the TB (Throttle Body) gasket.

- To install, tighten to 8 Nm (71 lb-in).


4. To install, reverse the removal procedure.
- Install a new TB (Throttle Body) gasket.


5. If the TB (Throttle Body) was replaced, turn the key ON without cranking the engine for 1 minute to allow the PCM to learn the adaptive table values for the new TB (Throttle Body).
