Accelerator Pedal: Service and Repair

Accelerator Pedal

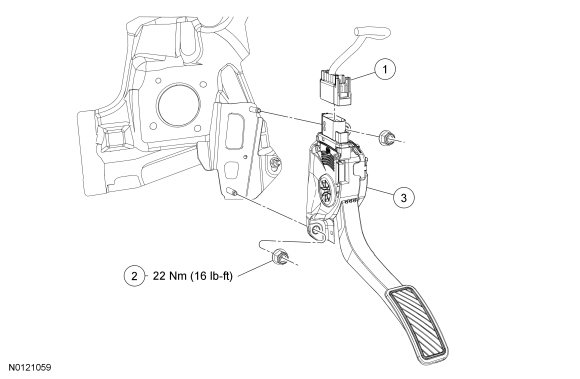

Removal and Installation

1. NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.

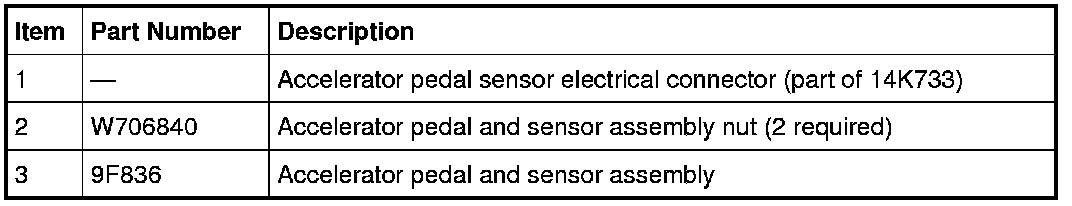

Disconnect the accelerator pedal sensor electrical connector.


2. Remove the 2 nuts and the accelerator pedal and sensor assembly.
- To install, tighten to 22 Nm (16 lb-ft).


3. To install, reverse the removal procedure.
