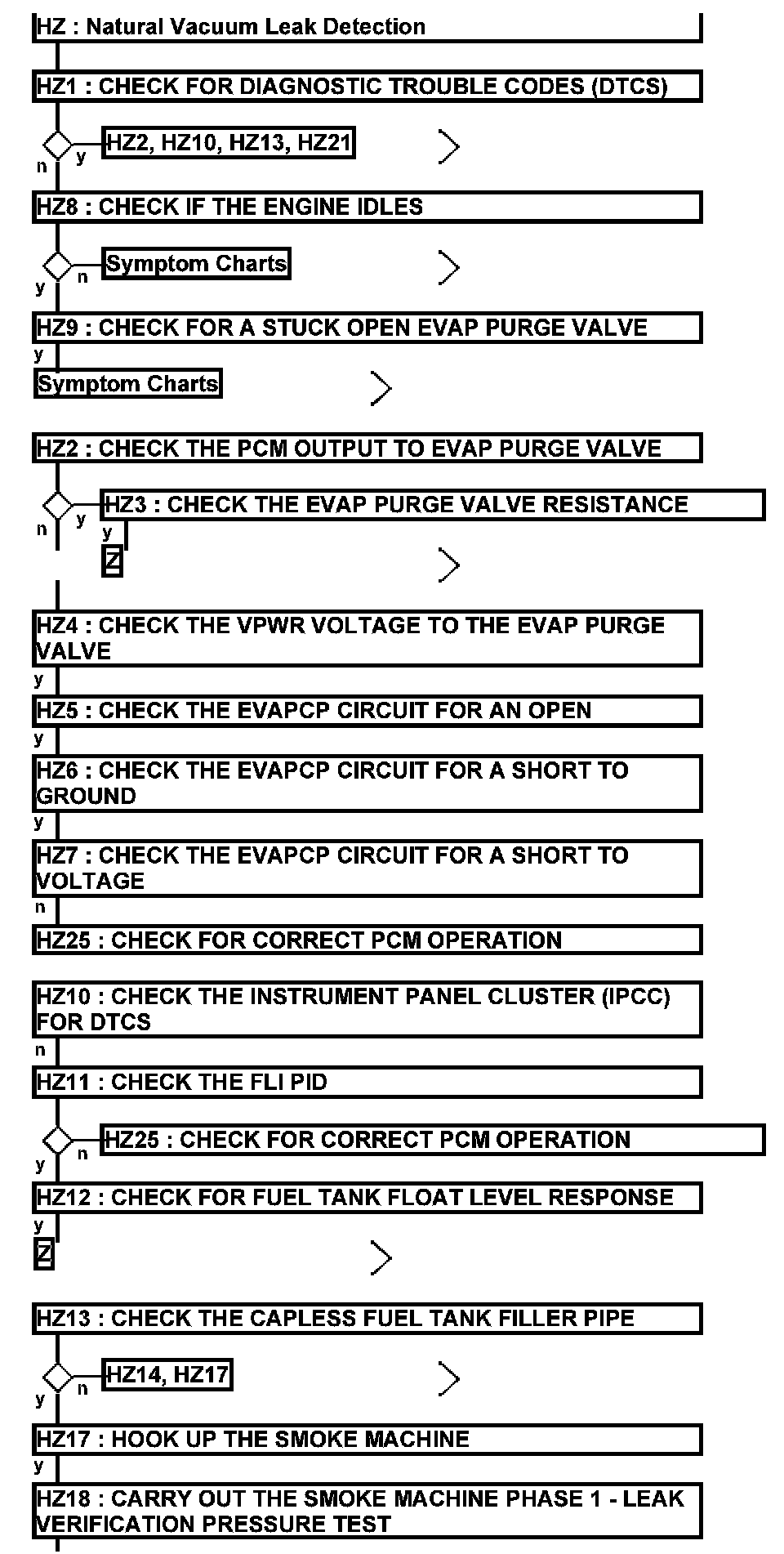

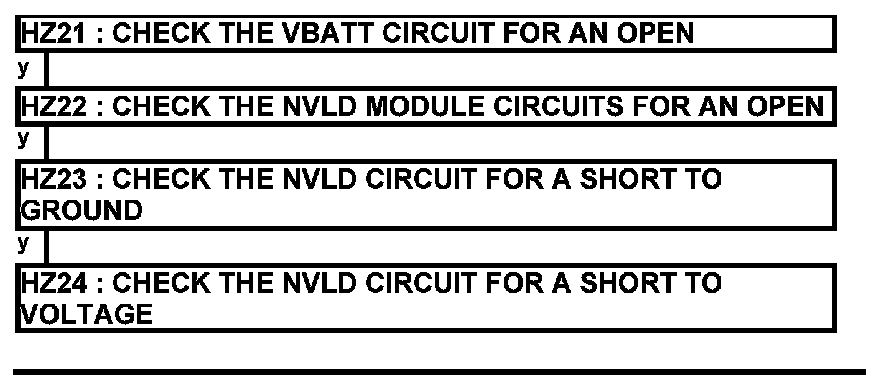

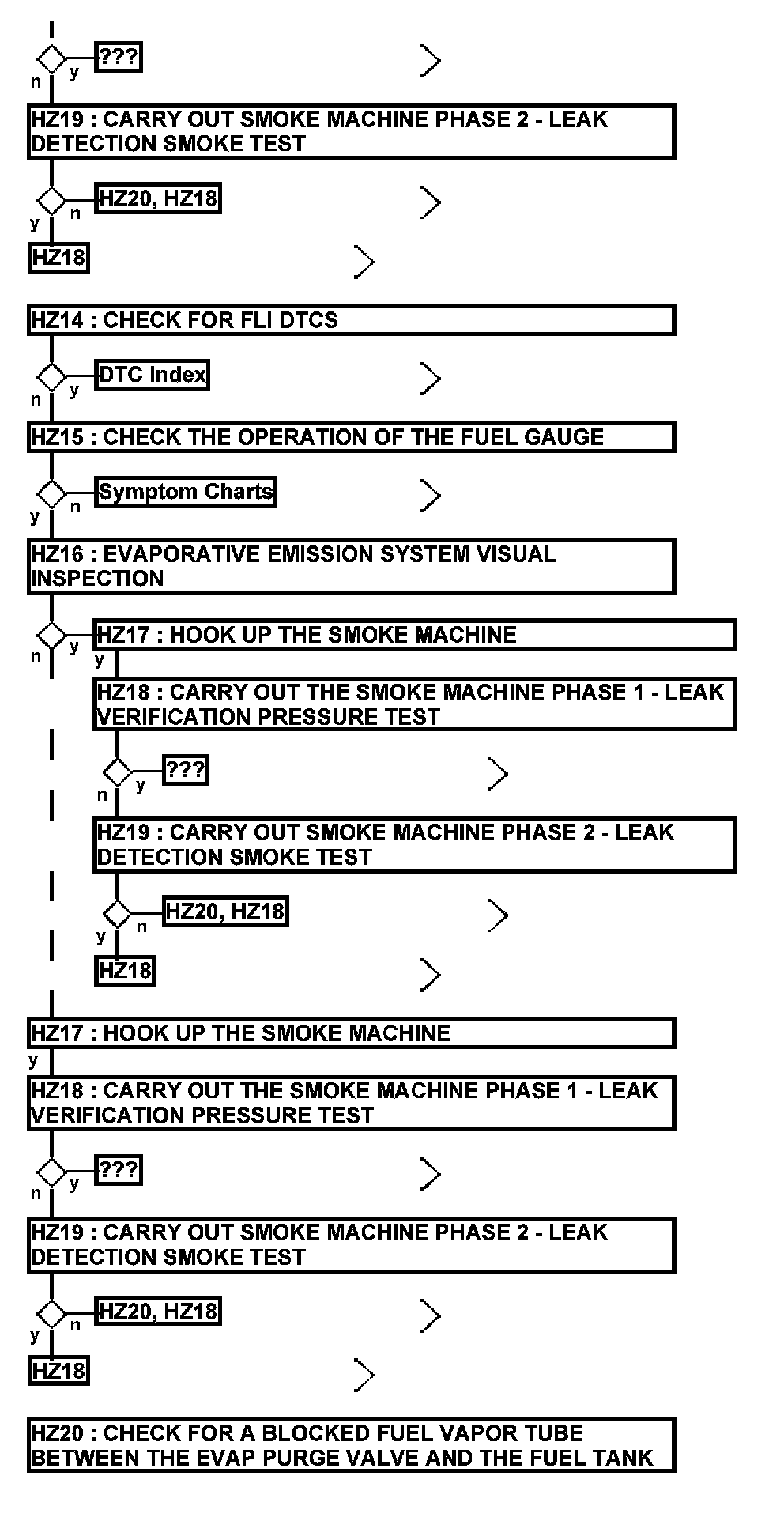

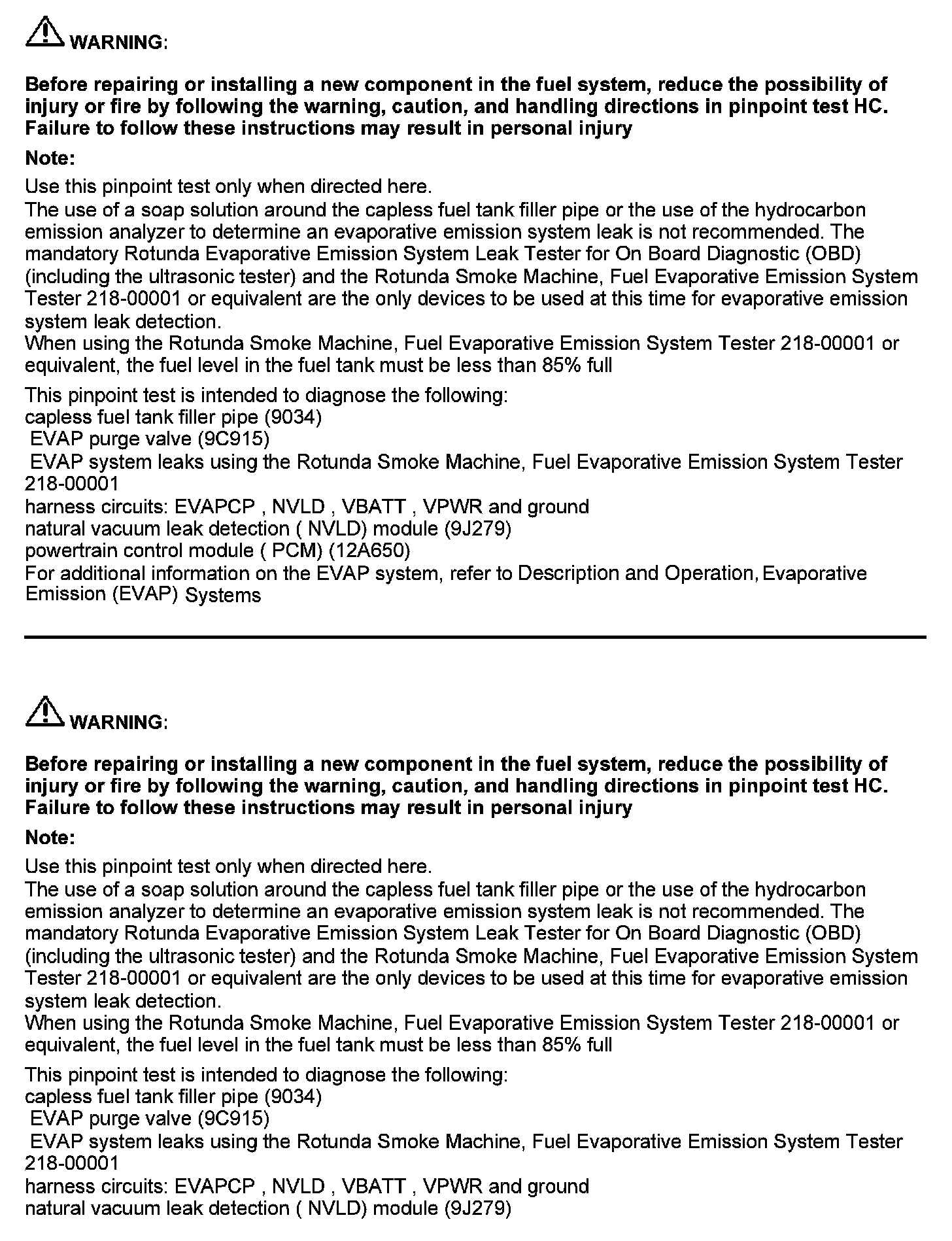

Test HZ: Natural Vacuum Leak Detection



Natural Vacuum Leak Detection

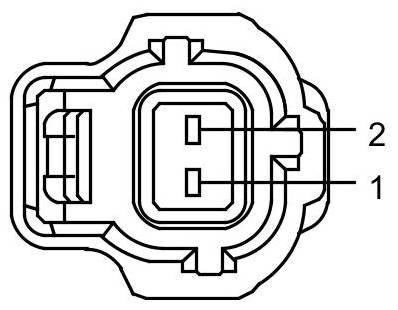

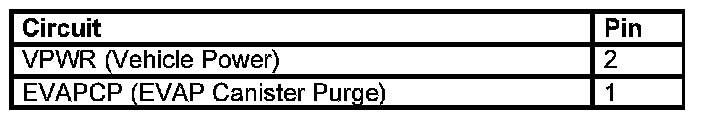

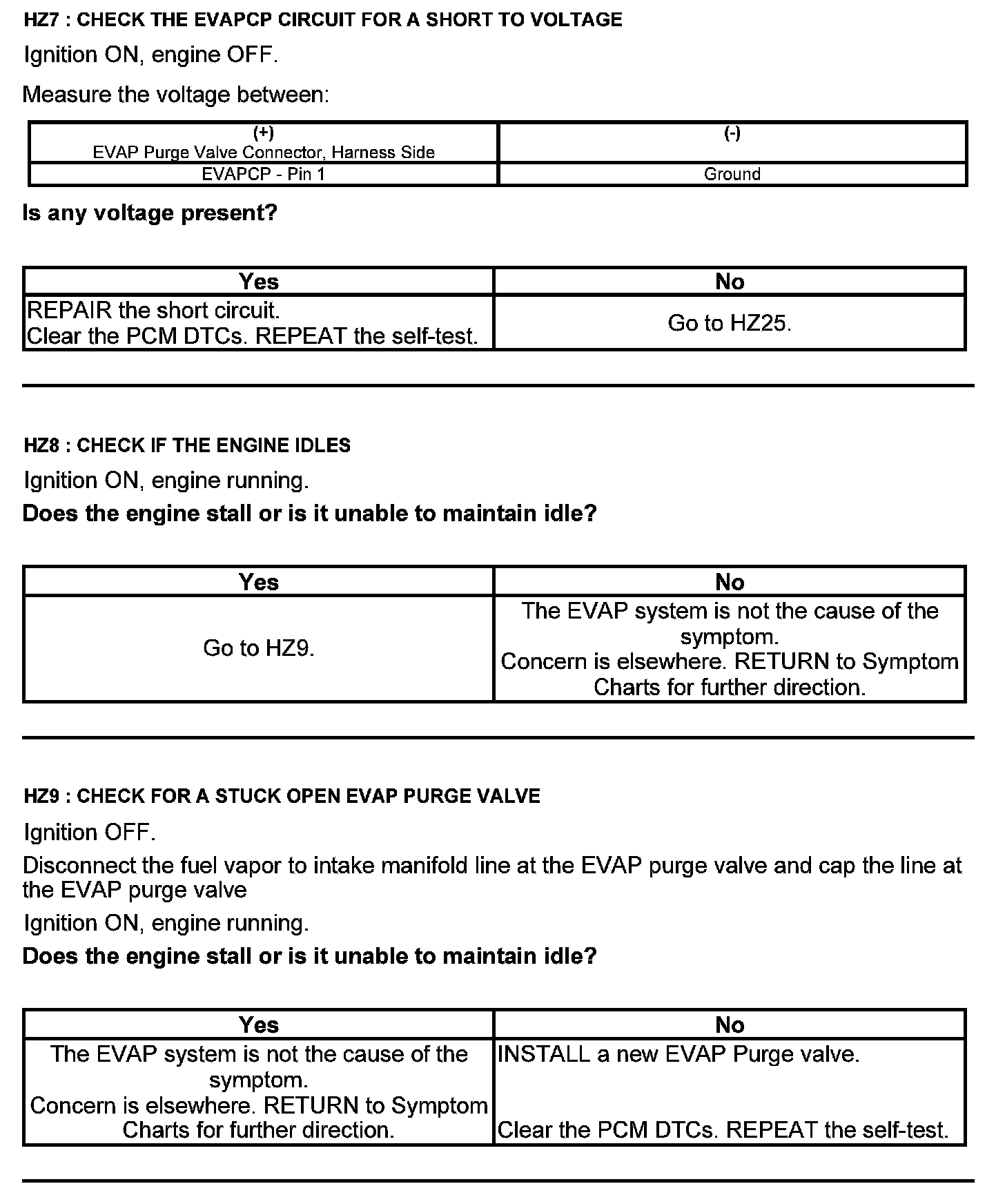

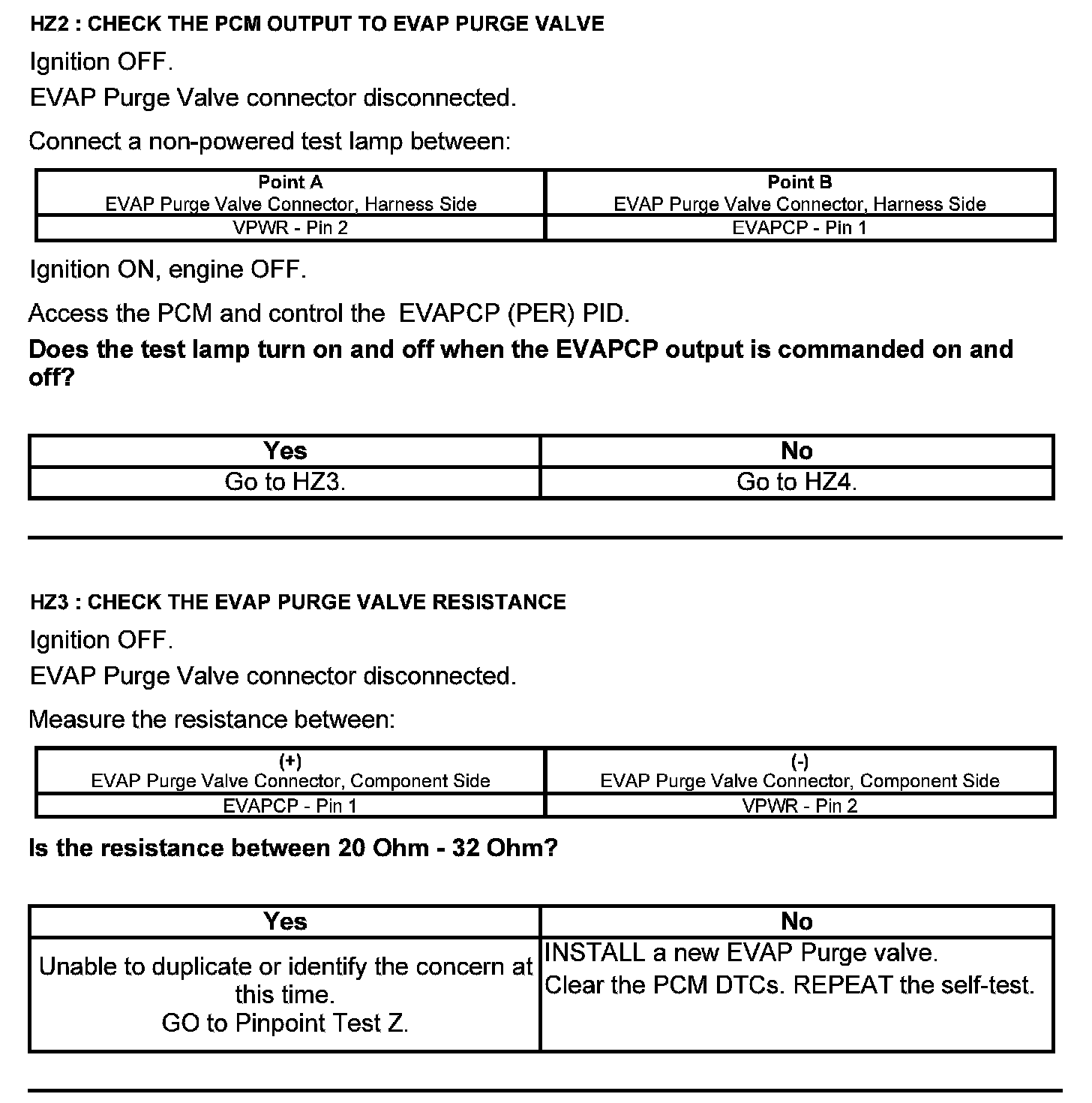

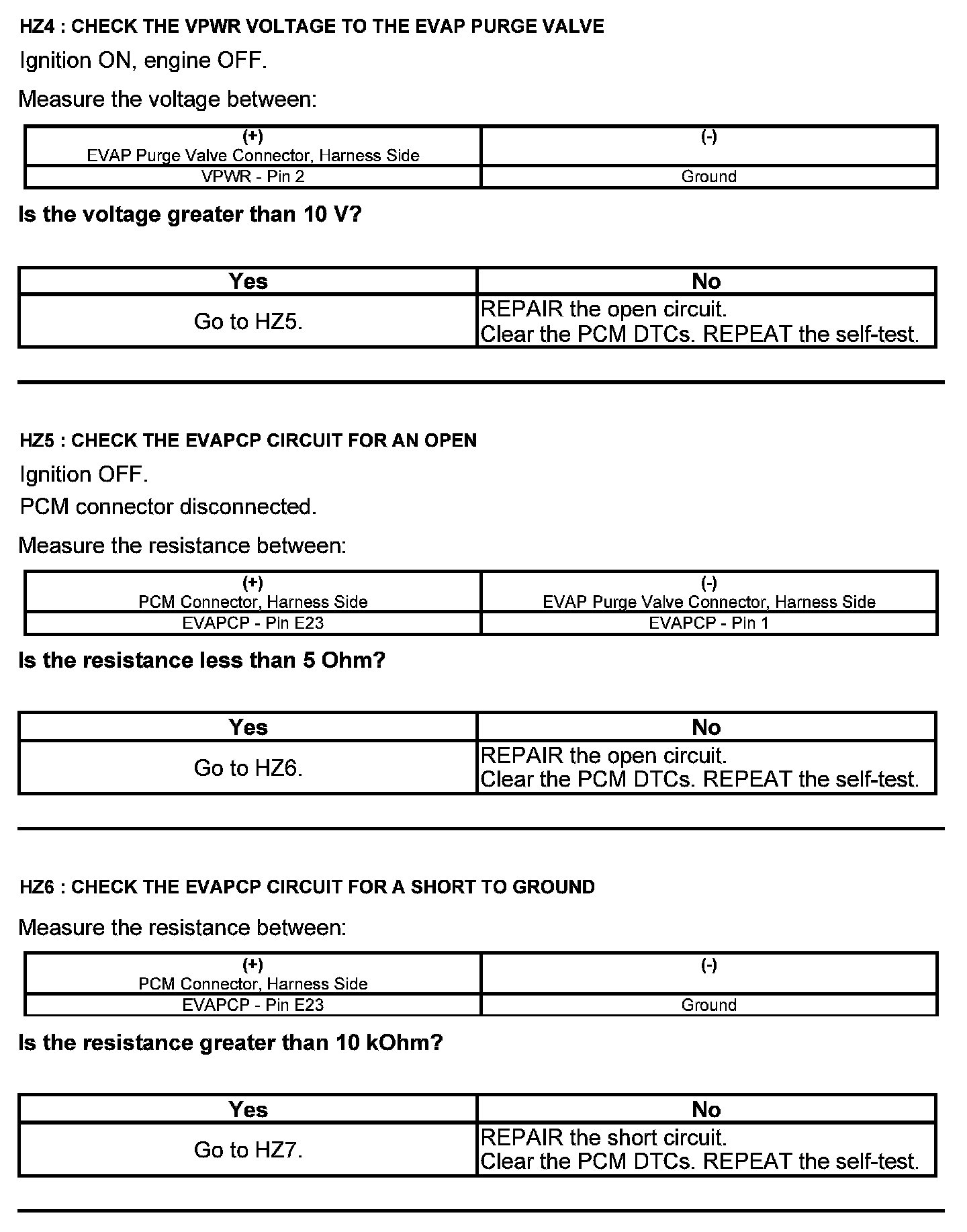

EVAP Purge Valve Connector






Harness Side

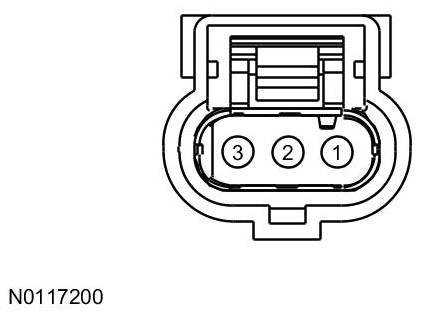

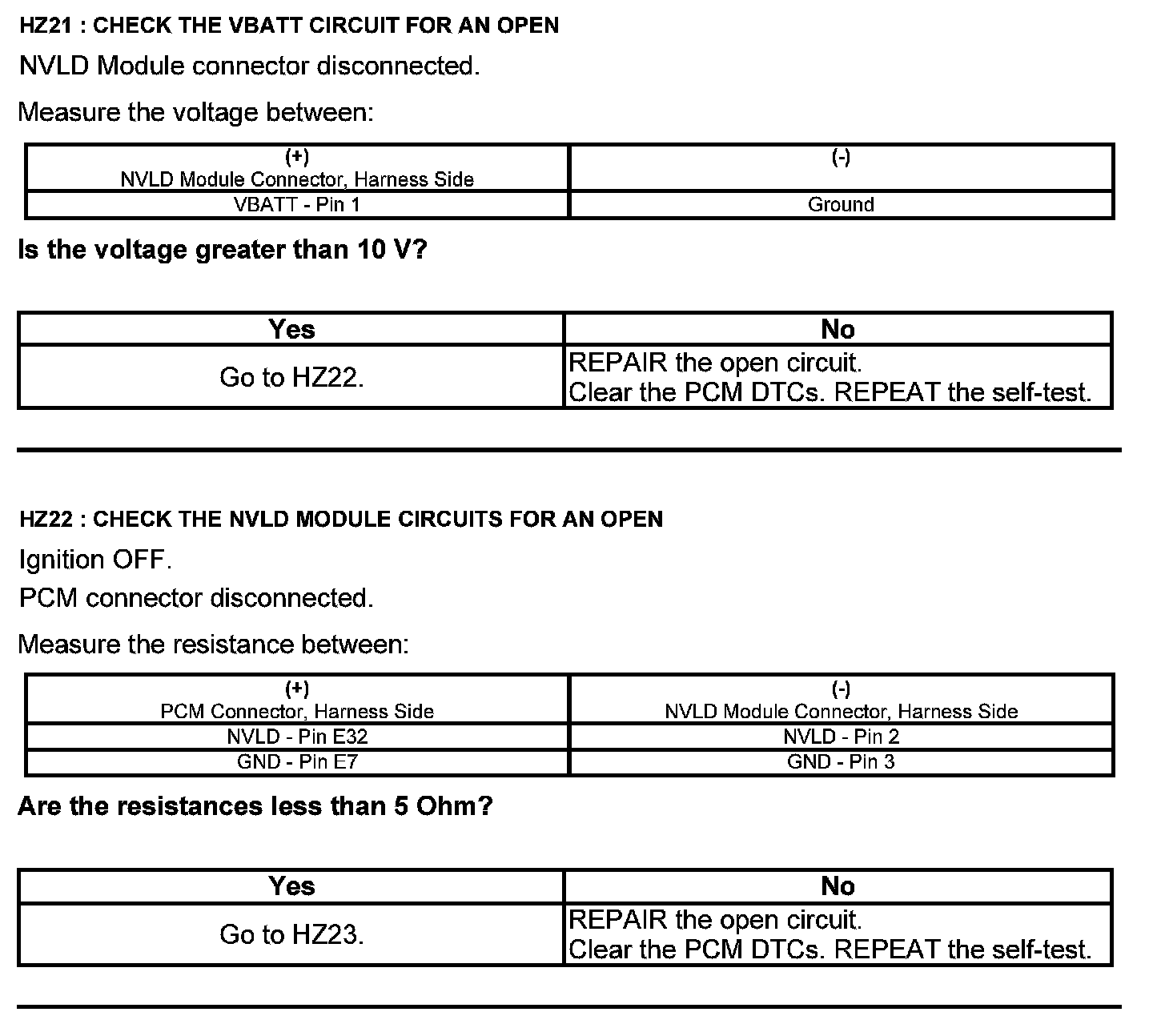

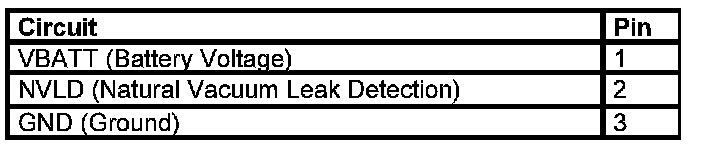

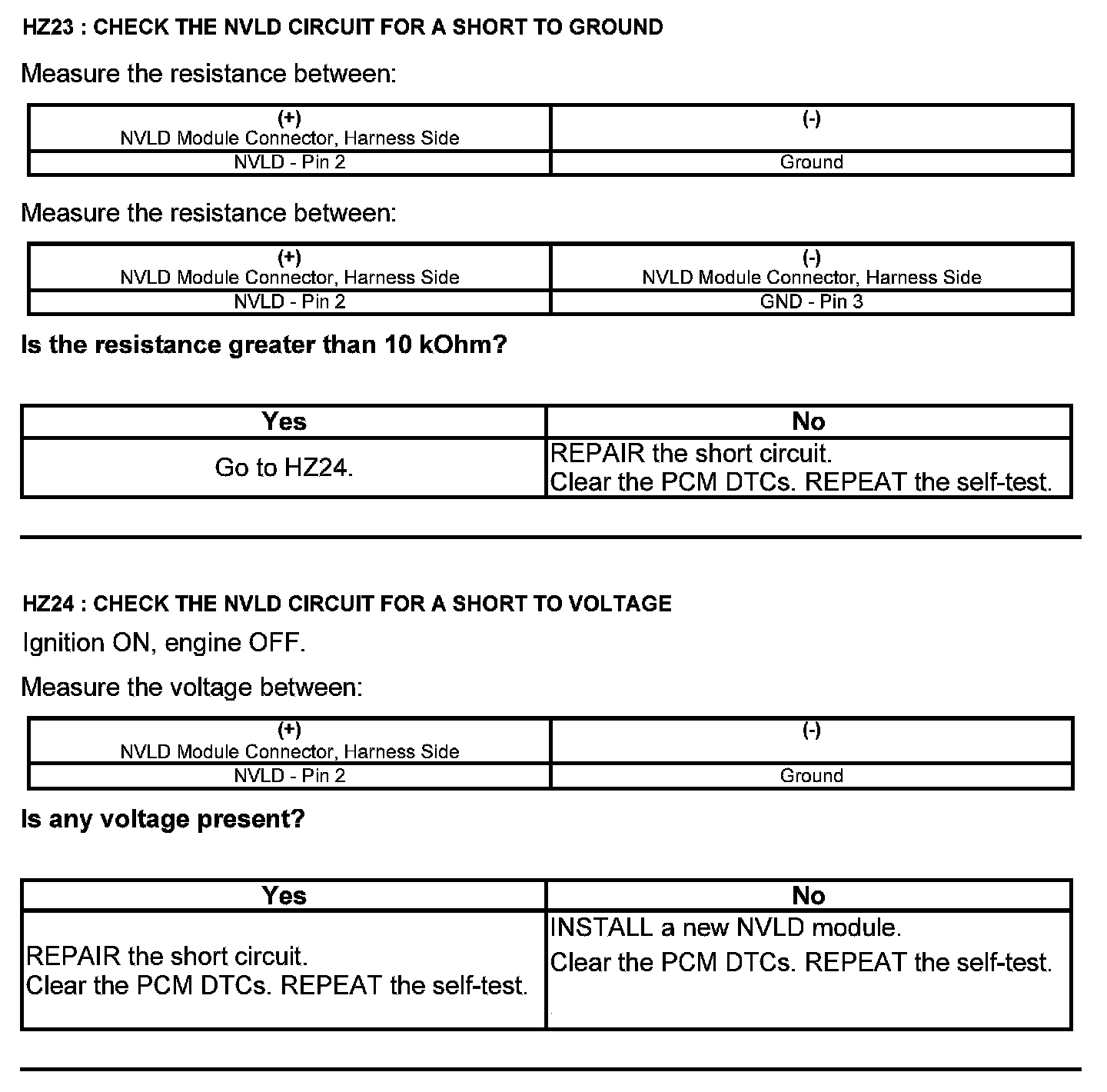

Natural Vacuum Leak Detection (NVLD) Module Connector






Harness Side

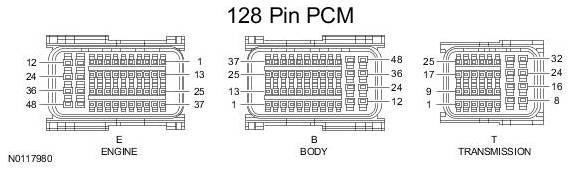

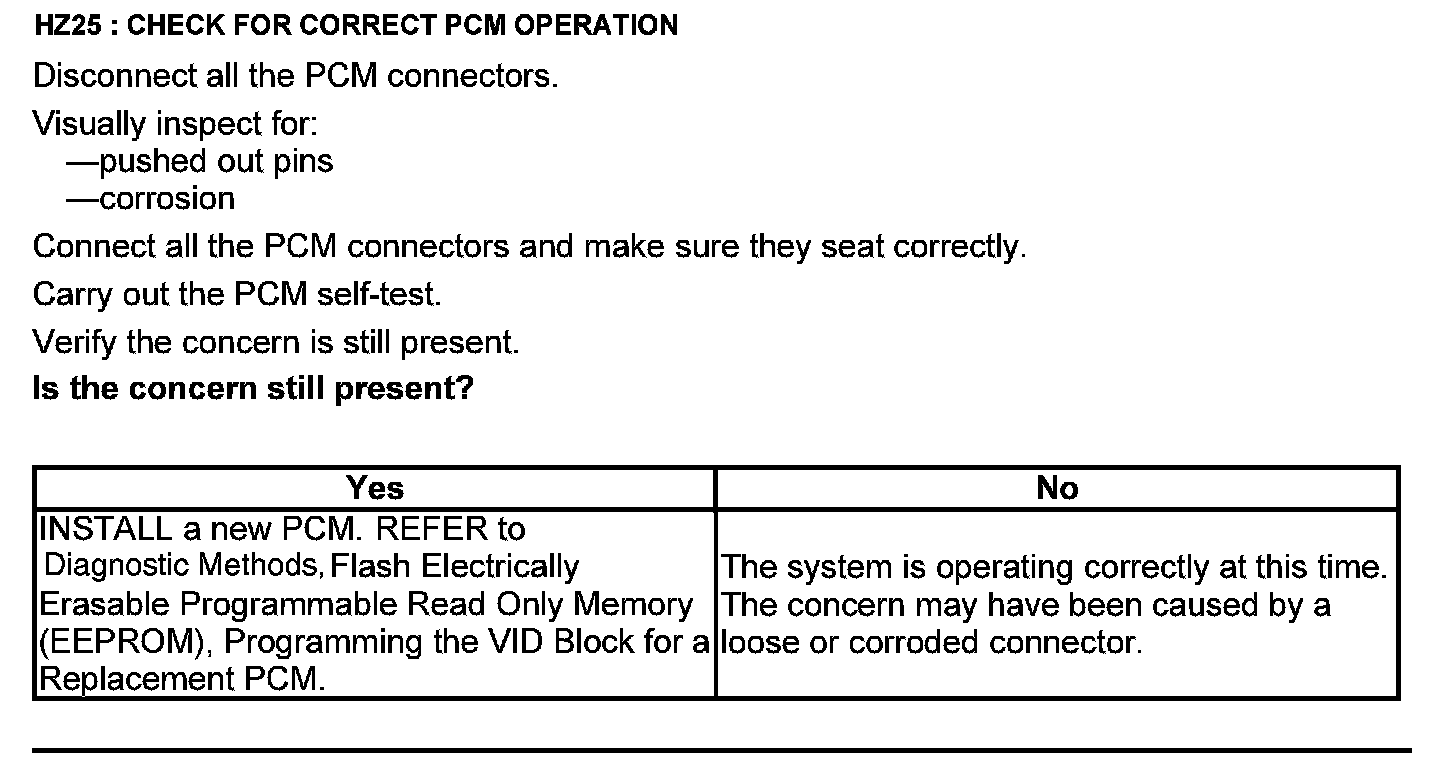

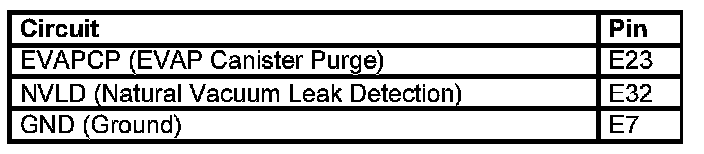

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
