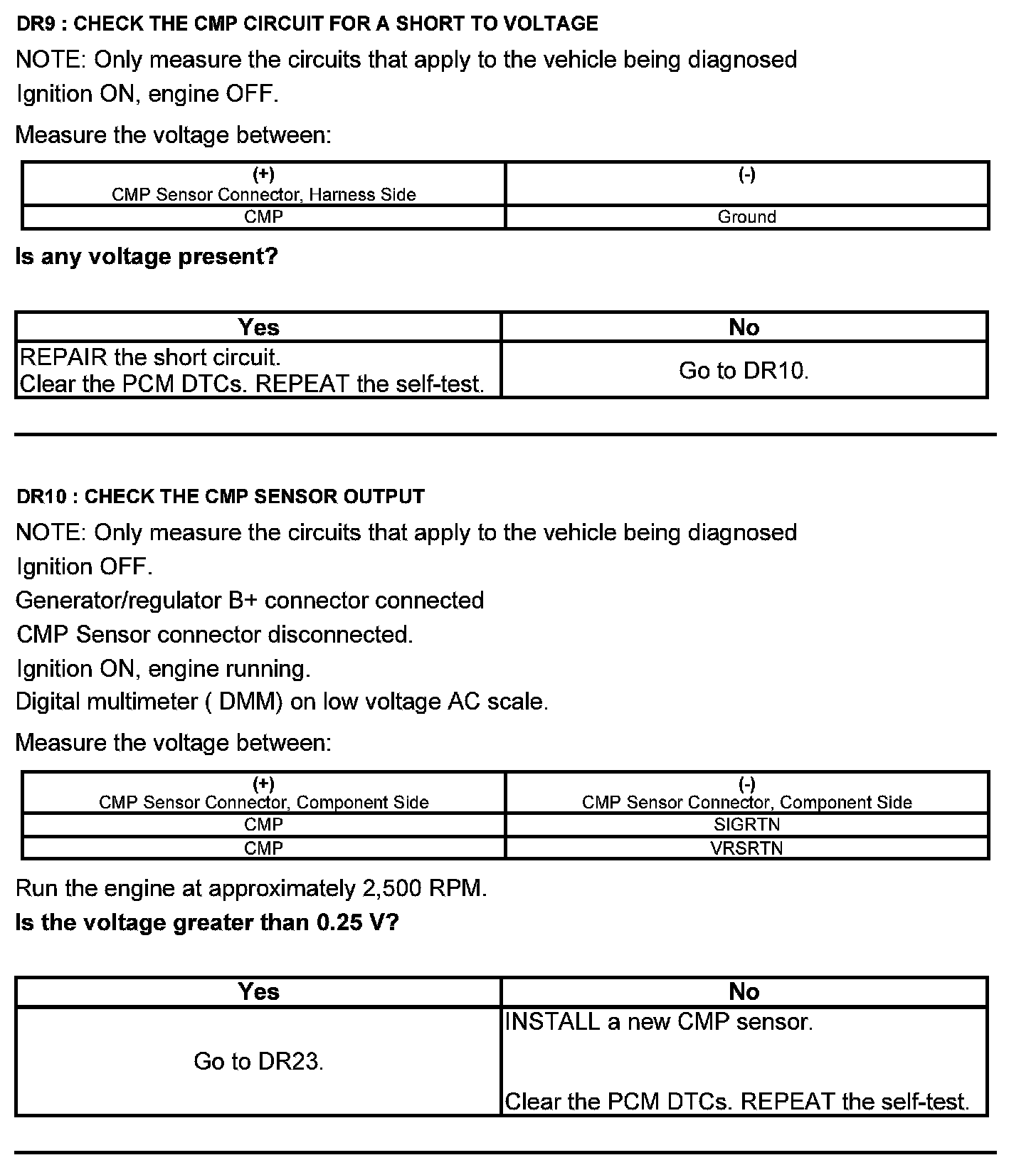

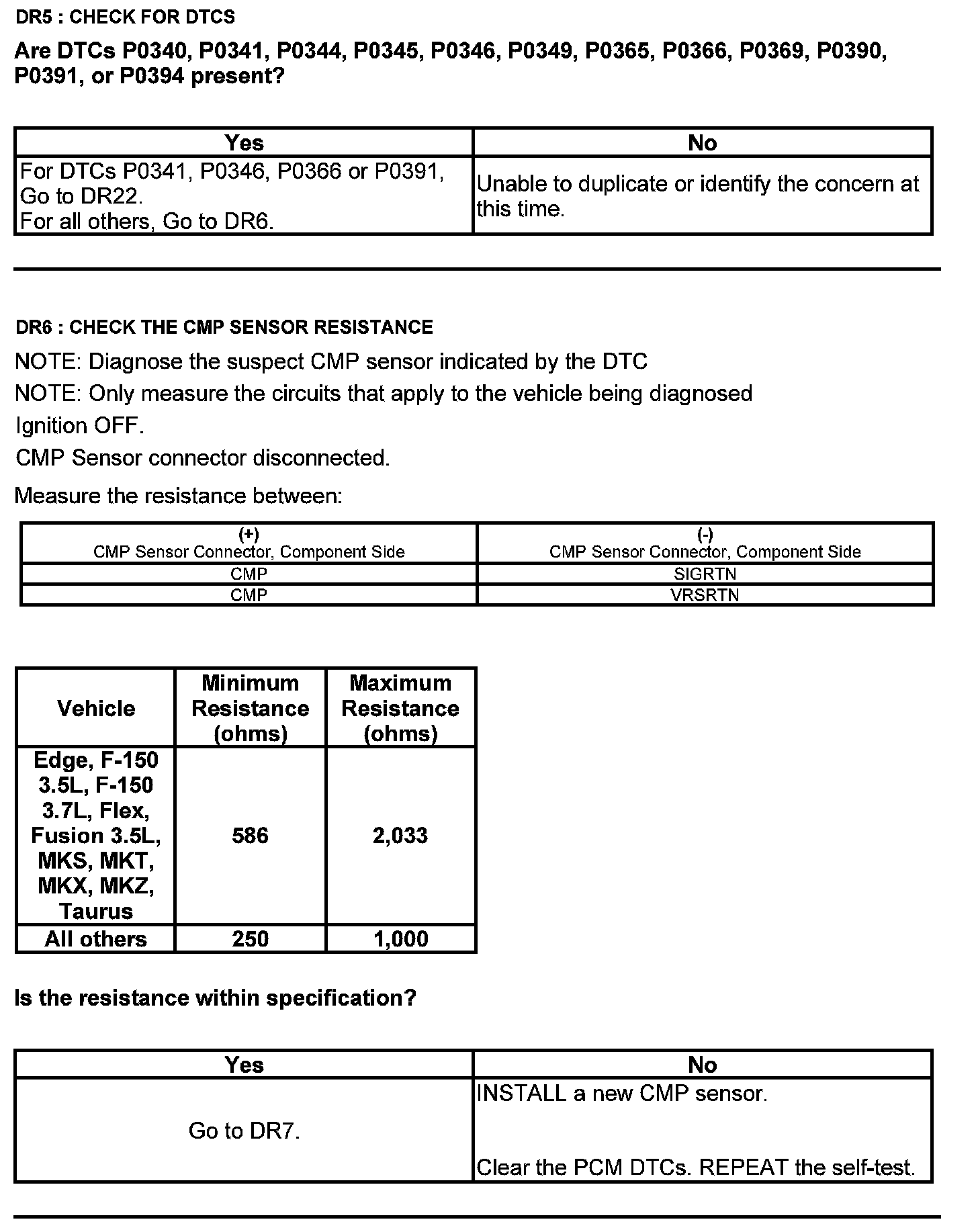

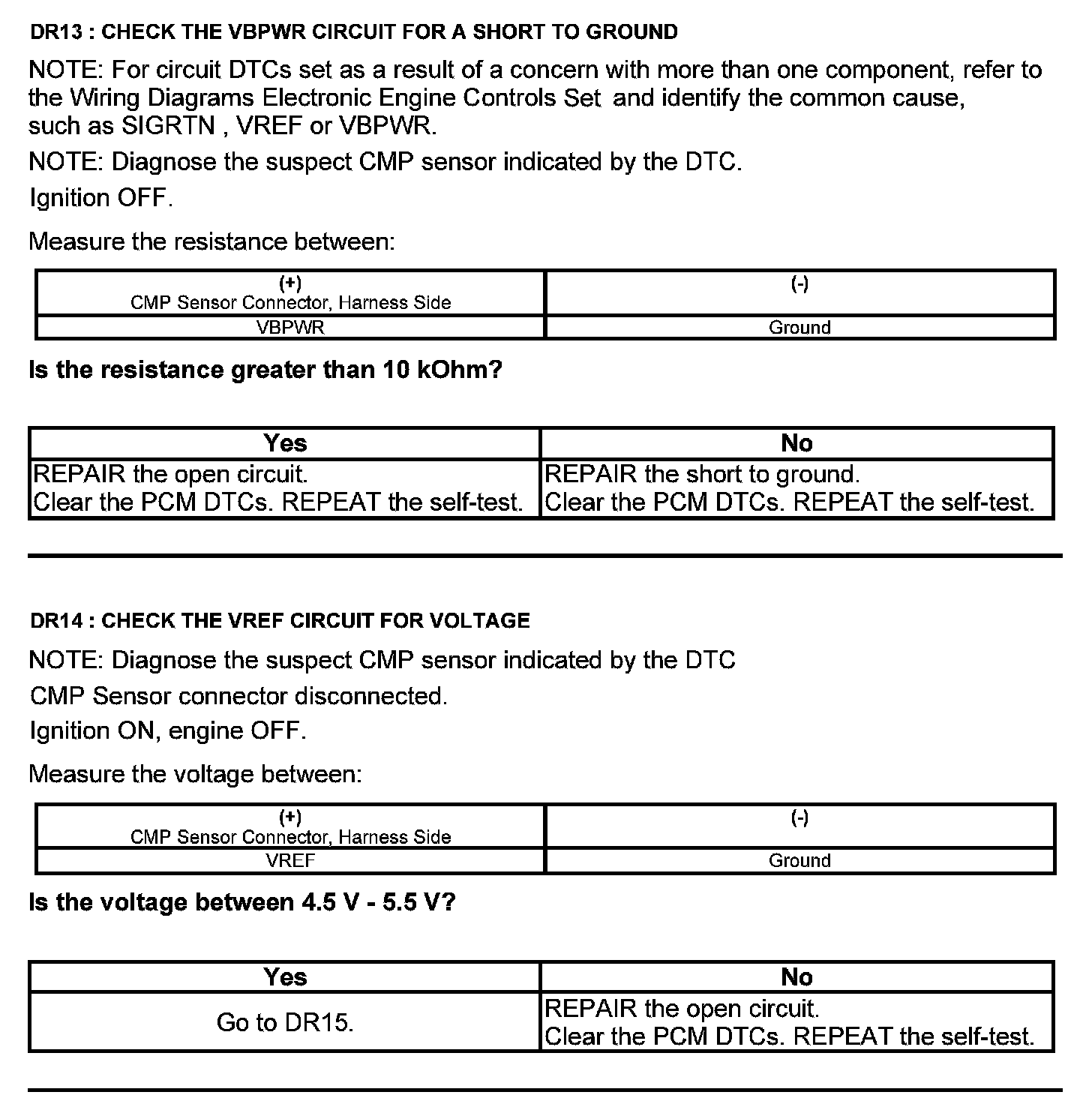

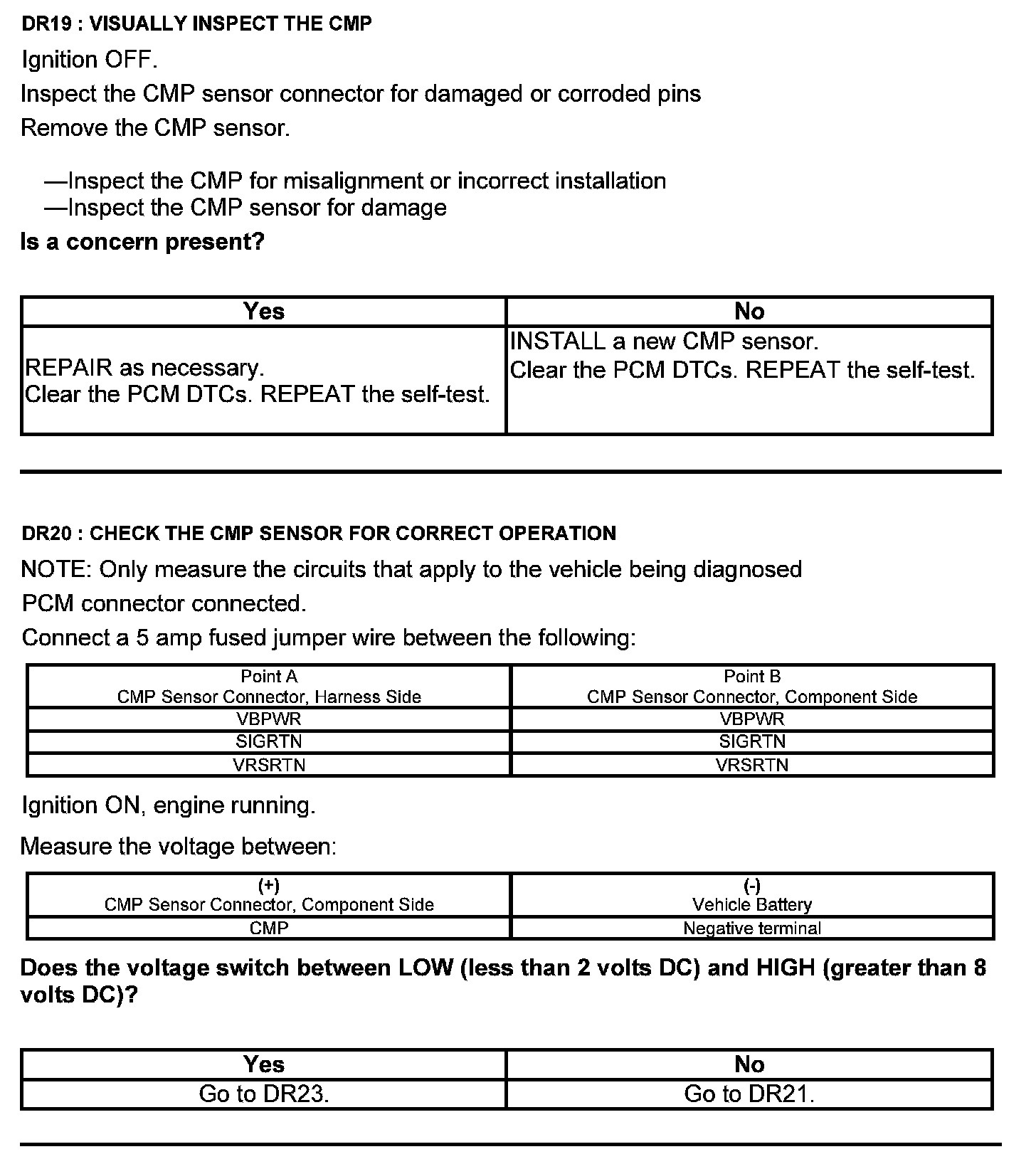

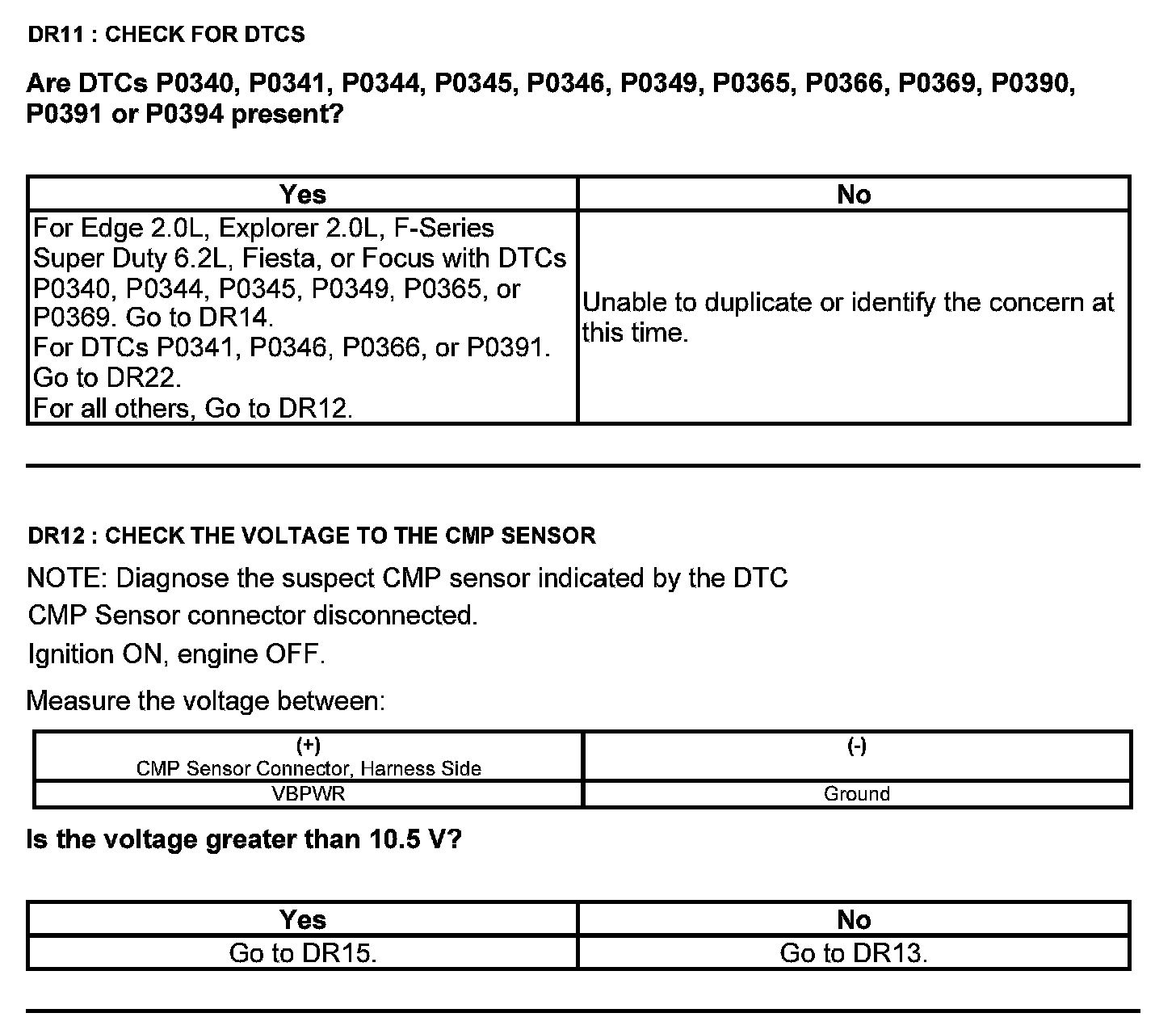

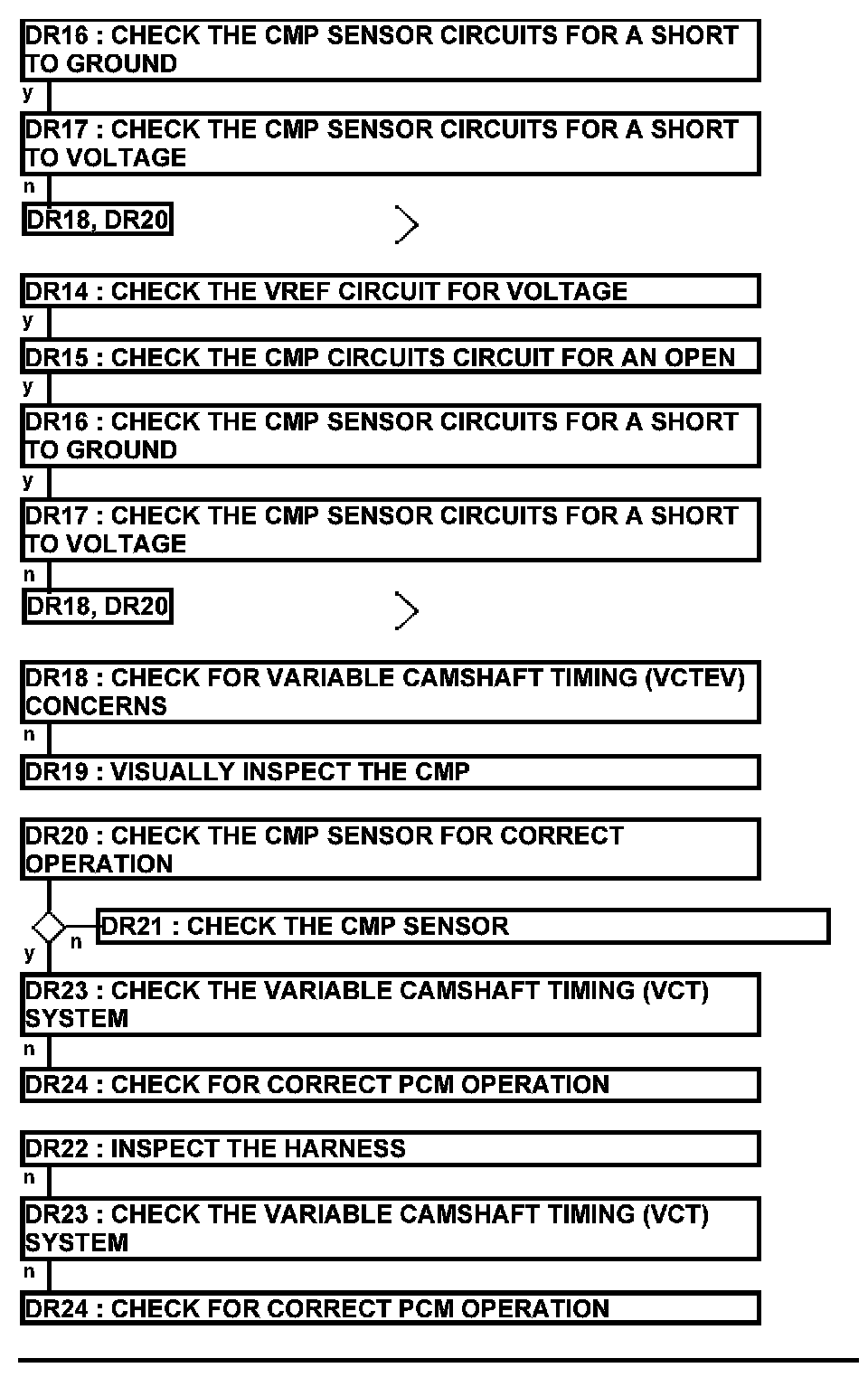

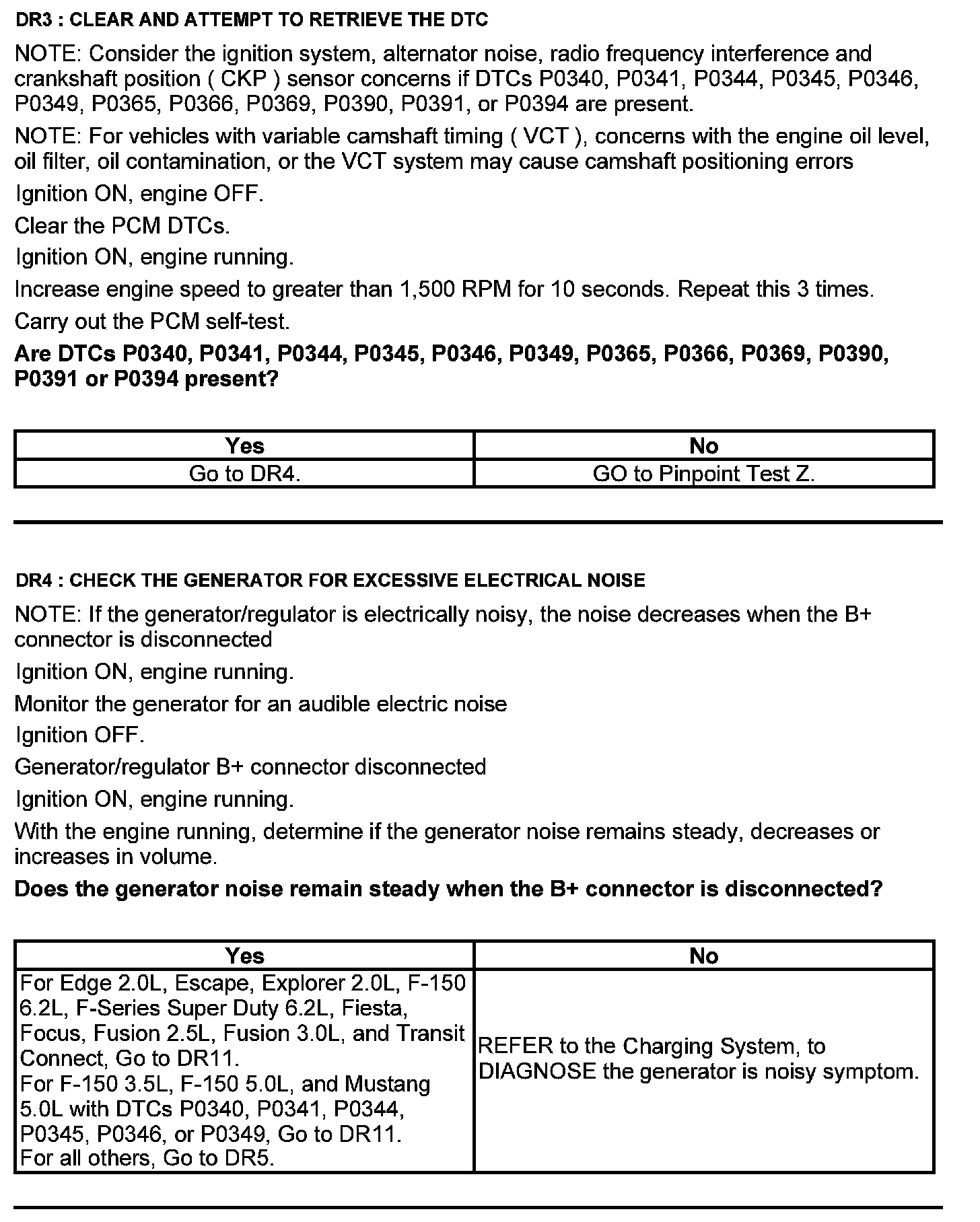

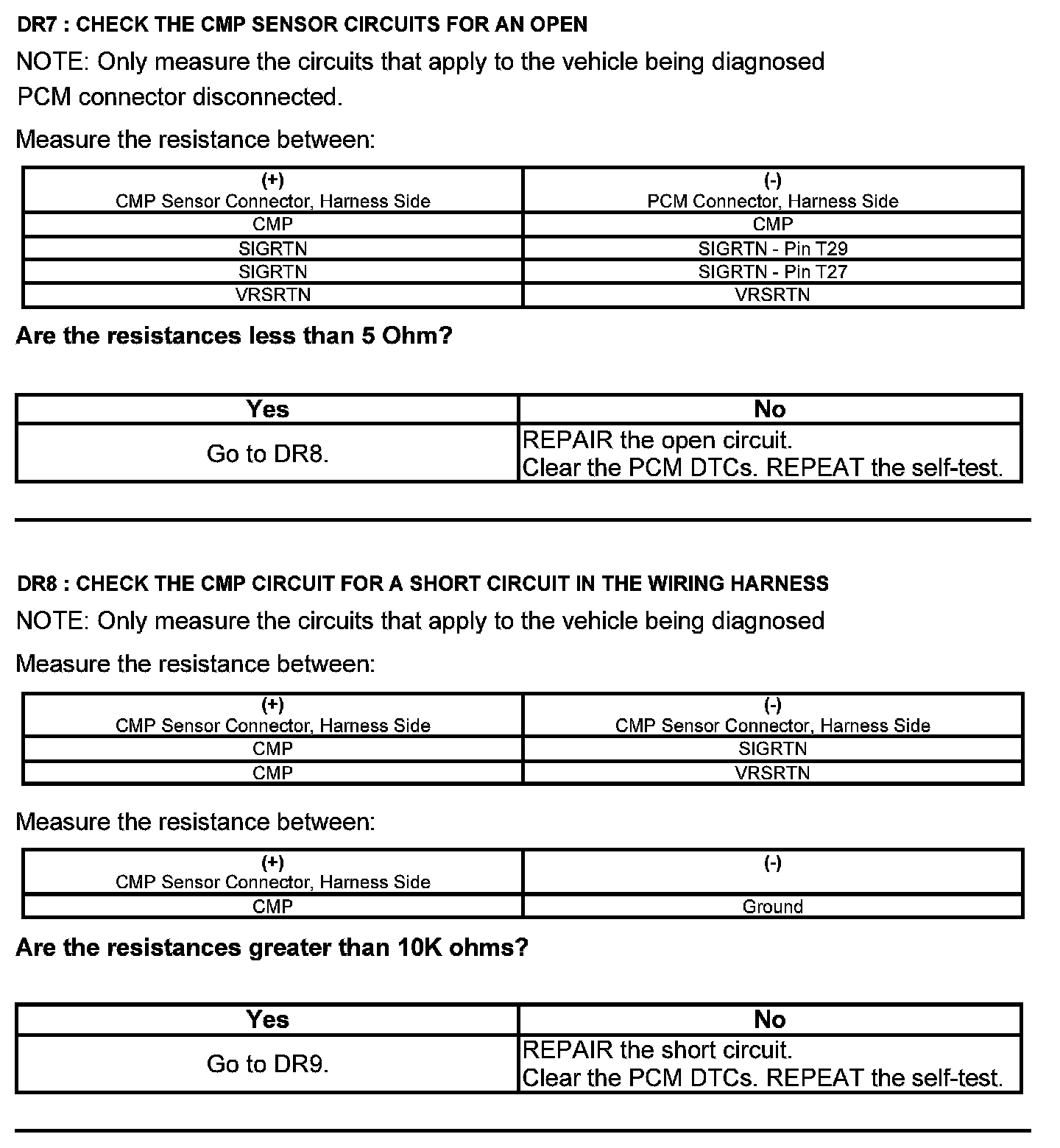

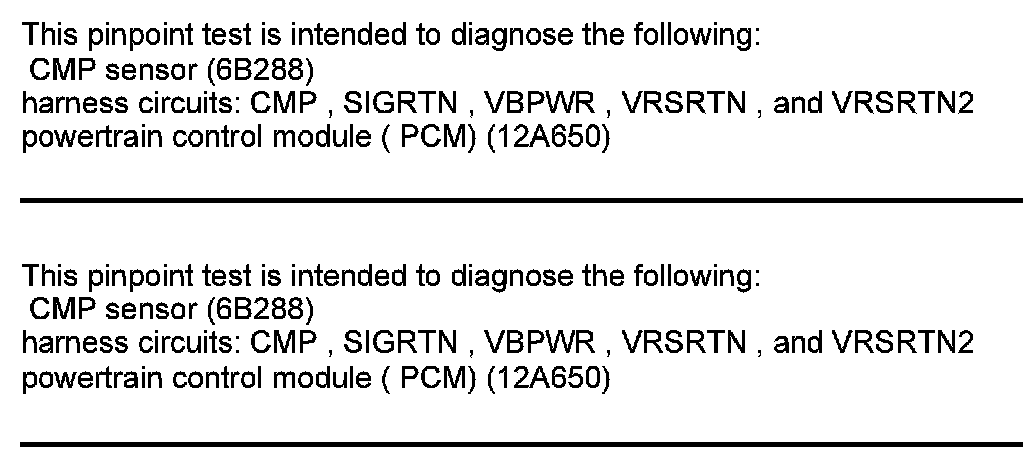

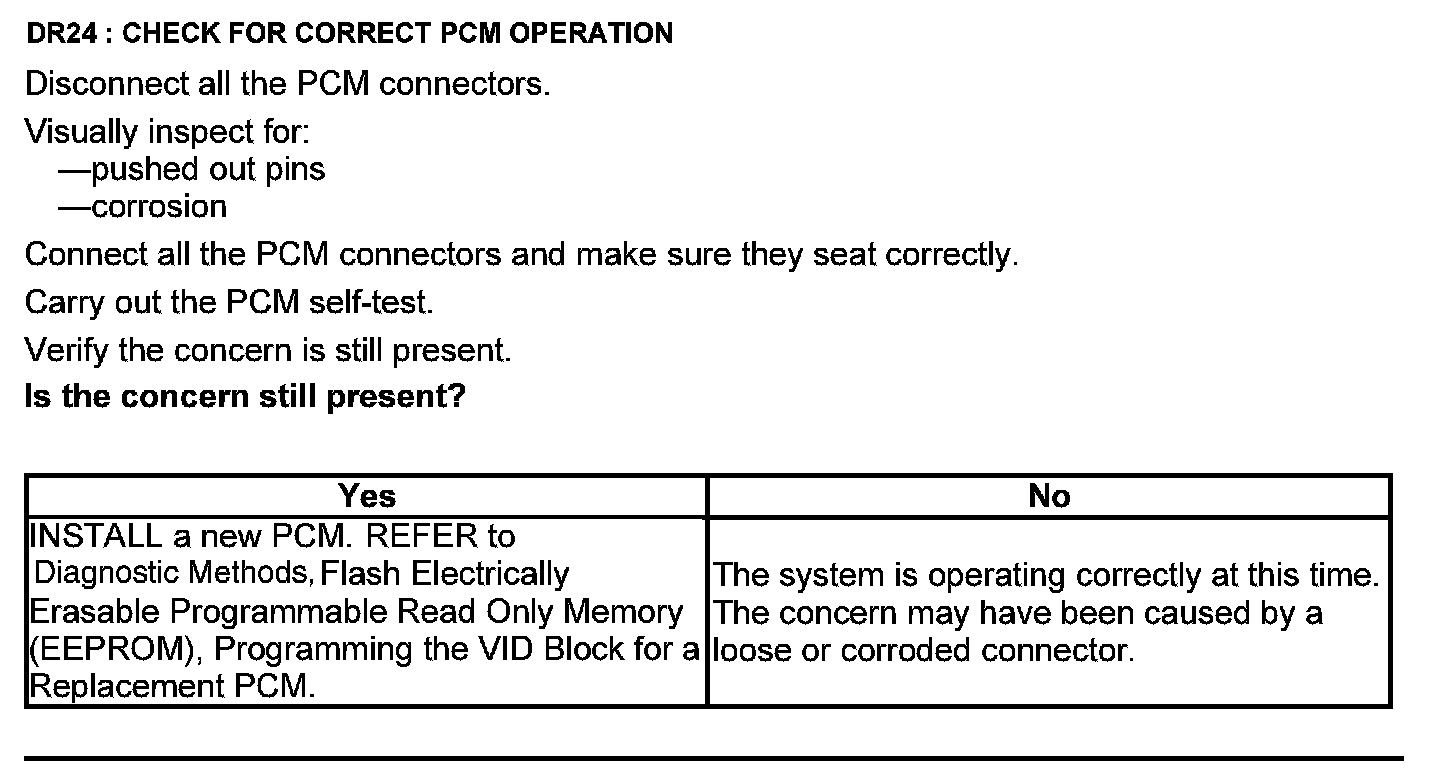

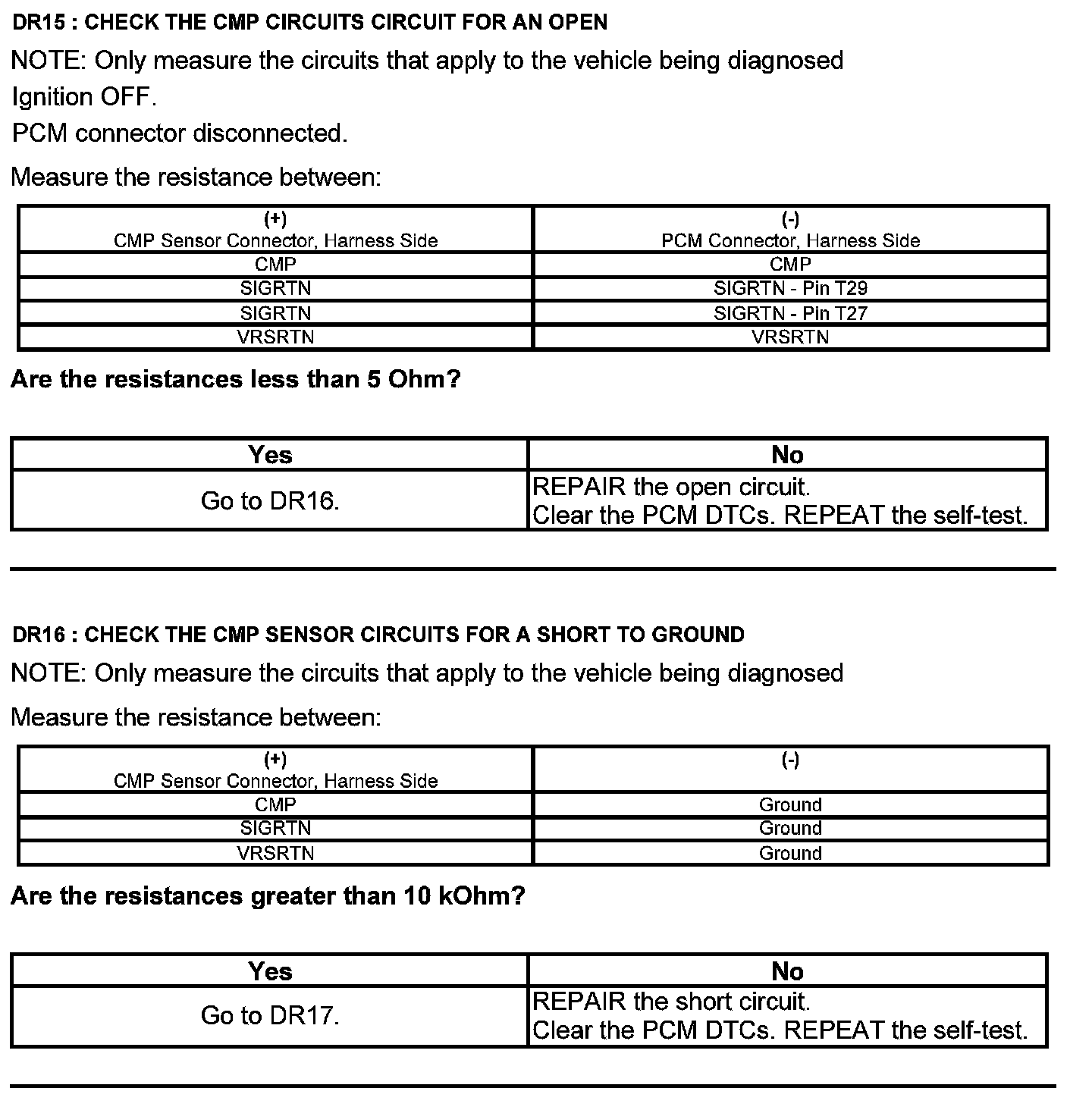

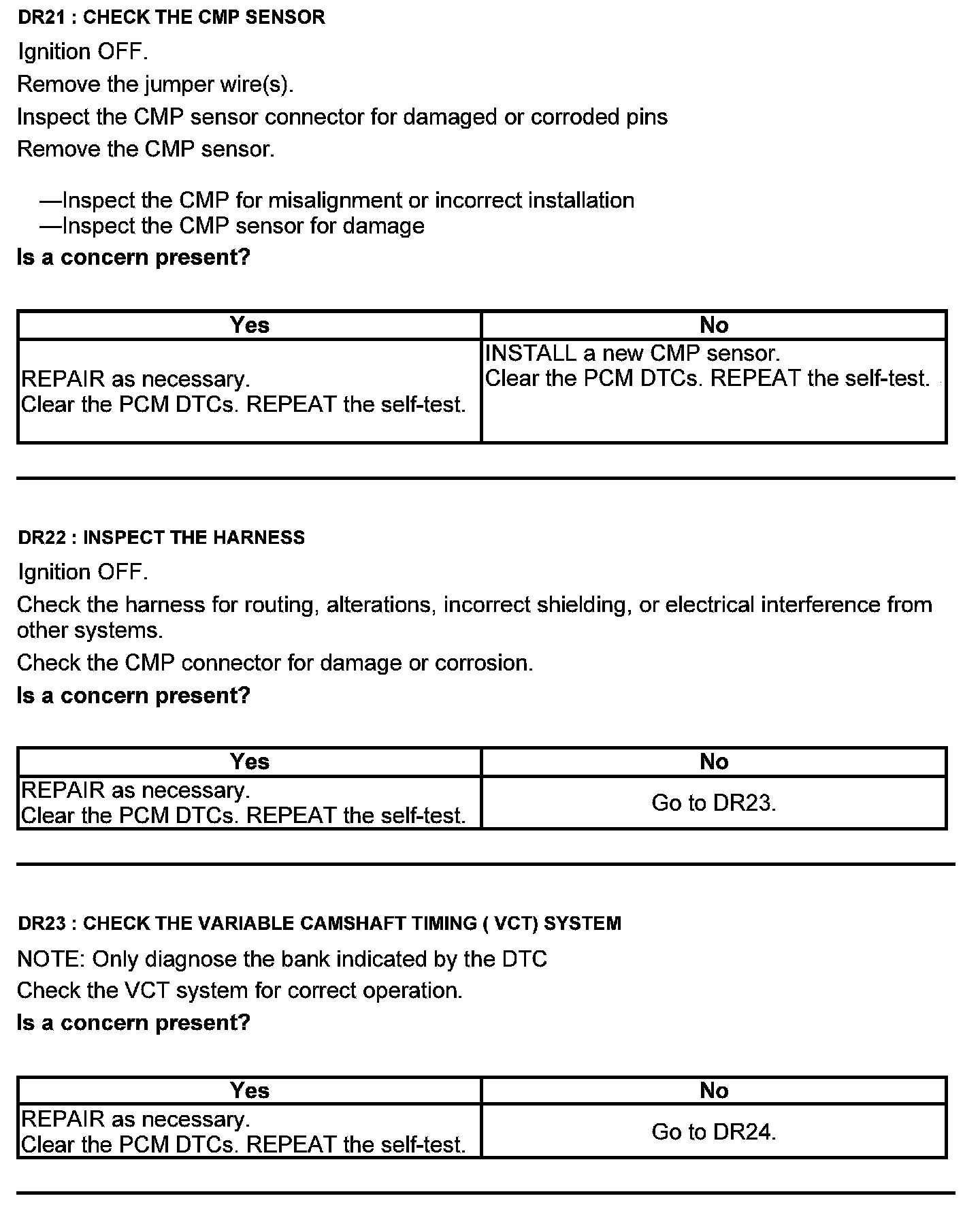

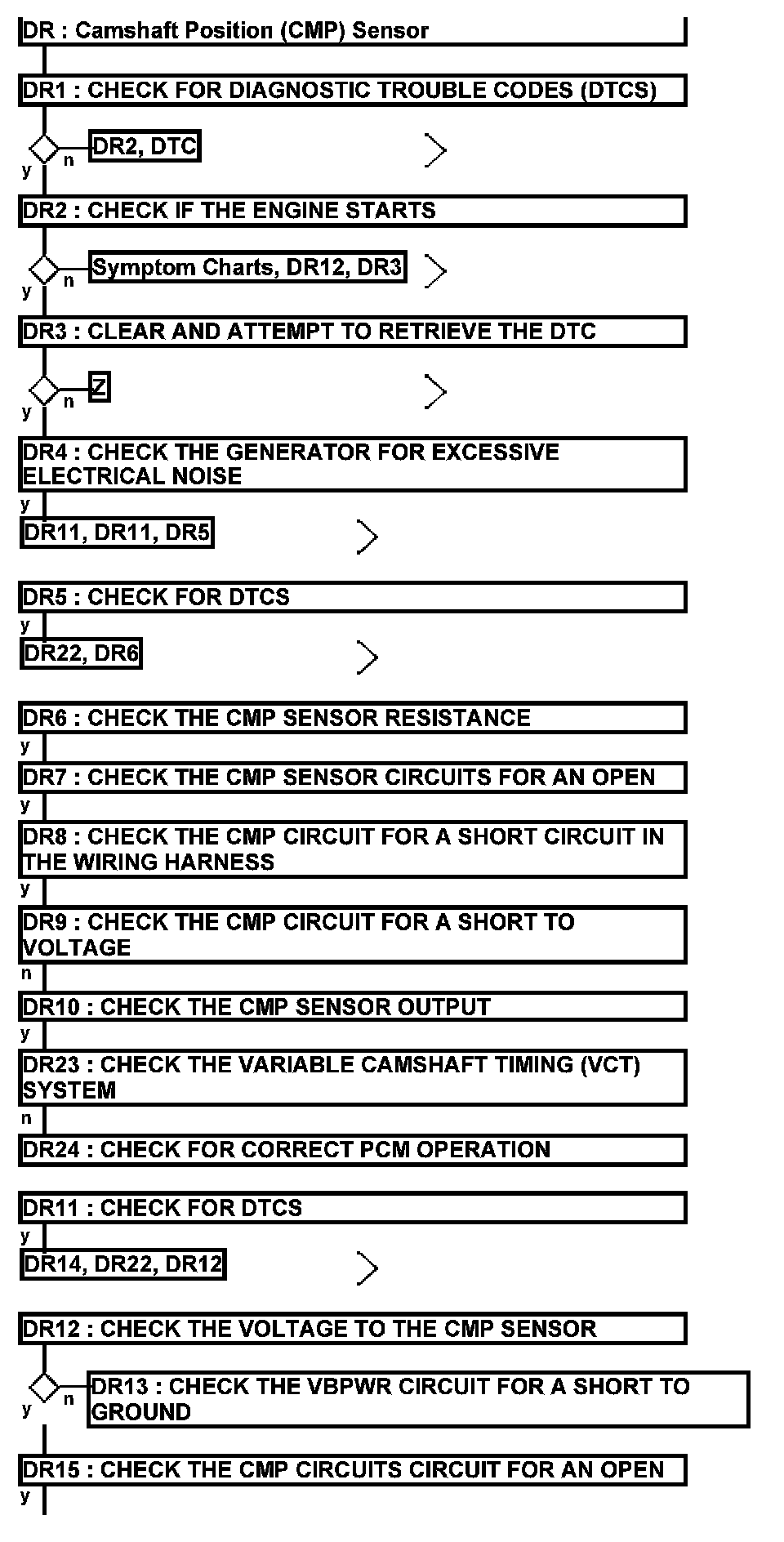

Test DR: Camshaft Position (CMP) Sensor



Camshaft Position (CMP) Sensor

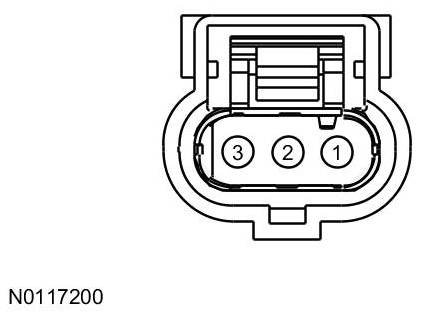

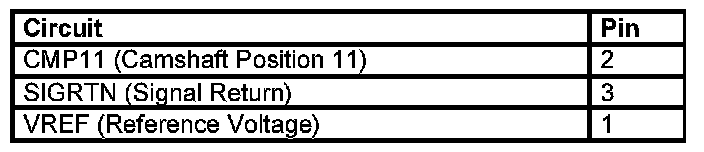

Camshaft Position 11 (CMP11) Sensor Connector






Harness Side

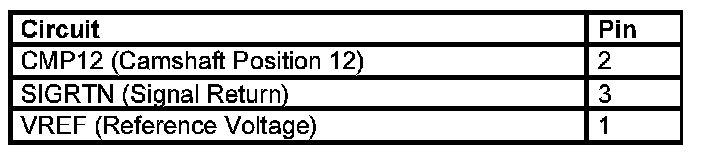

Camshaft Position 12 (CMP12) Sensor Connector





Harness Side

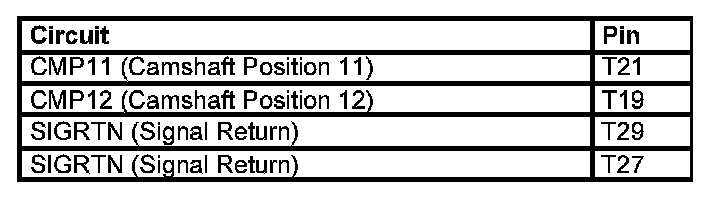

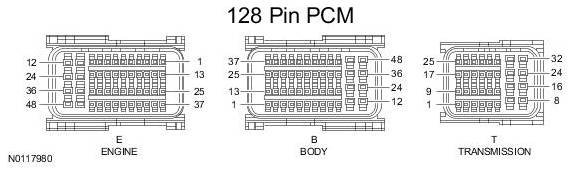

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.





Harness Side
