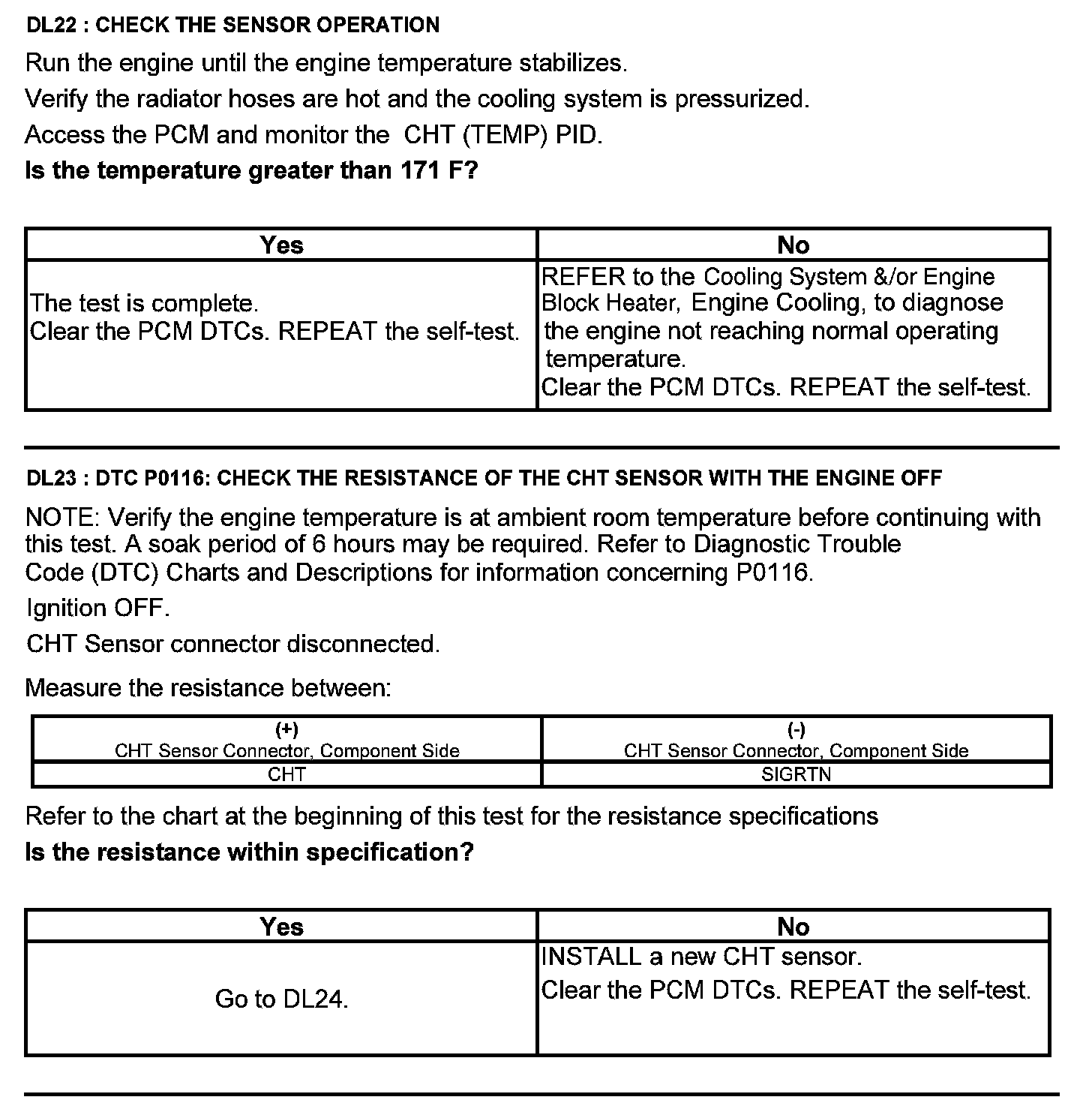

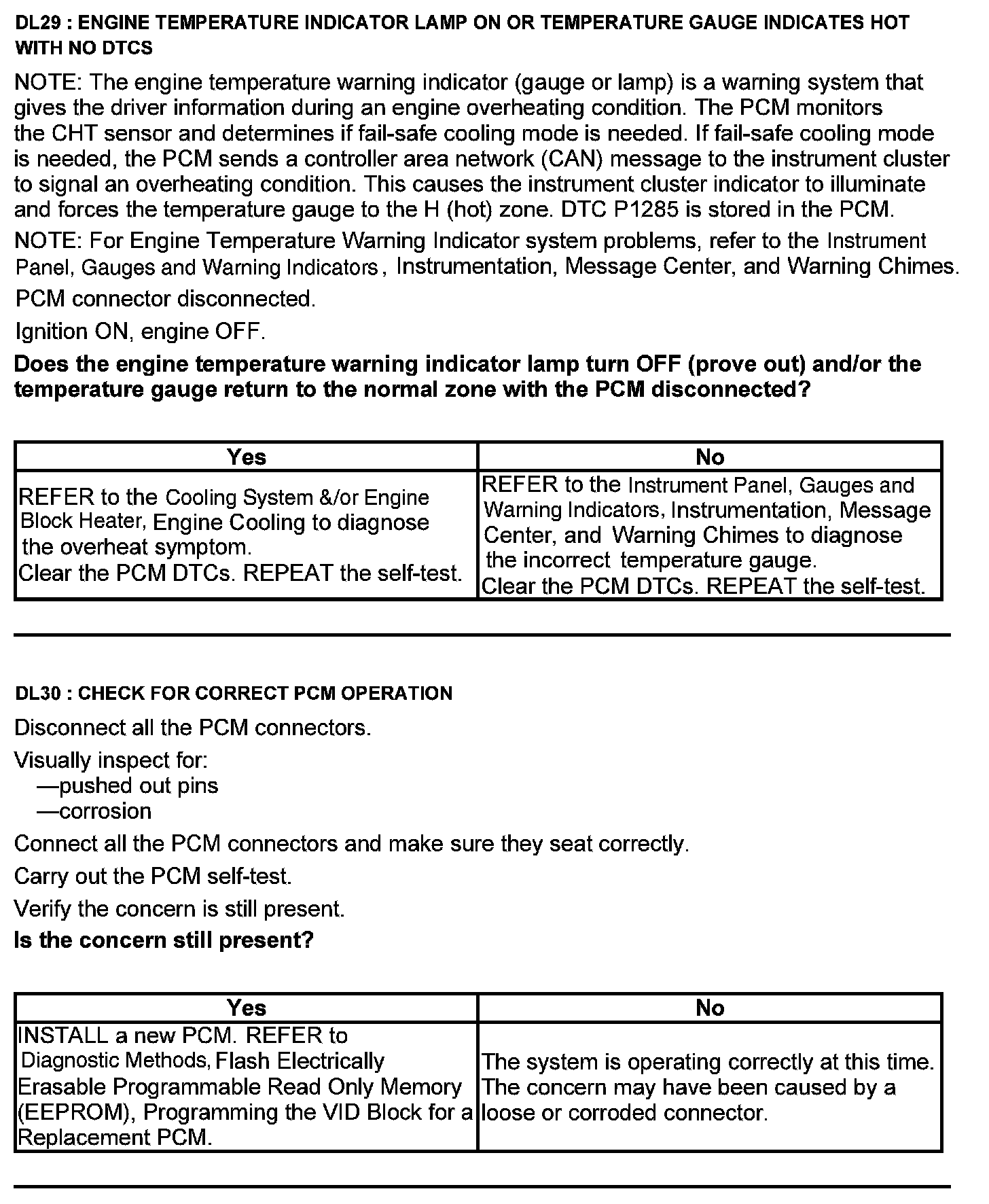

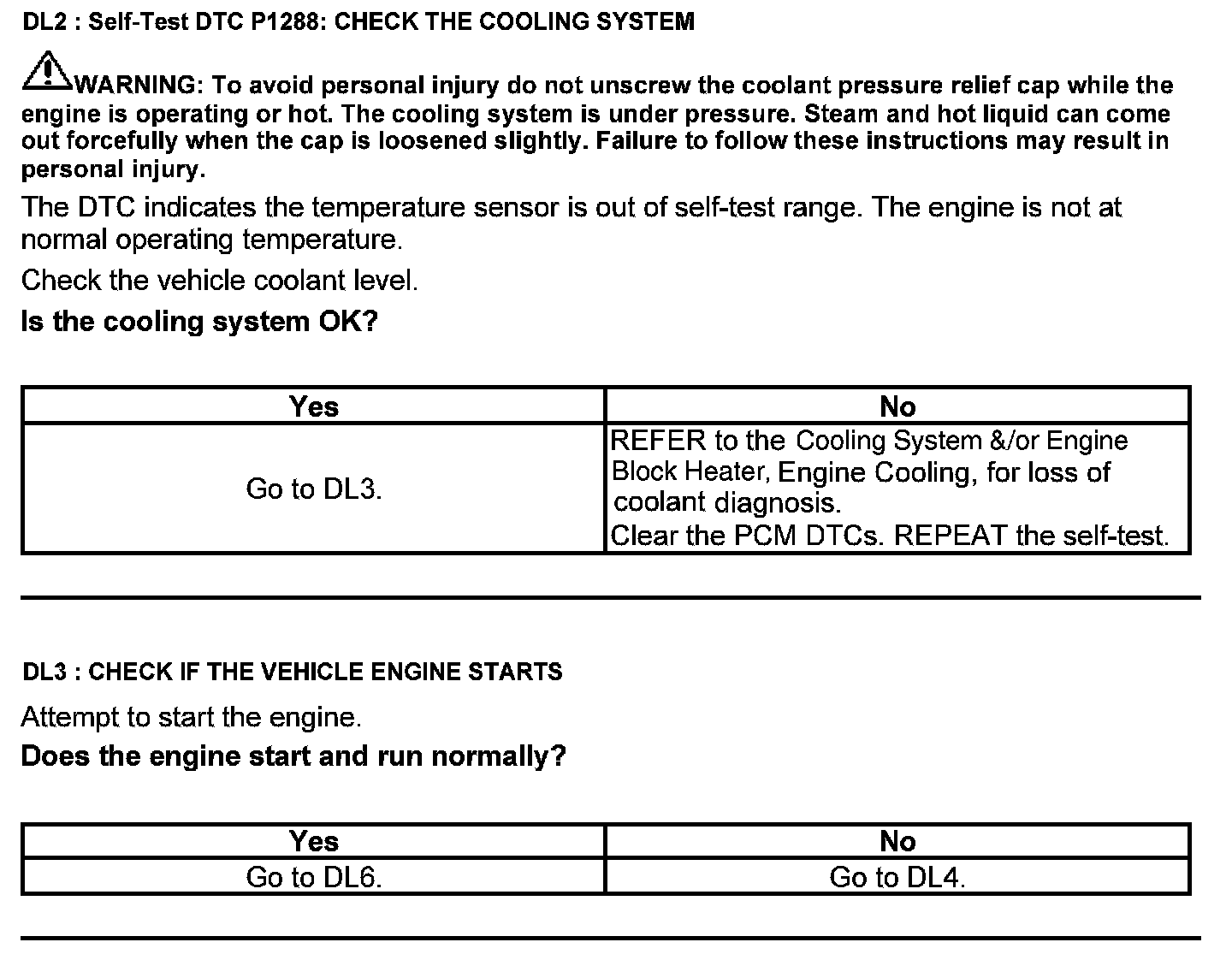

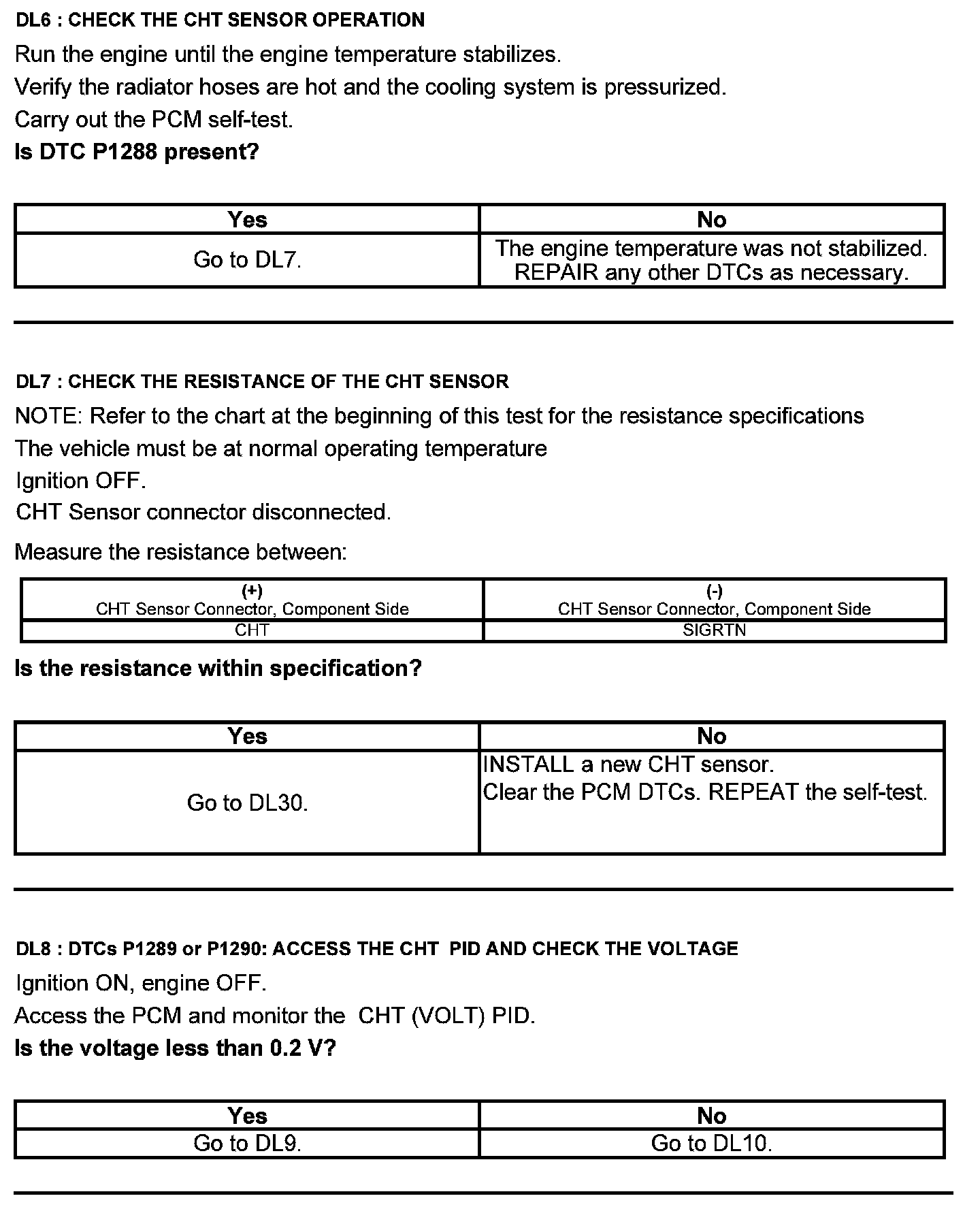

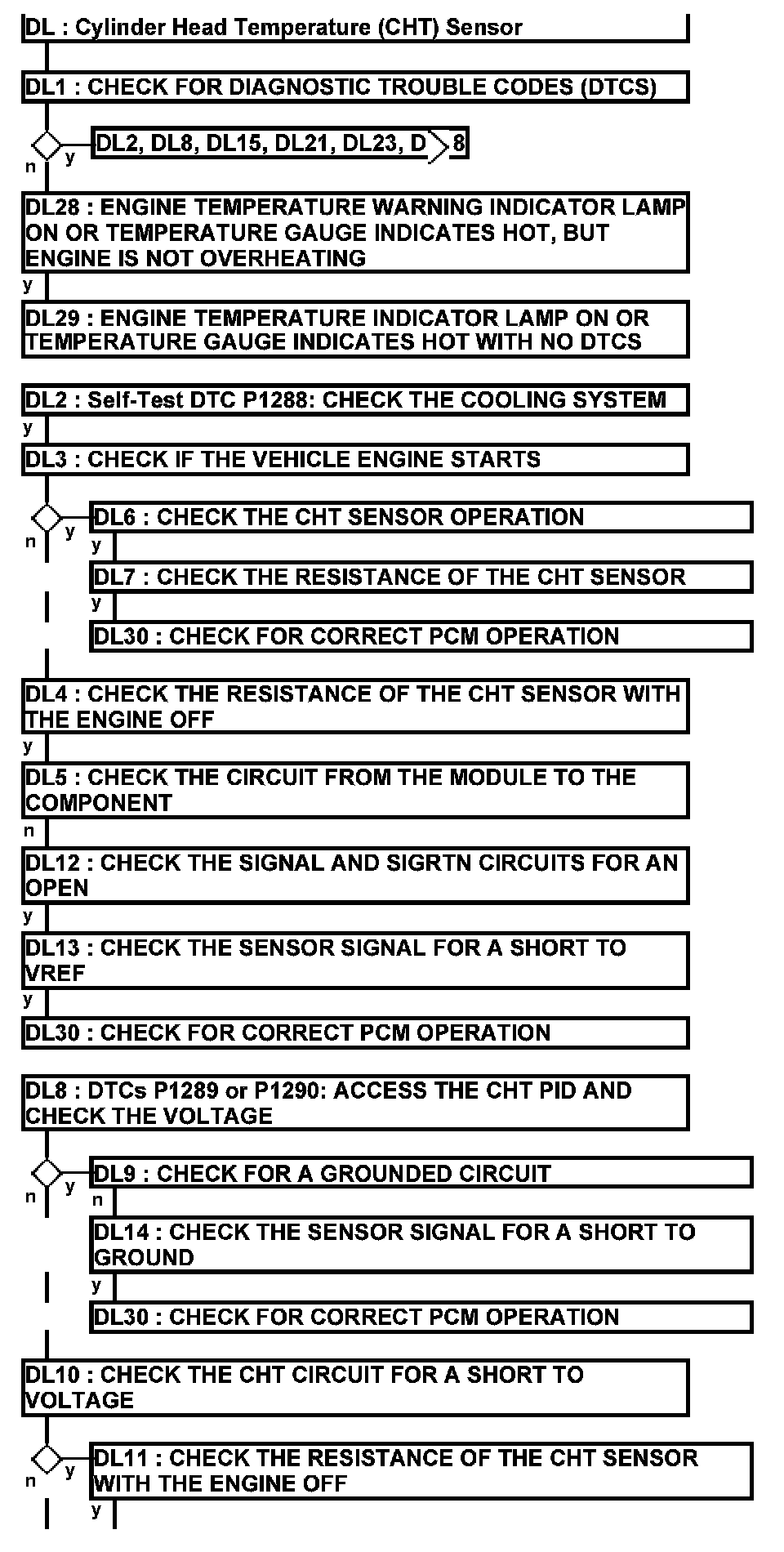

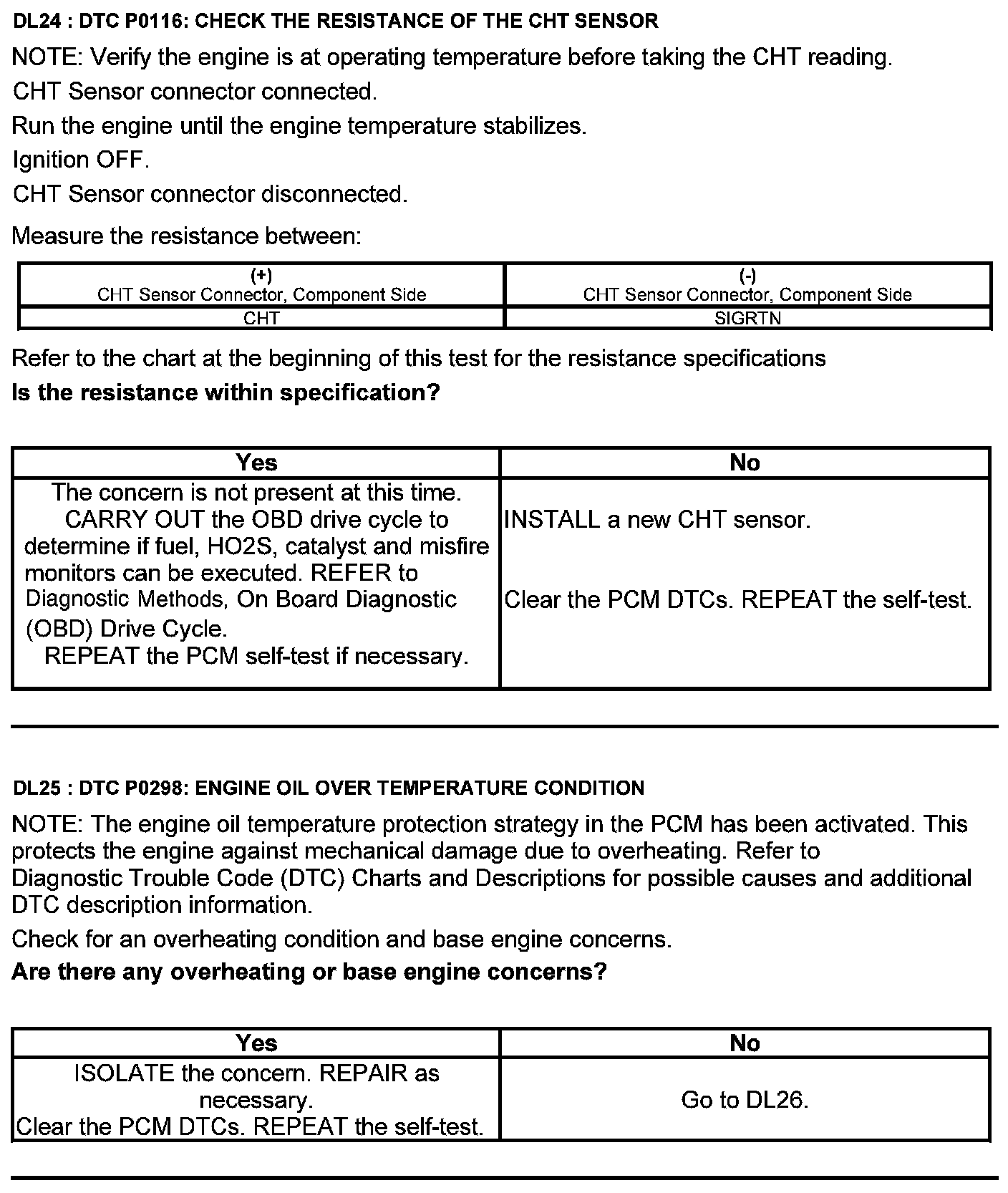

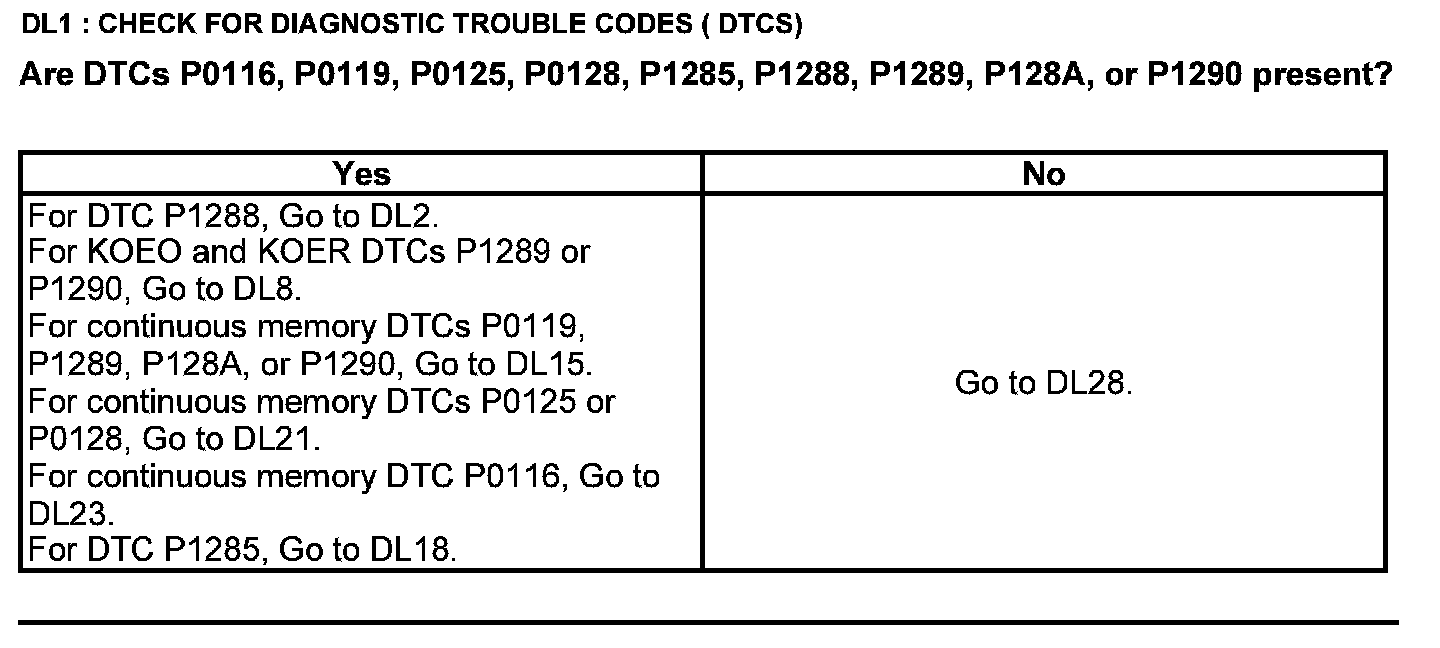

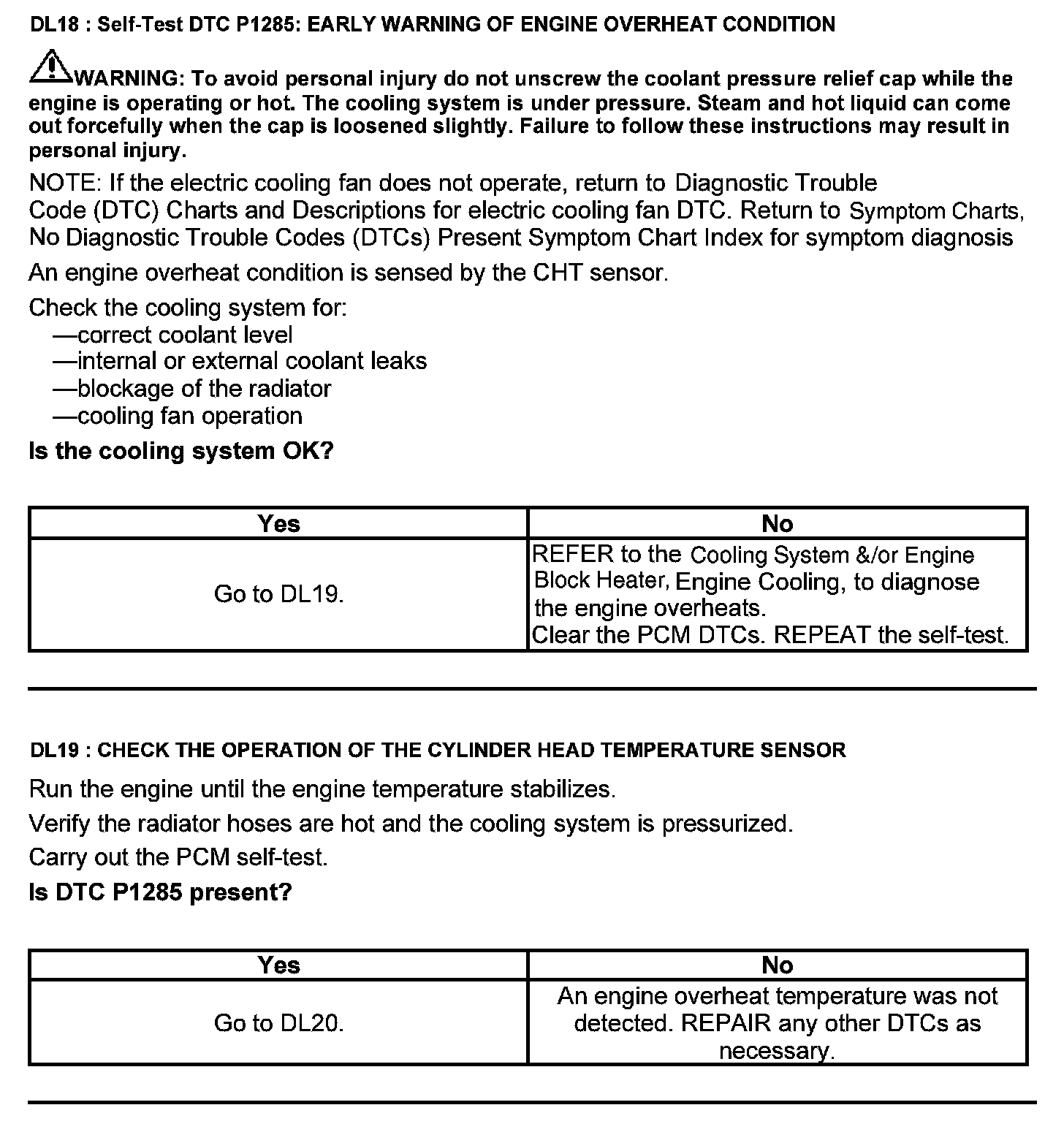

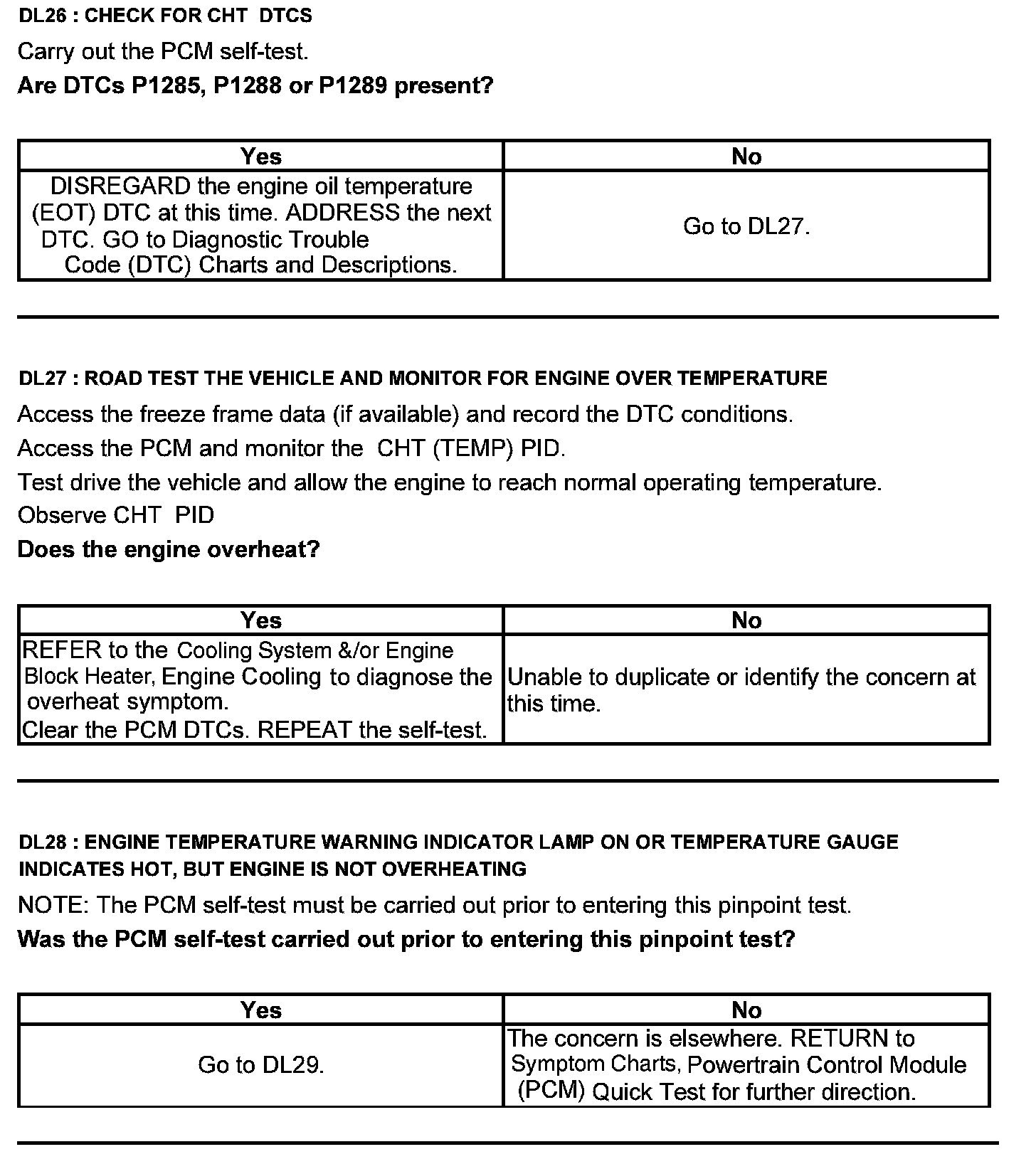

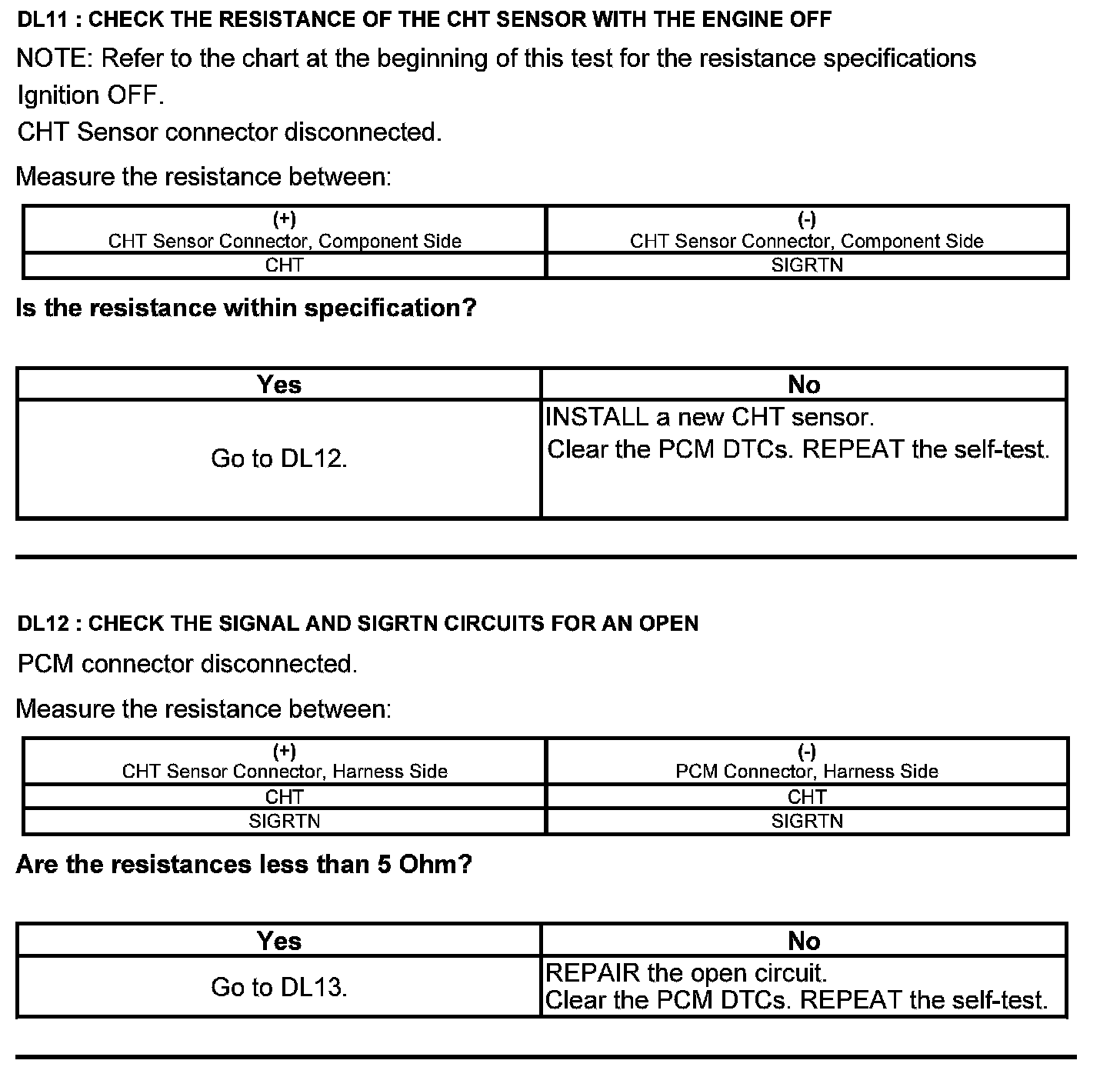

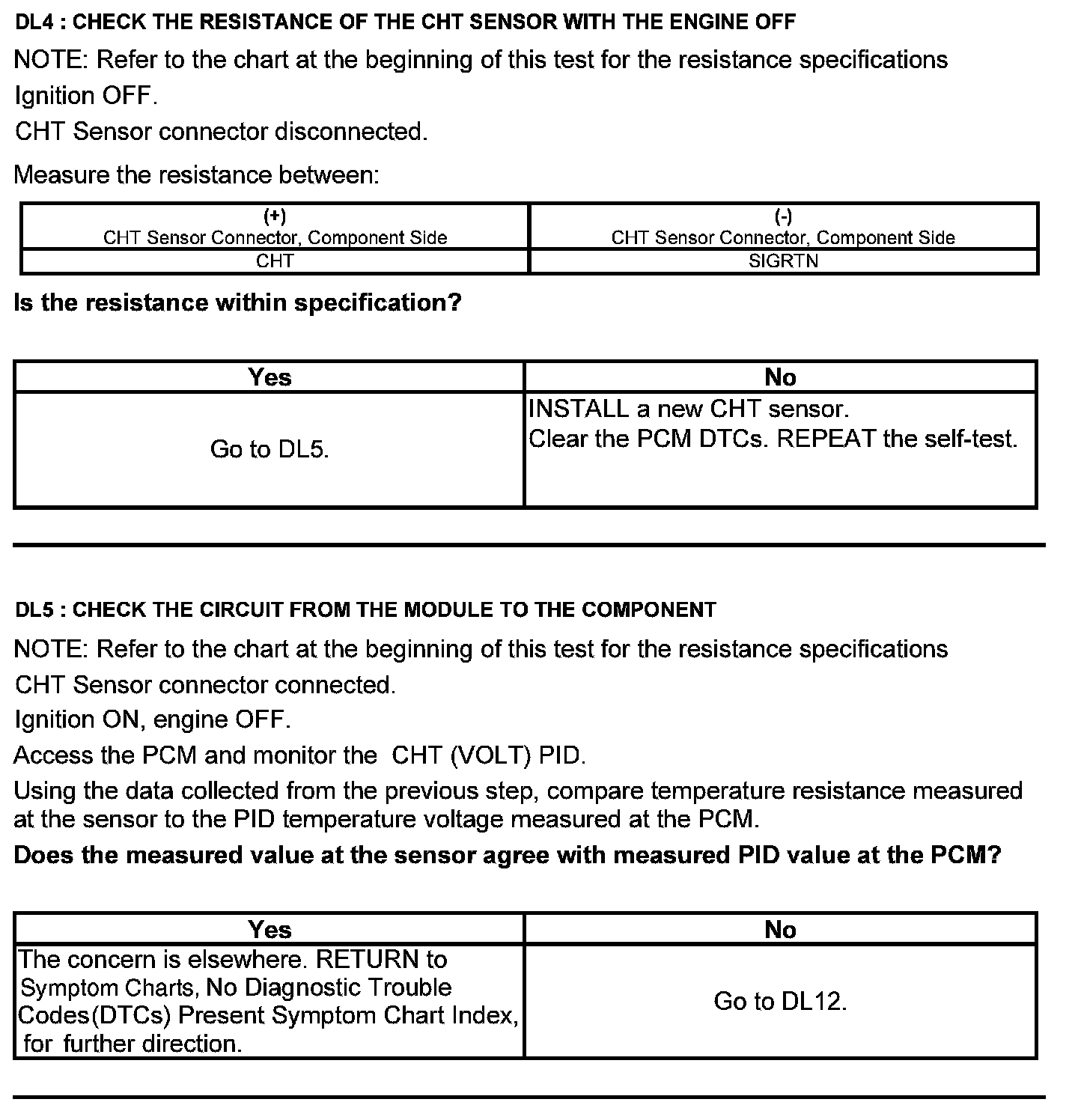

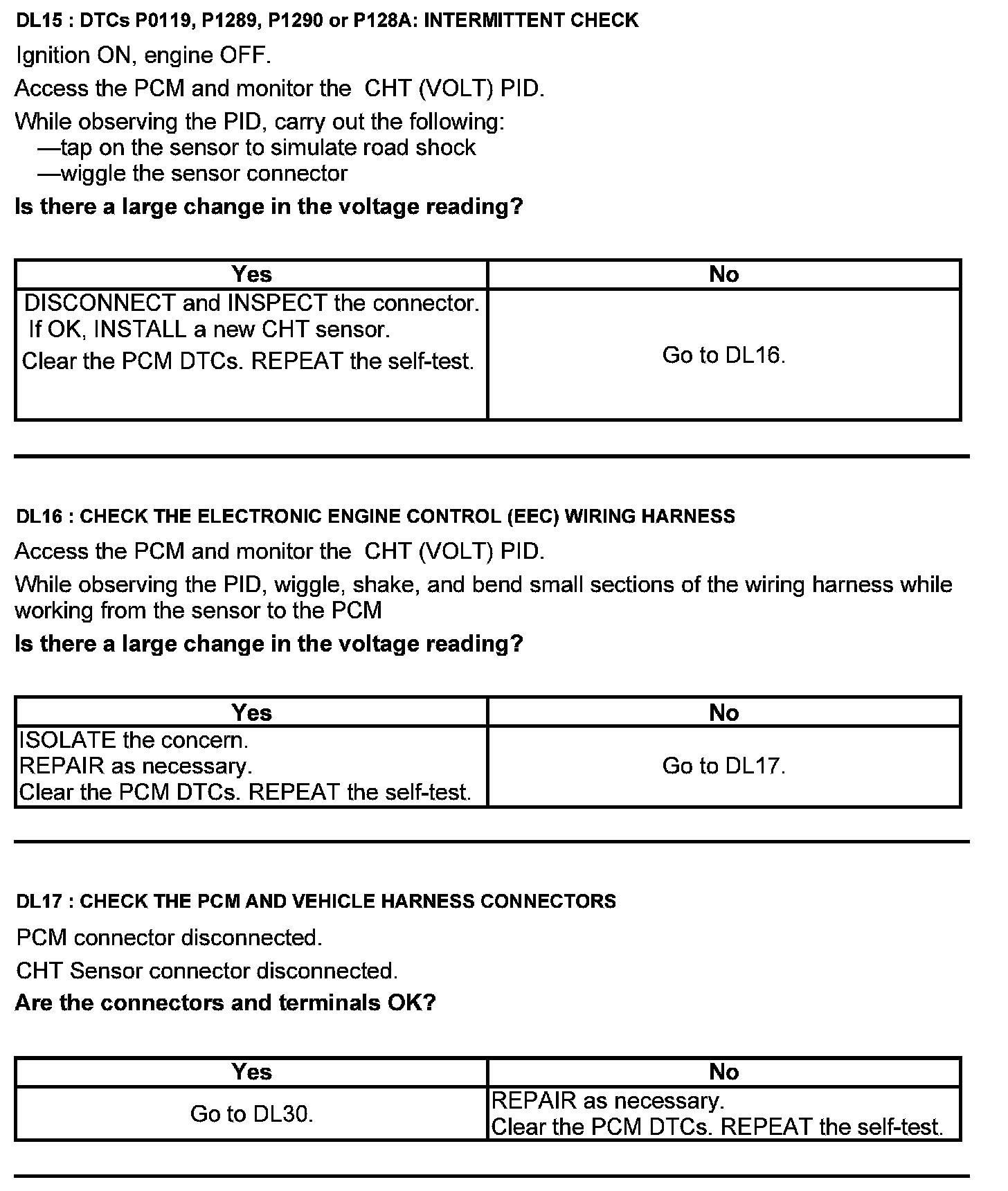

Test DL: Cylinder Head Temperature (CHT) Sensor



Cylinder Head Temperature (CHT) Sensor

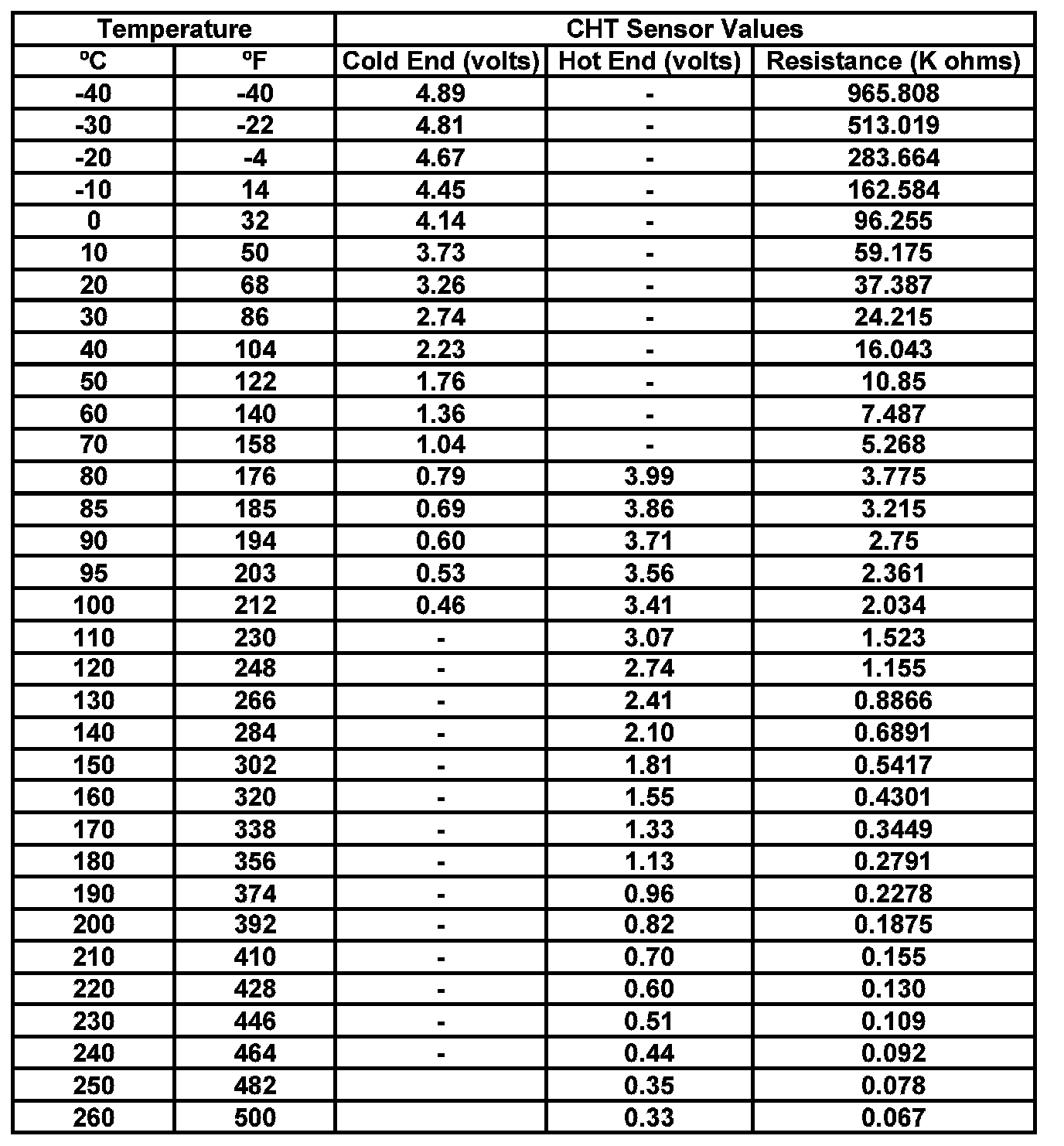

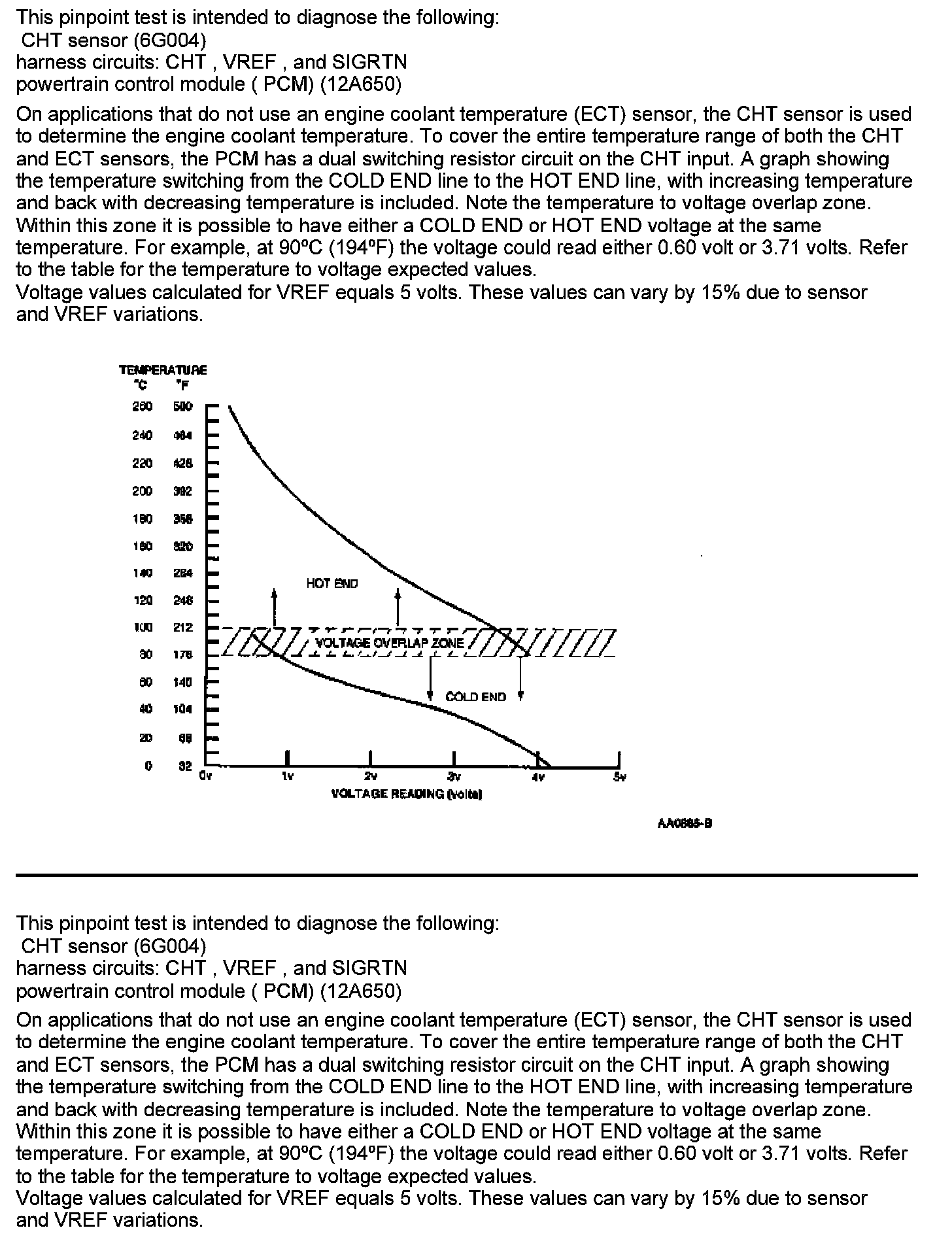

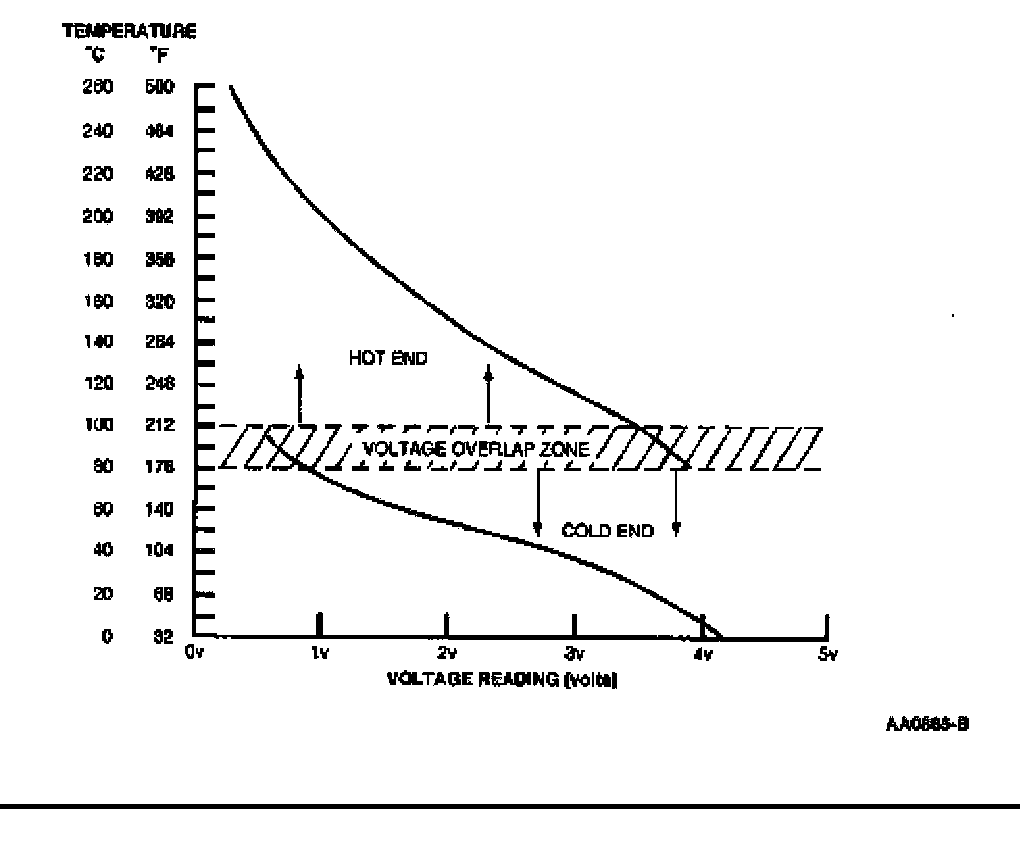

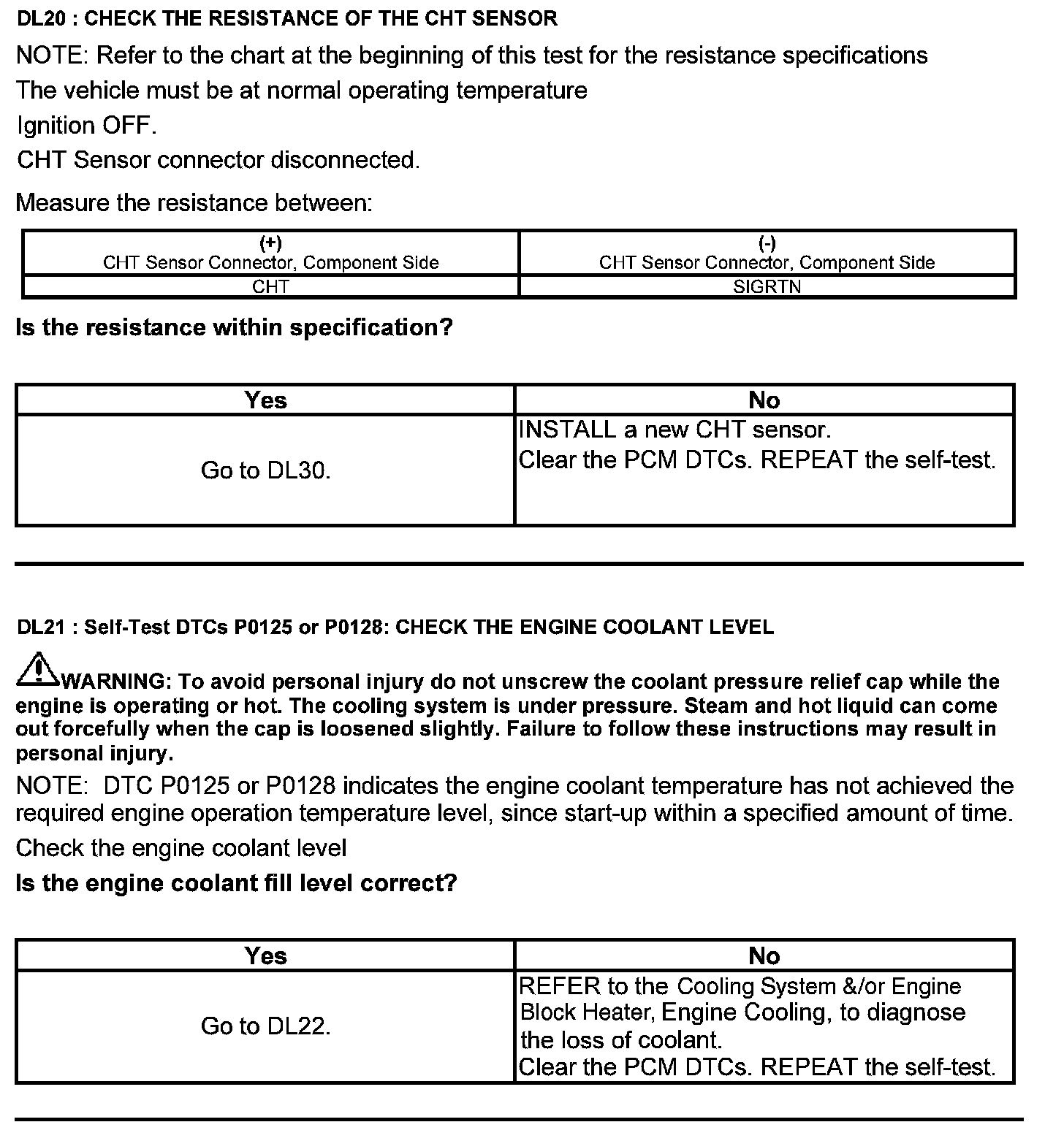

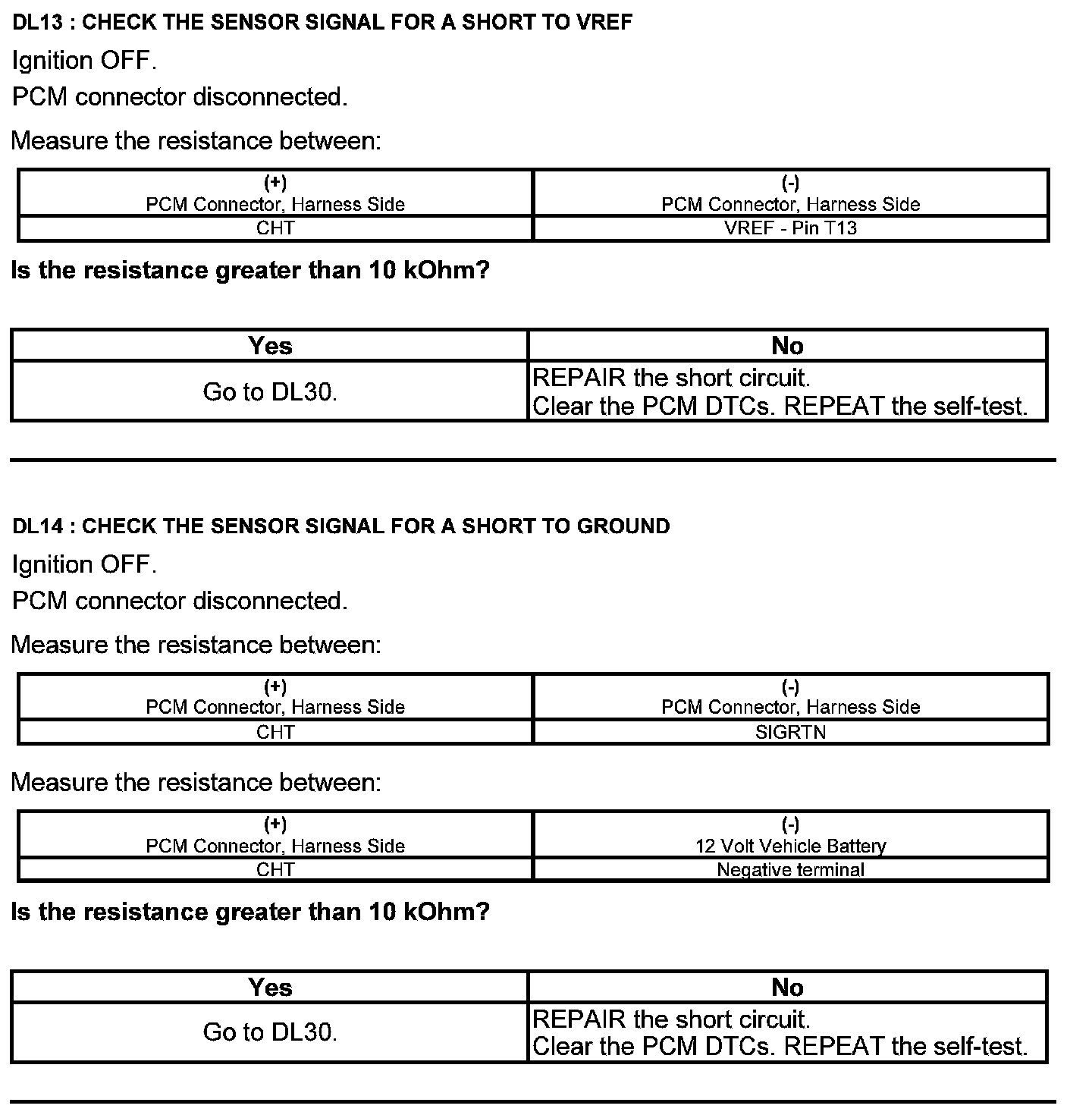

CYLINDER HEAD TEMPERATURE SENSOR EXPECTED VALUES

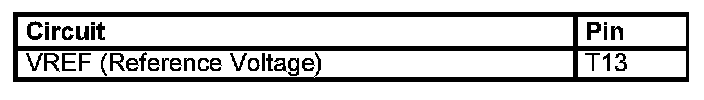

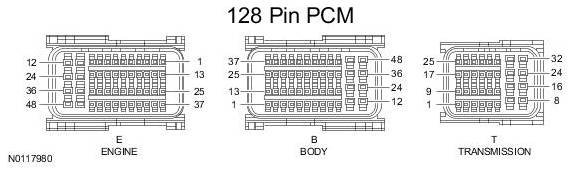

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
