Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Locations >> Splices

Splices

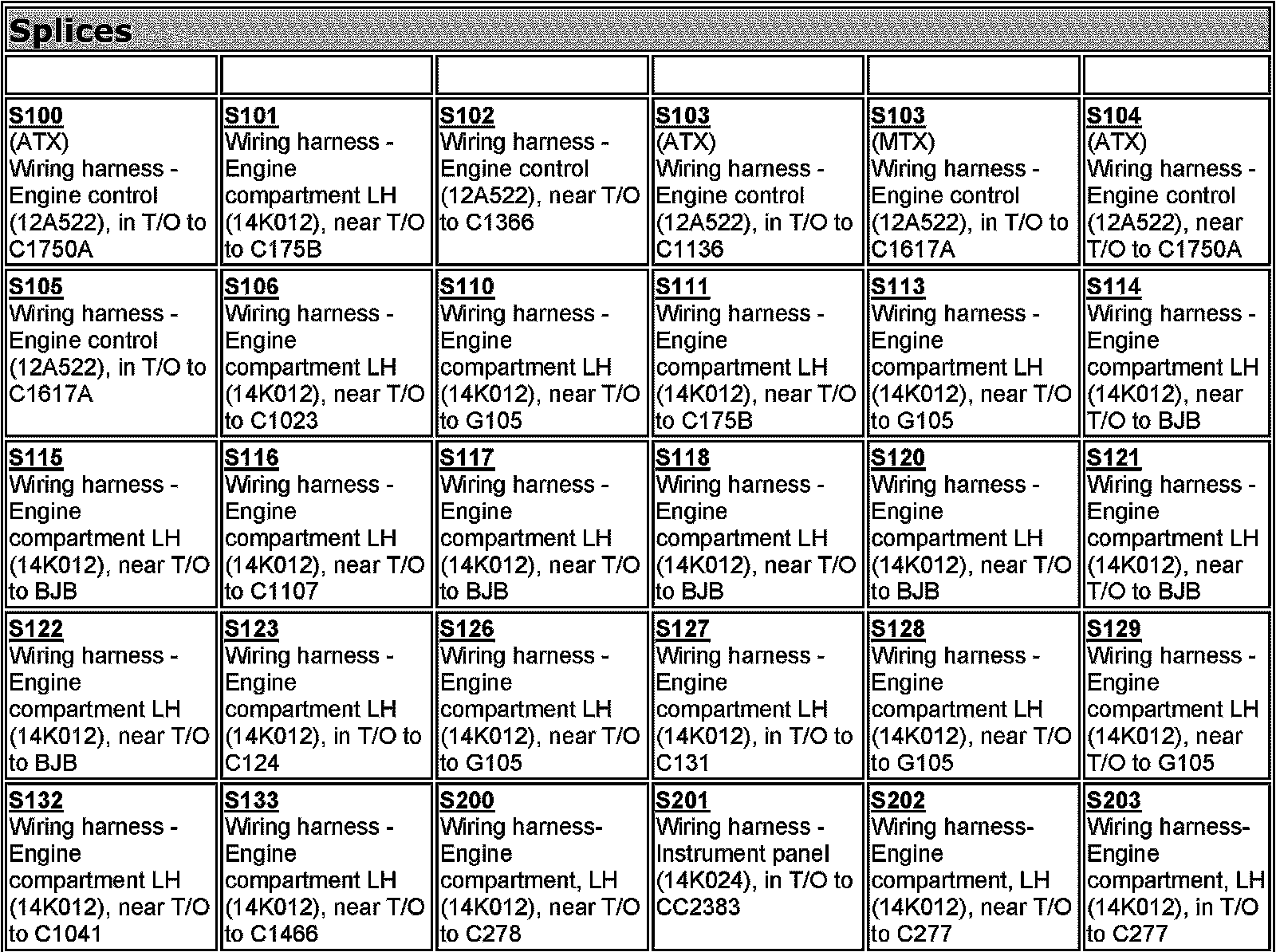

S100-S203:

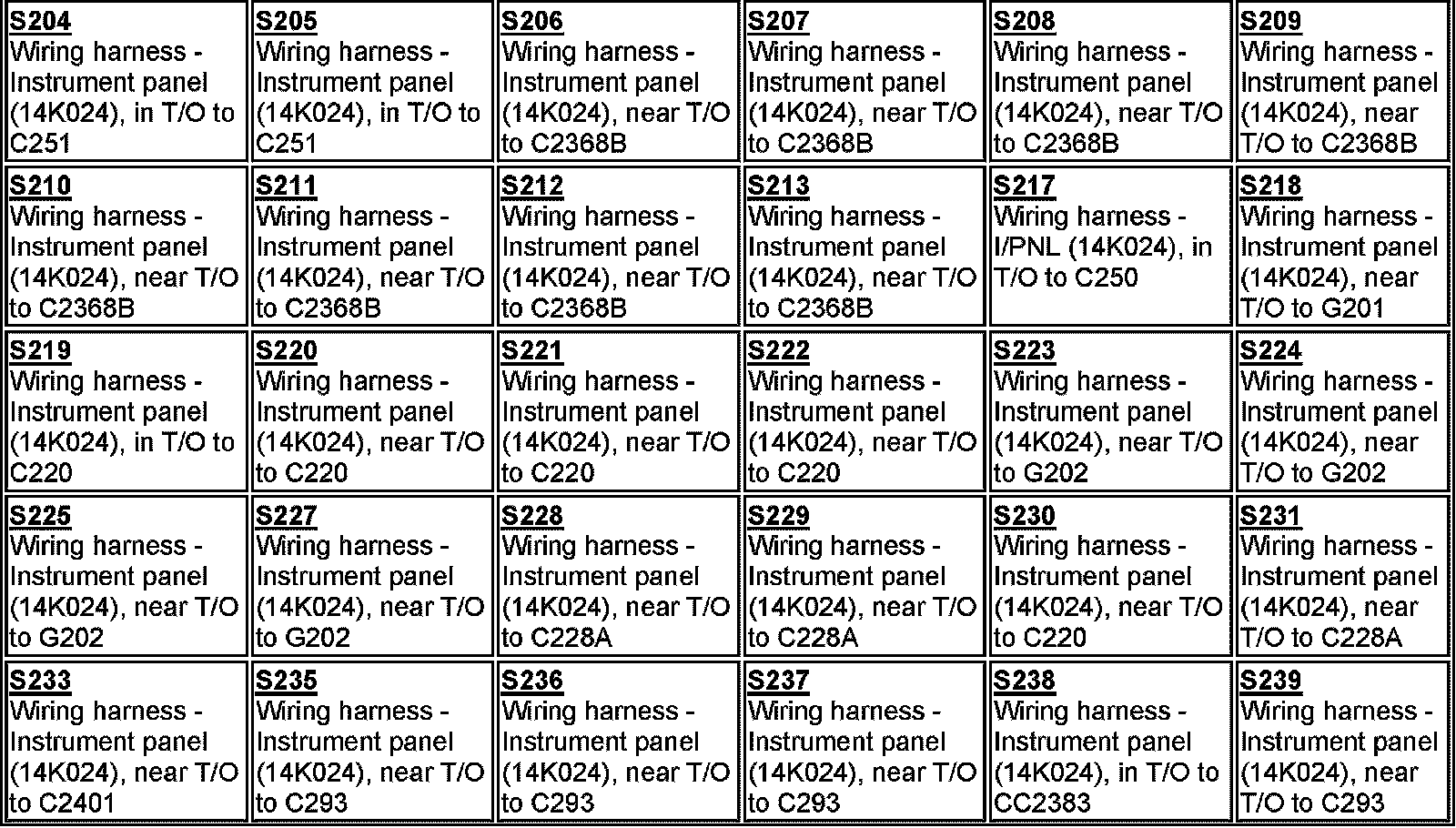

S204-S239:






S240-S303:






S304-S403:

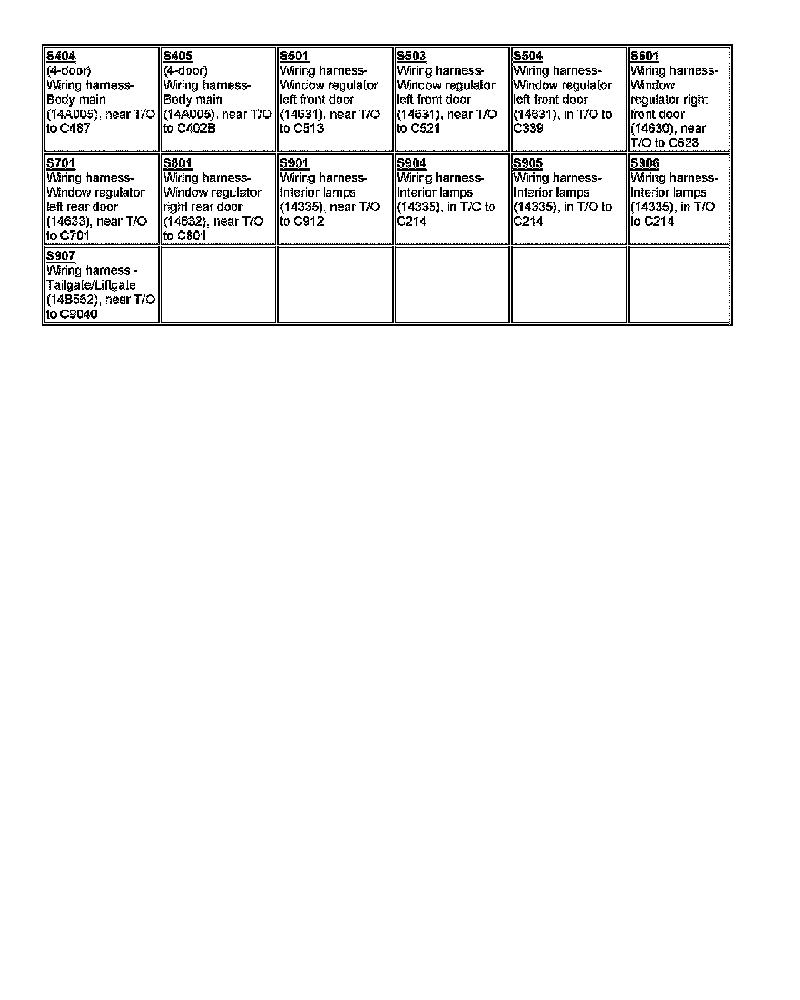

S404-S907:
