Turn Signal Lamp: Service and Repair

Turn Signal Lamp - Outside Rear View Mirror









Removal

1. Remove the exterior mirror cover.

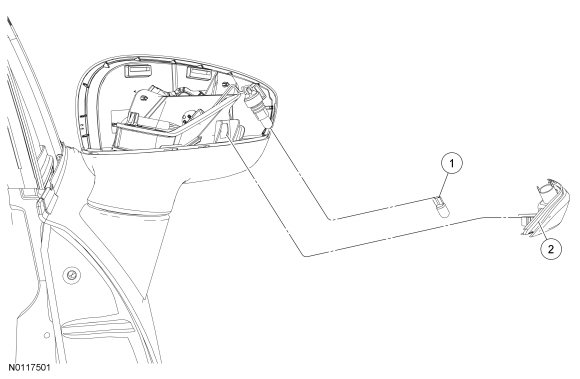

2. Remove the outside rear view mirror turn signal assembly.

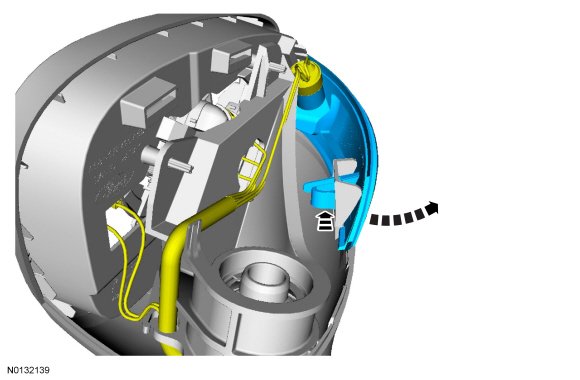

1. Remove the turn signal bulb and socket from the turn signal assembly and position the wiring harness aside.

2. Release the turn signal clip and remove the turn signal assembly.






Installation

1. NOTE: Bulb and socket will be fully seated in the turn signal assembly when the 2 slots align with the rubber seal.
Install the turn signal bulb and socket into the turn signal assembly.

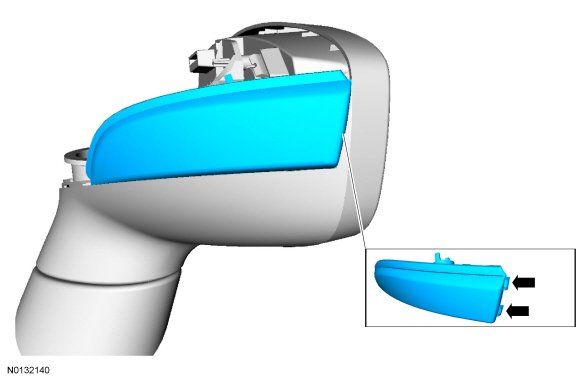

2. Install the 2 rear hooks of the turn signal assembly under the edge of the rear view mirror and snap the turn signal clip in place.





3. Install the exterior mirror cover.
