Seat Latch Striker - Rear

Seat Latch Striker - Rear

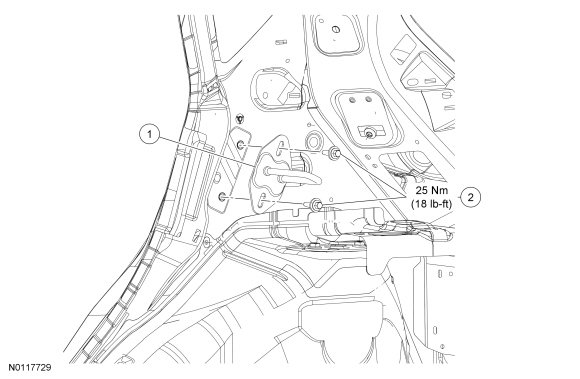

NOTE: RH shown, LH similar.









Removal and Installation

1. Remove the lower C-pillar trim panel.

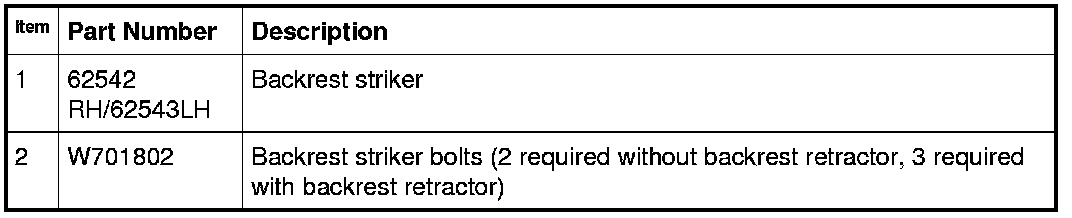

2. Remove the bolts and the backrest striker.
- To install, tighten to 25 Nm (18 lb-ft).


3. To install, reverse the removal procedure.
