Seat - Exploded View, Rear

Seat - Exploded View, Rear

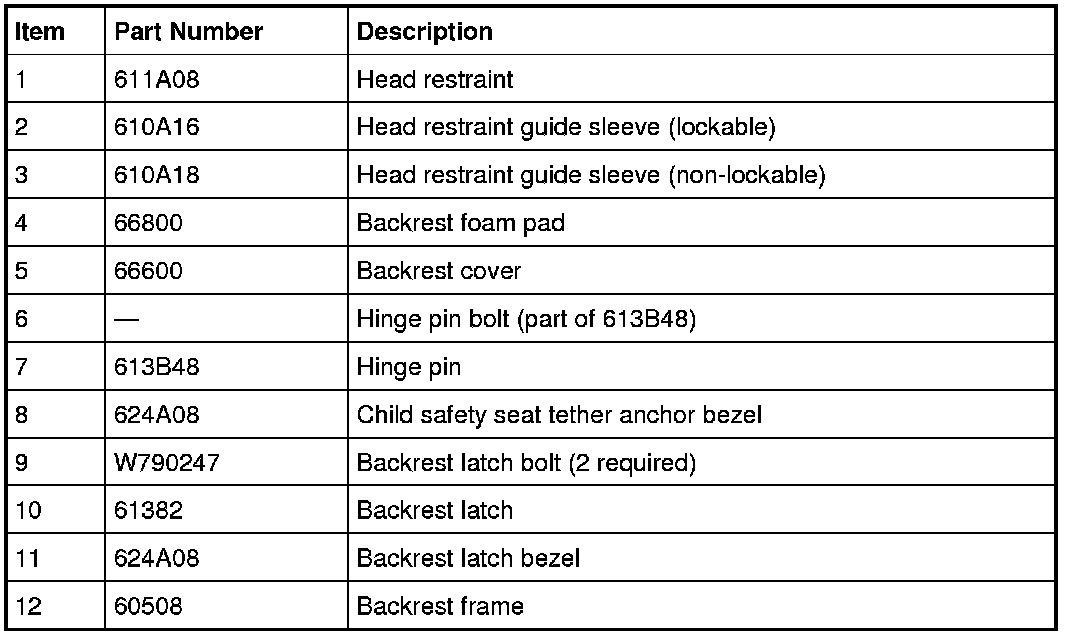

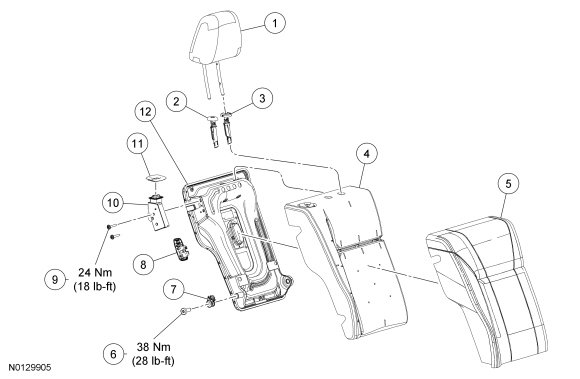

Seat Backrest - 40 Percent

NOTE: 5-door hatchback backrest shown, 4-door sedan backrest similar.

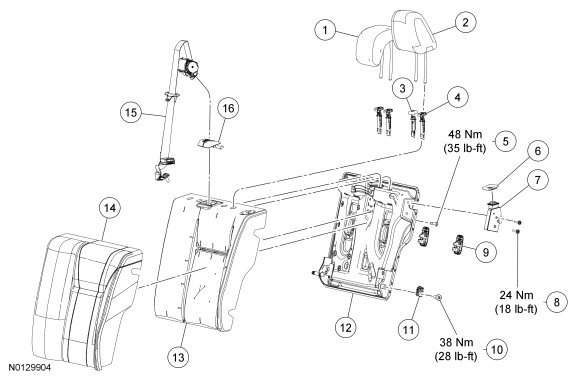

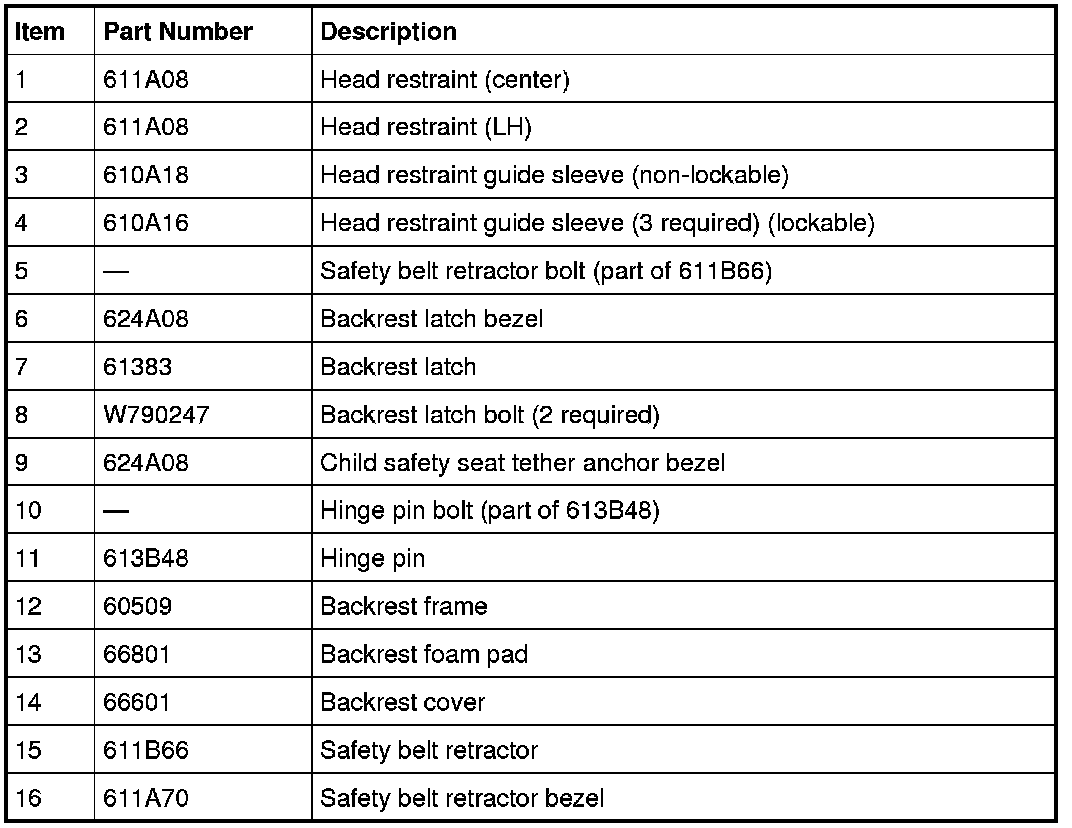

Seat Backrest - 60 Percent, 4-Door Sedan

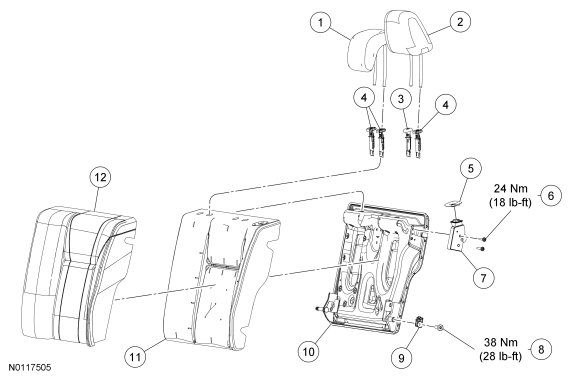

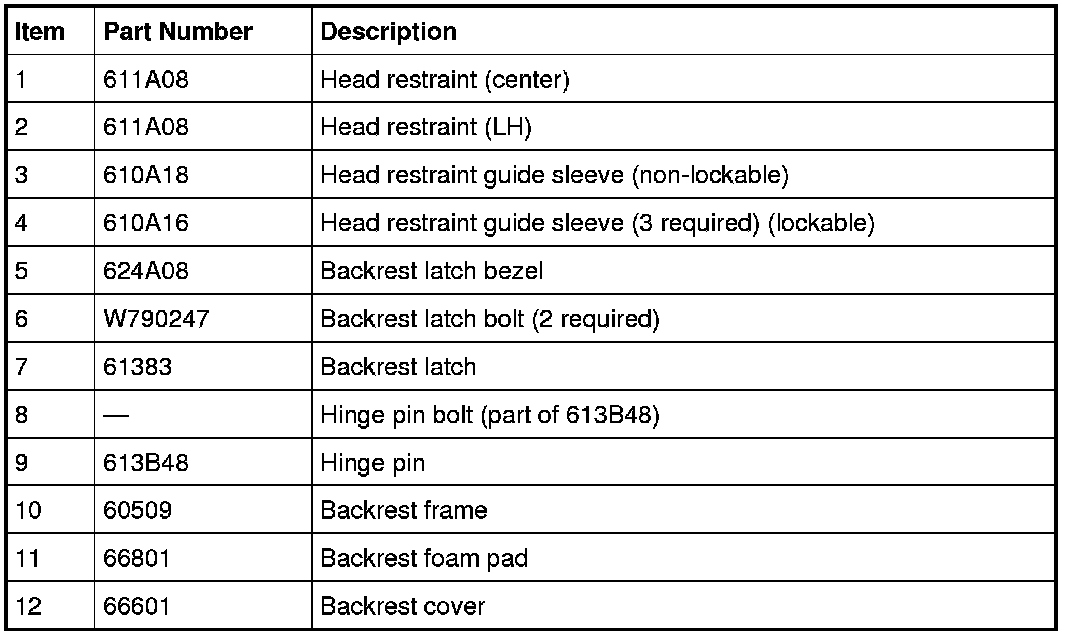

Seat Backrest - 60 Percent, 5-Door Hatchback

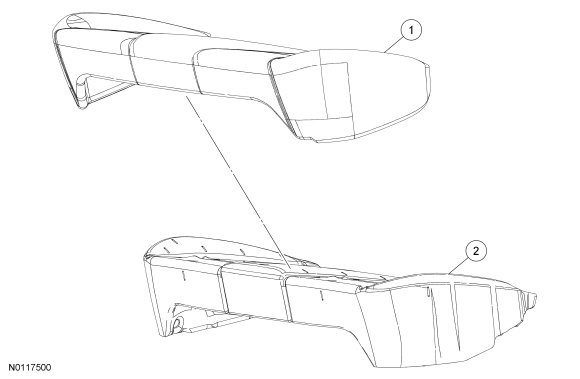

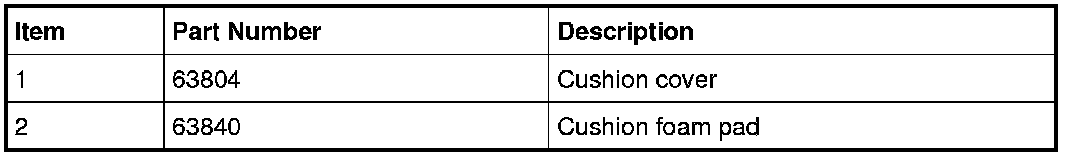

Seat Cushion
