Head Restraint Guide Sleeve
Head Restraint Guide Sleeve
Removal
NOTE: Typical head restraint guide sleeve shown, others similar.
1. Push in on the 2 head restraint guide sleeve release buttons and remove the head restraint.
2. Obtain a flat-head screwdriver with a width of 4 mm (0.157 in) to 7 mm (0.275 in) and a thickness of approximately 1 mm (0.039 in).

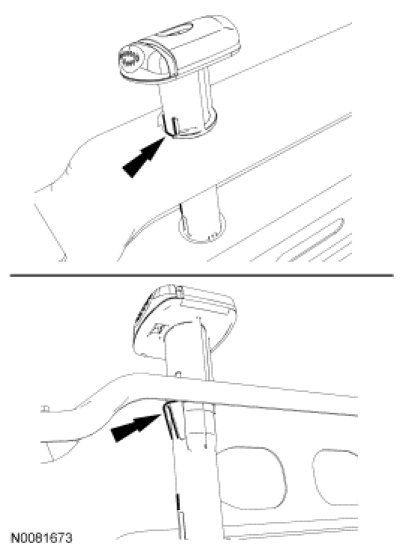

3. Locate the lock feature on the head restraint guide sleeve.

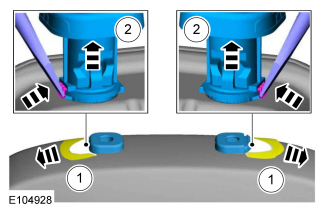

1. Position the screwdriver between the head restraint guide sleeve neck and backrest trim cover and foam pad.
2. Locate the screwdriver on the lock feature and position at a 45-degree angle.
4. NOTE: For retainer clarity, backrest trim cover and foam pad are removed.
Push in the screwdriver, bending the lock feature on the head restraint guide sleeve in.

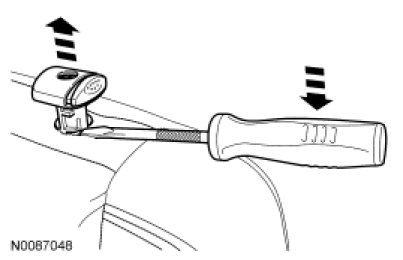

5. While bending the lock feature in, push down on the screwdriver handle, prying the head restraint guide sleeve up and disengaging it from the backrest frame crossmember.
6. Remove the head restraint guide sleeve.
- Discard the head restraint guide sleeve.
7. Repeat these steps for the head restraint guide sleeve on the opposite side.
Installation
NOTICE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.
NOTICE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeve at the correct position may result in component failure.
1. Make sure the holes in the backrest foam pad and backrest trim cover are aligned to the holes in the backrest frame.
2. NOTE: The guide sleeve will only fit into the backrest frame when the guide sleeve alignment tabs align with the keyway opening in the backrest frame.

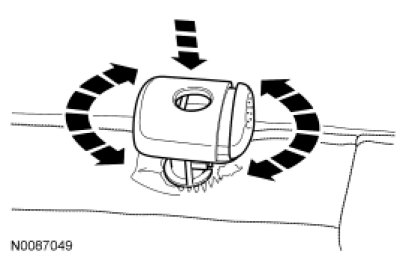

To allow the head restraint guide sleeve to slide freely through the backrest foam pad and backrest trim cover, twist the head restraint guide sleeve to align the keyway tabs while pushing it into the backrest frame hole as far as it will go with hand pressure.
3. Inspect the head restraint guide sleeve.
- Pull the head restraint guide sleeve out by hand, making sure it is locked in place. If the head restraint guide sleeve can be removed by hand, repeat the installation procedure. If the head restraint guide sleeve can be removed again after installing a second time, install a new head restraint guide sleeve.
4. Repeat these steps for the head restraint guide sleeve on the opposite side.
5. After installation of 2 new head restraint guide sleeves, install the head restraint in the following sequence.
1. Position the head restraint rods to the head restraint guide sleeve holes.
2. Push the head restraint down, guiding the rods into the head restraint guide sleeve holes.
3. Make sure the head restraint adjusts without excessive effort and locks in place.
