Sunroof / Moonroof: Description and Operation

Roof Opening Panel

The roof opening panel consists of the following components:

- Air deflector

- Control switch

- Drain hoses

- Frame

- Glass

- Motor/Module

- Shield

- Trim lace

- Trough assembly

- Weatherstrip

Roof Opening Panel Operation

The roof opening panel is an electronically operated glass panel with one-touch open and one-touch vent features. The roof opening panel assembly uses an integrated motor and module to operate the roof opening panel.

To open the roof opening panel, press and release the rear of the SLIDE control switch. The roof opening panel opens automatically. Press the SLIDE control switch at any time to stop roof opening panel movement.

To vent the roof opening panel, the roof opening panel must be in the CLOSED position. Press and release the rear of the TILT control switch. The roof opening panel automatically moves to the VENT position.

To close the roof opening panel from the VENT (or any other open position), press and hold the front of the TILT or SLIDE control switch until the glass panel stops moving.

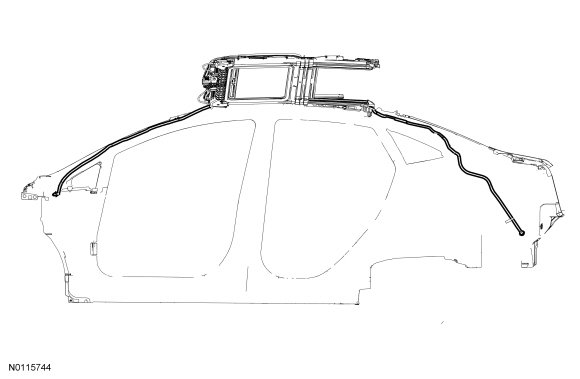

Roof Opening Panel Drain Hose Routing - 4-Door Sedan

NOTE: Passenger side shown, driver side similar.

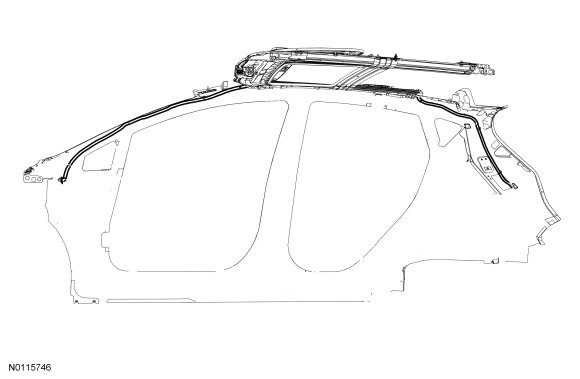

Roof Opening Panel Drain Hose Routing - 5-Door Hatchback

NOTE: Passenger side shown, driver side similar.
