Radiator Grille

Radiator Grille









Removal and Installation

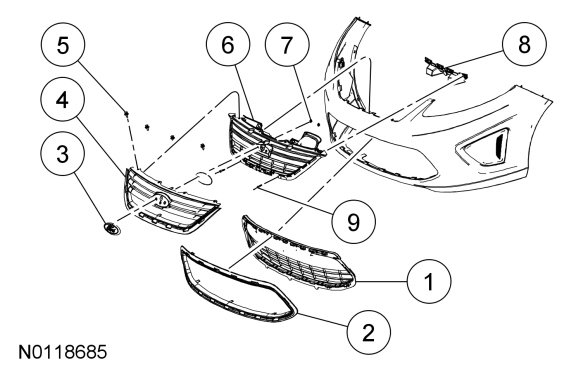

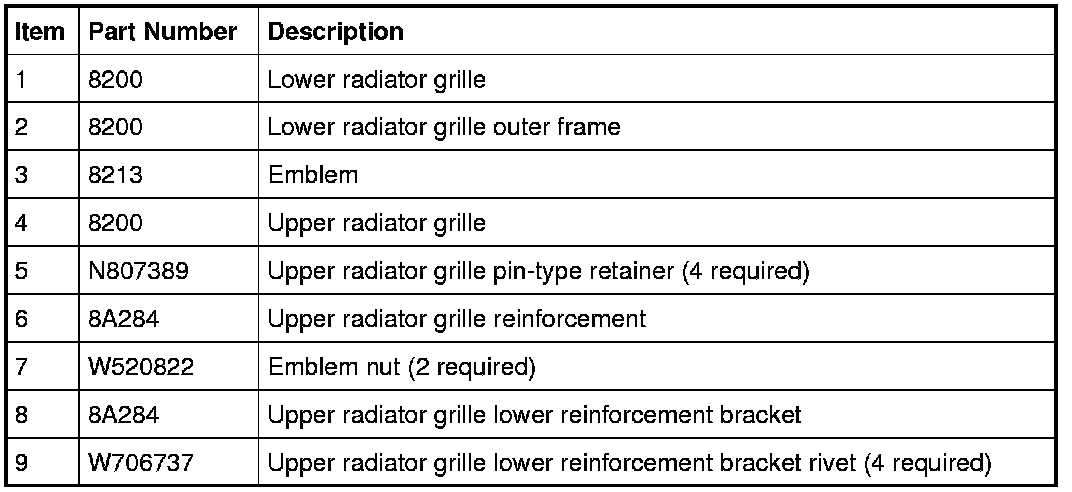

Upper Radiator Grille and Lower Radiator Grille

1. Remove the front bumper cover.

Upper Radiator Grille

2. Remove the 4 upper radiator grille pin-type retainers.

3. Disconnect the upper radiator grille reinforcement from the front bumper cover and remove the upper radiator grille and reinforcement.

4. Disconnect the upper radiator grille from the reinforcement and remove.

Lower Radiator Grille

5. From the back side of the front bumper cover disconnect the lower radiator grille and remove.

6. Disconnect the outer frame from the bumper cover and remove.

Upper Radiator Grille and Lower Radiator Grille

7. To install, reverse the removal procedure.
- Transfer parts as necessary.
