Exterior Moulding / Trim: Service and Repair

Air Deflector - Lower, Radiator

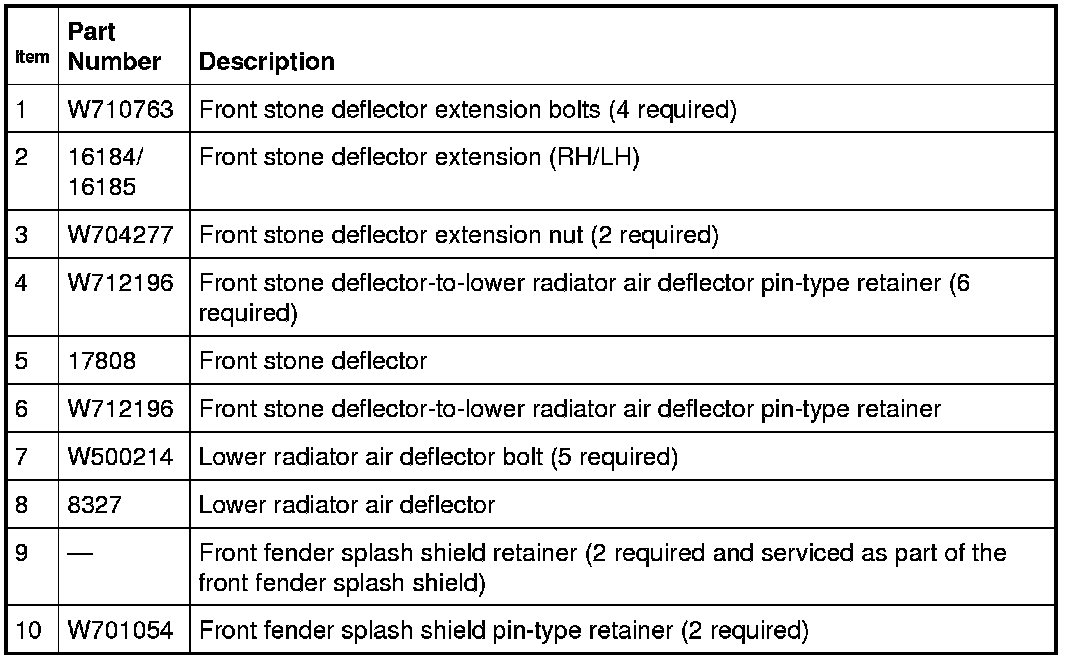

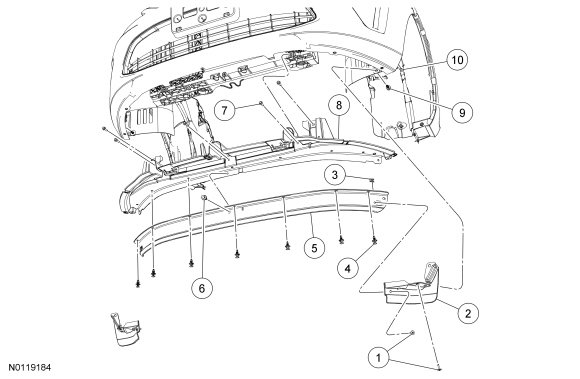

Removal and Installation

1. Remove the front bumper cover.

2. If equipped, remove the 2 scrivet retainers and both front lower side radiator air deflectors.





3. Remove the 5 lower radiator air deflector bolts and the lower radiator air deflector.

4. To install, reverse the removal procedure.
- Transfer parts as necessary.
