Liftgate Latch

Liftgate Latch









Removal and Installation

1. Remove the liftgate trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

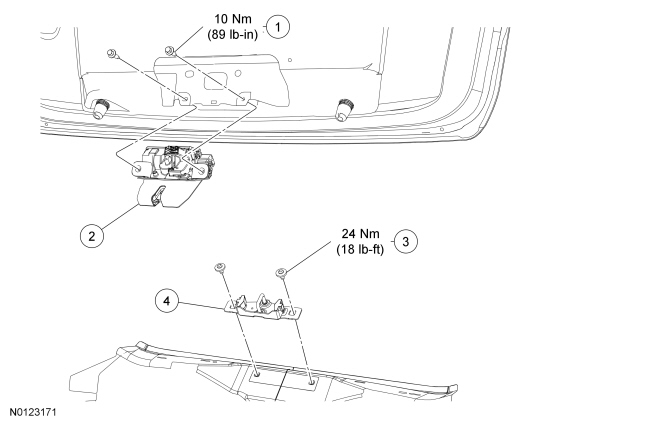

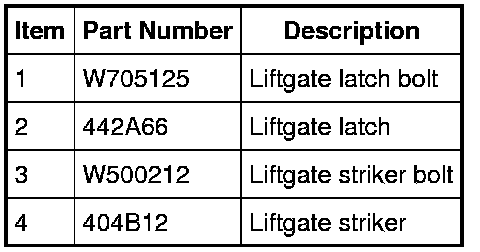

2. Refer to exploded view(s) and any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
