Trunk / Liftgate Interior Trim Panel: Service and Repair

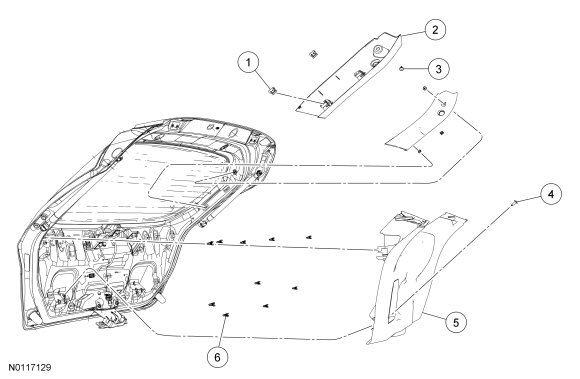

Liftgate Trim Panel

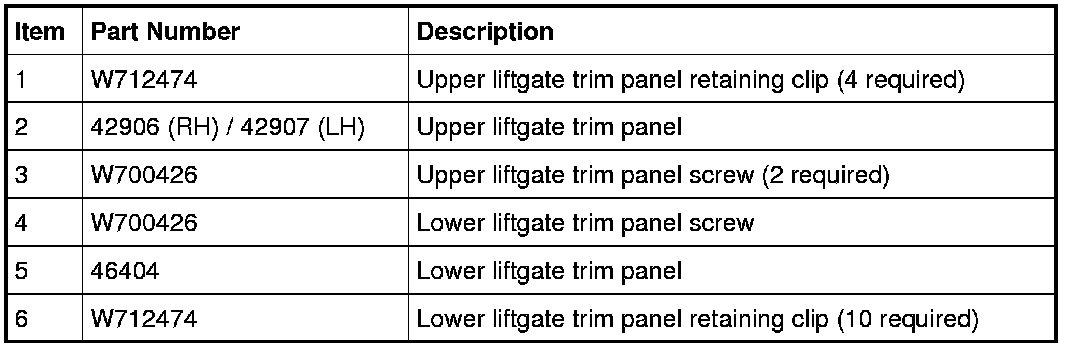

Upper liftgate trim panel

1. Remove the upper liftgate trim panel retaining screw.

2. Remove the upper liftgate trim panel.
- Pull the upper liftgate trim panel toward the center of the vehicle and release the 2 upper liftgate trim panel retaining clips.


3. NOTICE: To avoid damage to the upper liftgate trim panel, remove any retaining clips from the body and attach them to the upper liftgate trim panel before installing.

To install, reverse the removal procedure.
- To install, align the upper liftgate trim panel retaining clips to the retaining clip holes in the body


Lower liftgate trim panel

4. Remove the lower liftgate trim panel.
- Remove the lower liftgate trim panel retaining screw.

- Pull the lower liftgate trim panel toward the front of the vehicle and release the 10 lower liftgate trim panel retaining clips.


5. NOTICE: To avoid damage to the lower liftgate trim panel, remove any retaining clips from the body and attach them to the lower liftgate trim panel before installing.

To install, reverse the removal procedure.
- To install, align the lower liftgate trim panel retaining clips to the retaining clip holes in the body
