Hood Latch Release: Service and Repair

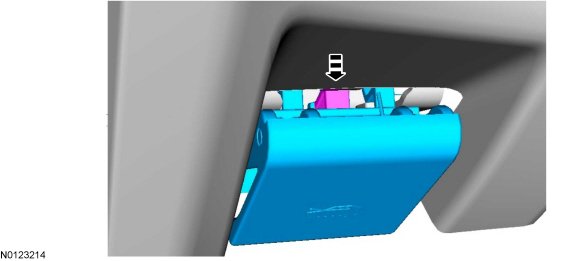

Hood Latch Release Handle

Removal and Installation

1. Using a suitable tool, depress the hood latch release handle retaining tab.





2. Remove the hood latch release handle.
- Pull the hood latch release handle rearward.


3. Disconnect the hood release cable from the hood latch release handle.

4. To install, reverse the removal procedure.
