Front Door: Service and Repair

Door

Front Door










Rear Door

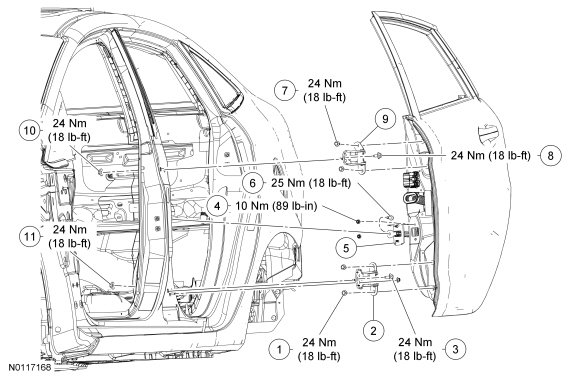

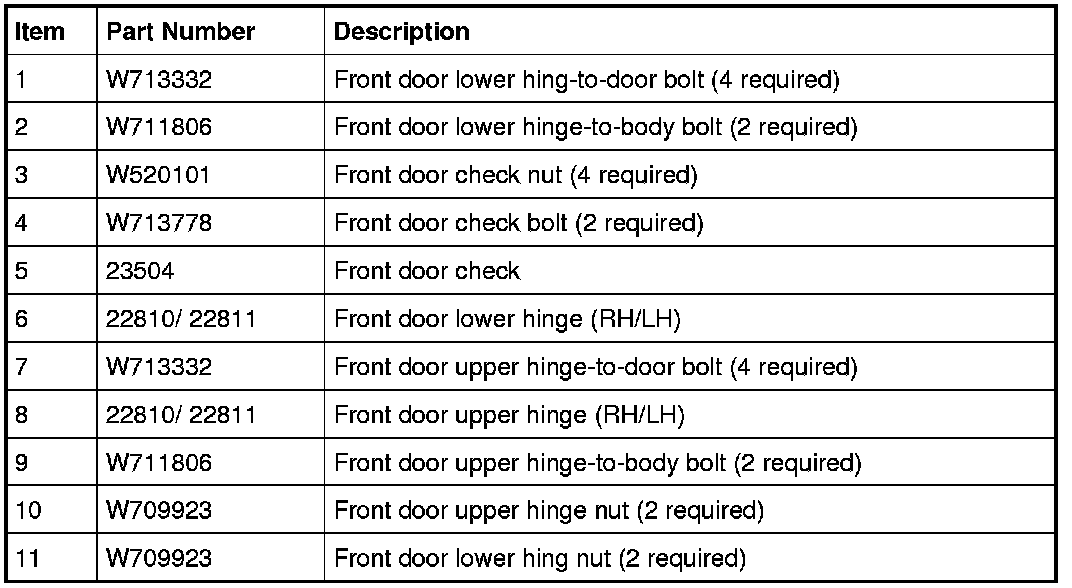

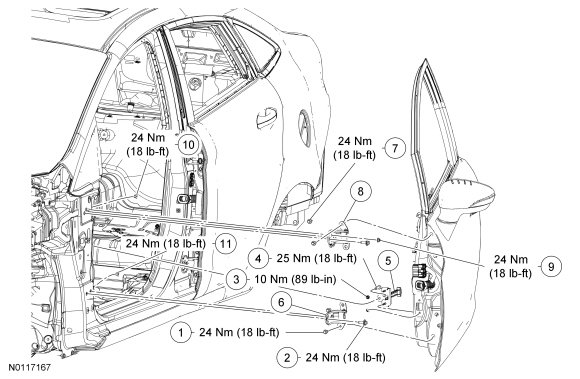

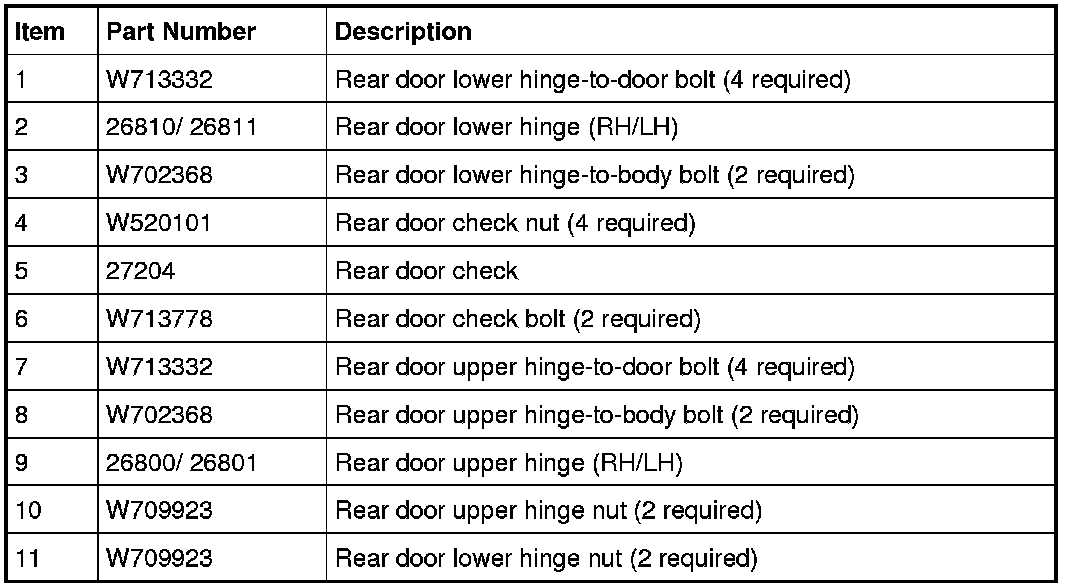

Removal and Installation

1. Disconnect the door bulk head connector at the body.
1. Carefully pull the rubber grommet around the bulk head connector back away from the body to gain access to the 3 clips on the bulk head connector.

2. Release the upper clip and the 2 lower clips and pull the door bulk head connector from the body.

3. Disconnect the electrical connectors from the door bulk head connector.


2. Remove the door check arm-to-body bolt.
- To install, tighten to 26 Nm (19 lb-in).


3. Remove the 2 upper hinge-to-door bolts.
- To install, tighten to 24 Nm (18 lb-ft).


4. NOTE: The aid of an assistant is required to hold the door up while removing the lower hinge-to-door bolts.
Remove the 2 lower hinge-to-door bolts.

- To install, tighten to 24 Nm (18 lb-ft).


5. To install, reverse the removal procedure.
- If necessary, adjust the door. For additional information, refer to Door Alignment- Front Door Alignment - Front or Door Alignment- Rear Adjustments.
