Universal Serial Bus (USB) Cable and Port

Universal Serial Bus (USB) Cable and Port

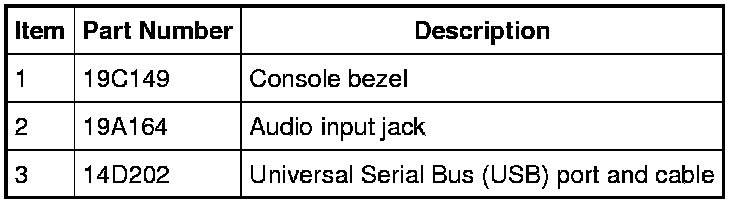

USB Port

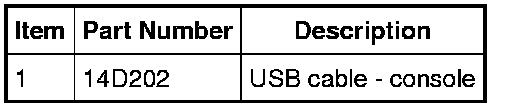

USB Cable - Console









Removal

NOTE: The Universal Serial Bus (USB) cable is a two piece cable. The USB cable routed through the floor console can be removed and replaced. The USB cable routed through the instrument panel is taped into the wiring harness. Because the instrument panel USB cable cannot be removed from the harness, this procedure applies to replacement of that cable only.

USB Port and Cable - Console

1. Remove the instrument panel lower finish panel and the RH floor console side panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Lower.

2. Release the push-pins and remove the Universal Serial Bus (USB) port and cable from the floor console bezel.

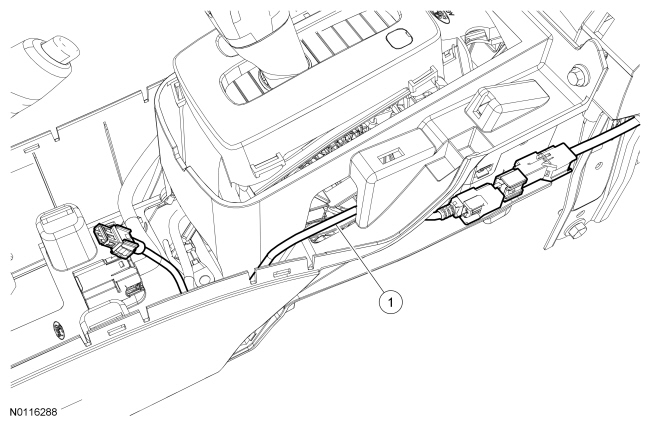

3. Disconnect the floor console to instrument panel USB cable electrical connector and remove the USB cable.

USB Cable Cable - Instrument panel

4. Remove the instrument panel lower finish panel and the RH floor console side panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Lower.

5. Disconnect the floor console to instrument panel USB cable electrical connector and push pin.

6. Disconnect the USB cable at the Accessory Protocol Interface Module (APIM). For additional information, refer to Information and Entertainment Systems Accessory Protocol Interface Module (APIM).

Installation

USB Port and Cable - Console

1. Route the USB cable through the floor console. Connect the floor console to instrument panel USB cable electrical connector.

2. Connect the USB port and cable to the floor console bezel.

3. Install the instrument panel lower finish panel and the RH floor console side panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Lower and Service and Repair.

USB Cable Cable - Instrument panel

4. Overlay the new USB cable on the vehicle wiring harness, following the routing of the original cable.

5. Secure the new USB cable to the wiring harness with tape or zip ties as necessary.

6. Connect the floor console to instrument panel USB cable electrical connector and push pin.

7. Connect the USB cable at the Accessory Protocol Interface Module (APIM). For additional information, refer to Information and Entertainment Systems Accessory Protocol Interface Module (APIM).

8. Install the instrument panel lower finish panel and the RH floor console side panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Lower and Service and Repair.
