Anti-Theft - Passive Anti-Theft System (PATS) - Passive Start Antenna - Rear

Passive Start Antenna - Rear









Removal and Installation

1. Remove the rear seat cushion. For additional information, refer to Seating Seat Cushion - Rear.

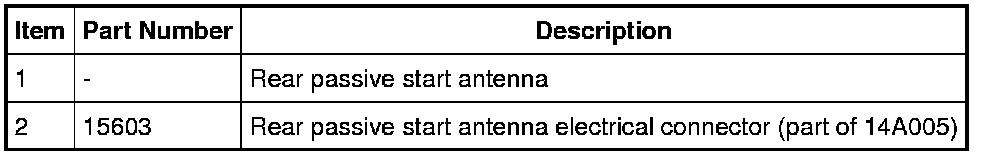

2. Pull the carpet forward to uncover the rear passive start antenna.

3. Disconnect the rear passive start antenna electrical connector.

4. Using a suitable tool (such as a trim removal tool), pry the rear passive start antenna upward to release the antenna from the floorpan and remove the rear passive start antenna.
- To install, remove the rear passive start antenna tapes backing and press the antenna to the rear floor.

5. To install, reverse the removal procedure.
