Anti-Theft - Passive Anti-Theft System (PATS) - Passive Start Antenna - Front

Passive Start Antenna - Front









Removal and Installation

1. Remove the floor console finish panel. For additional information, refer to the exploded view In Instrument Panel and Console Service and Repair.
- Lift upward on the rear of the floor console finish panel to release the floor console finish panel clips.

- If equipped, disconnect the electrical connector.

- Slide the park brake lever boot and the floor console finish panel over the park brake lever.

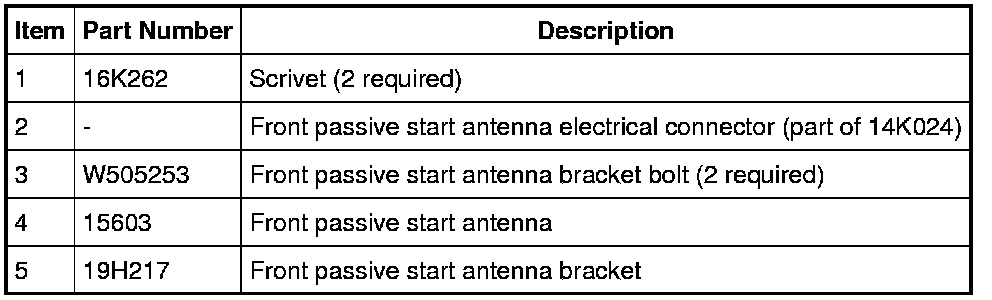

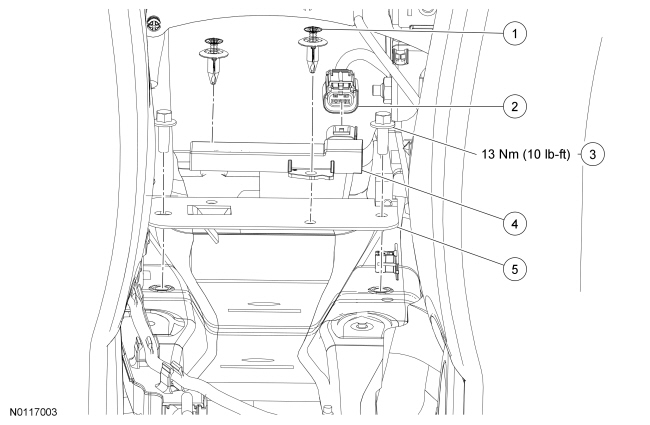

2. Pull the red lock tab outward and disconnect the front passive start antenna electrical connector.

3. Remove the 2 bolts and the front passive start antenna and bracket assembly.
- To install, tighten to 13 Nm (10 lb-ft).

4. If required, remove the 2 scrivets and the front passive start antenna.

5. To install, reverse the removal procedure.
