Anti-Theft - Passive Anti-Theft System (PATS) - Passive Start Antenna - Center

Passive Start Antenna - Center

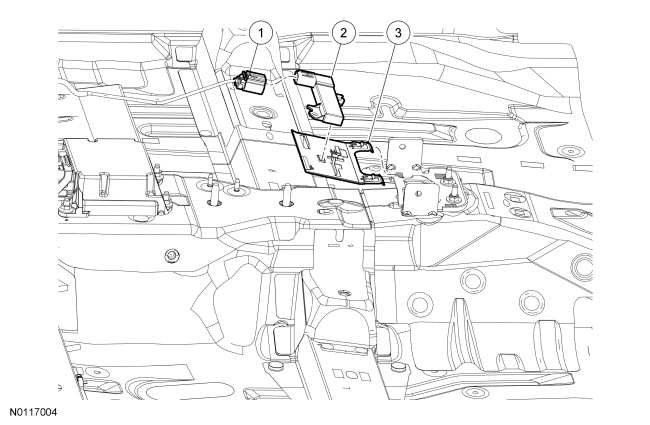

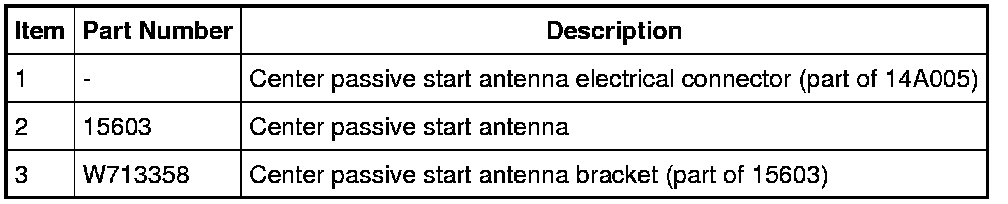

Removal and Installation

1. Remove the floor console. For additional information, refer to Instrument Panel and Console Service and Repair.

2. Pull the red lock tab outward and disconnect the rear floor console passive start antenna electrical connector.

3. Unclip and remove the center passive start antenna and bracket assembly.

4. If required, remove the center passive start antenna from the center passive start antenna bracket.

5. To install, reverse the removal procedure.
