FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2011
>>
Fusion FWD V6-3.0L Flex Fuel
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

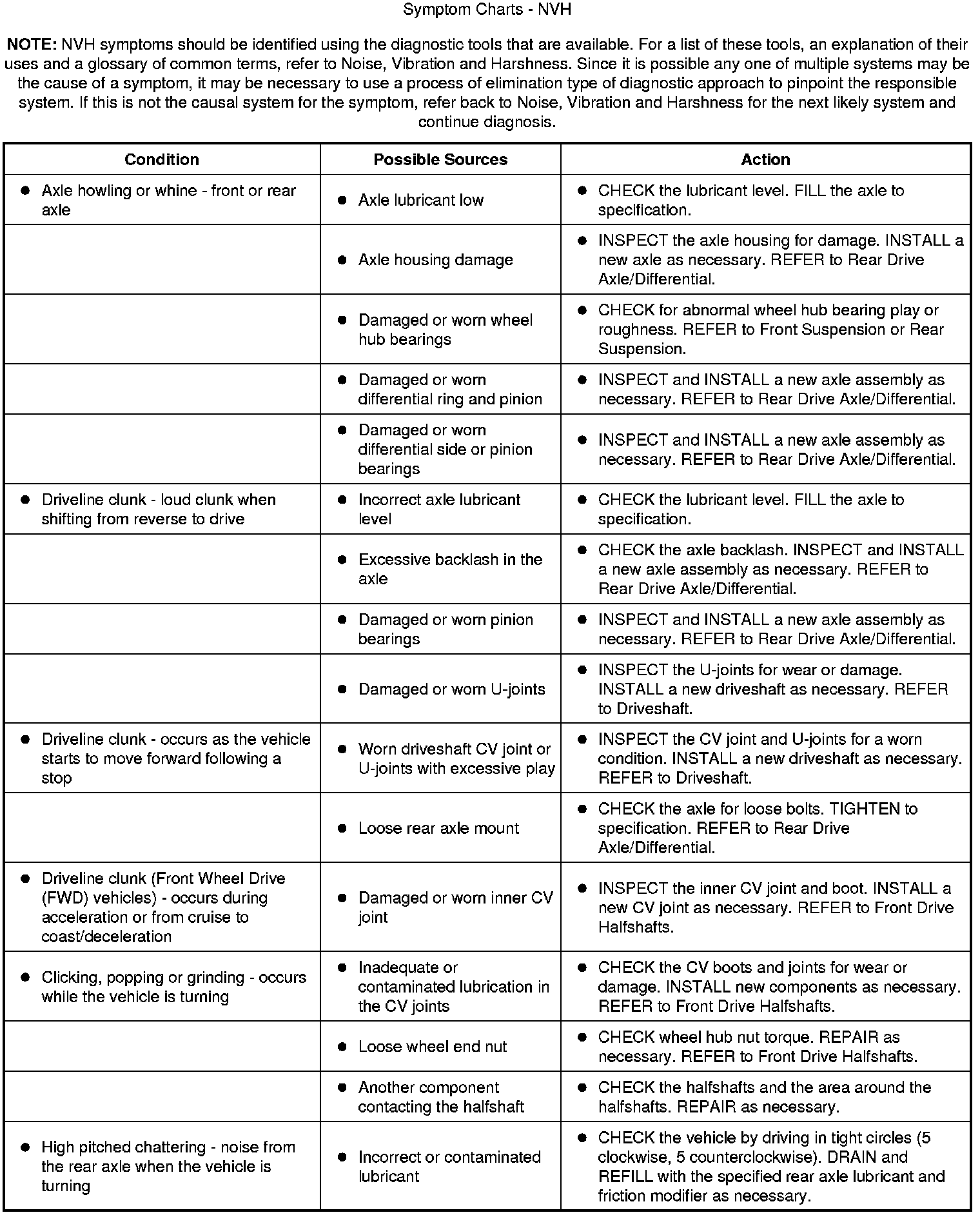

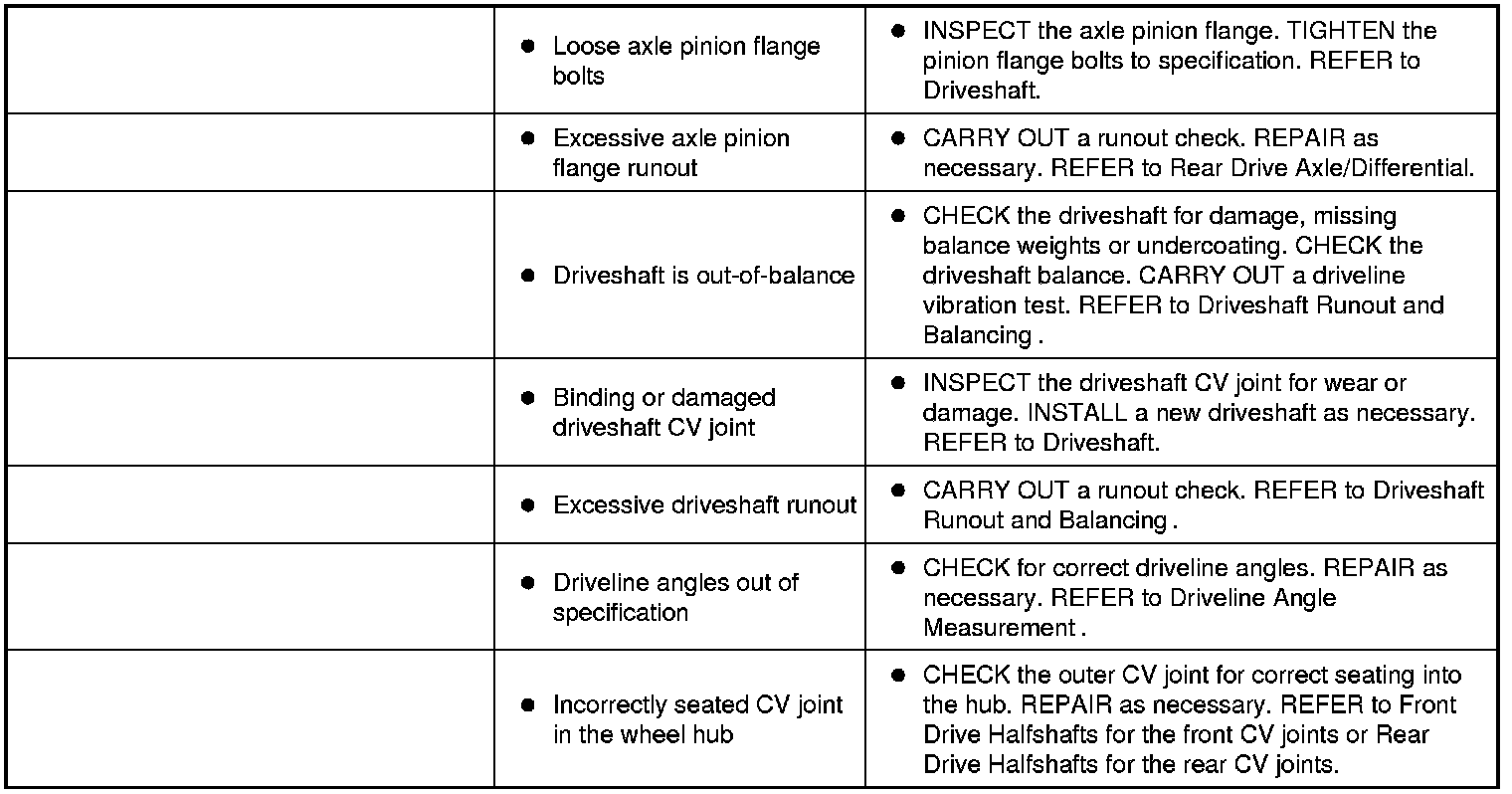

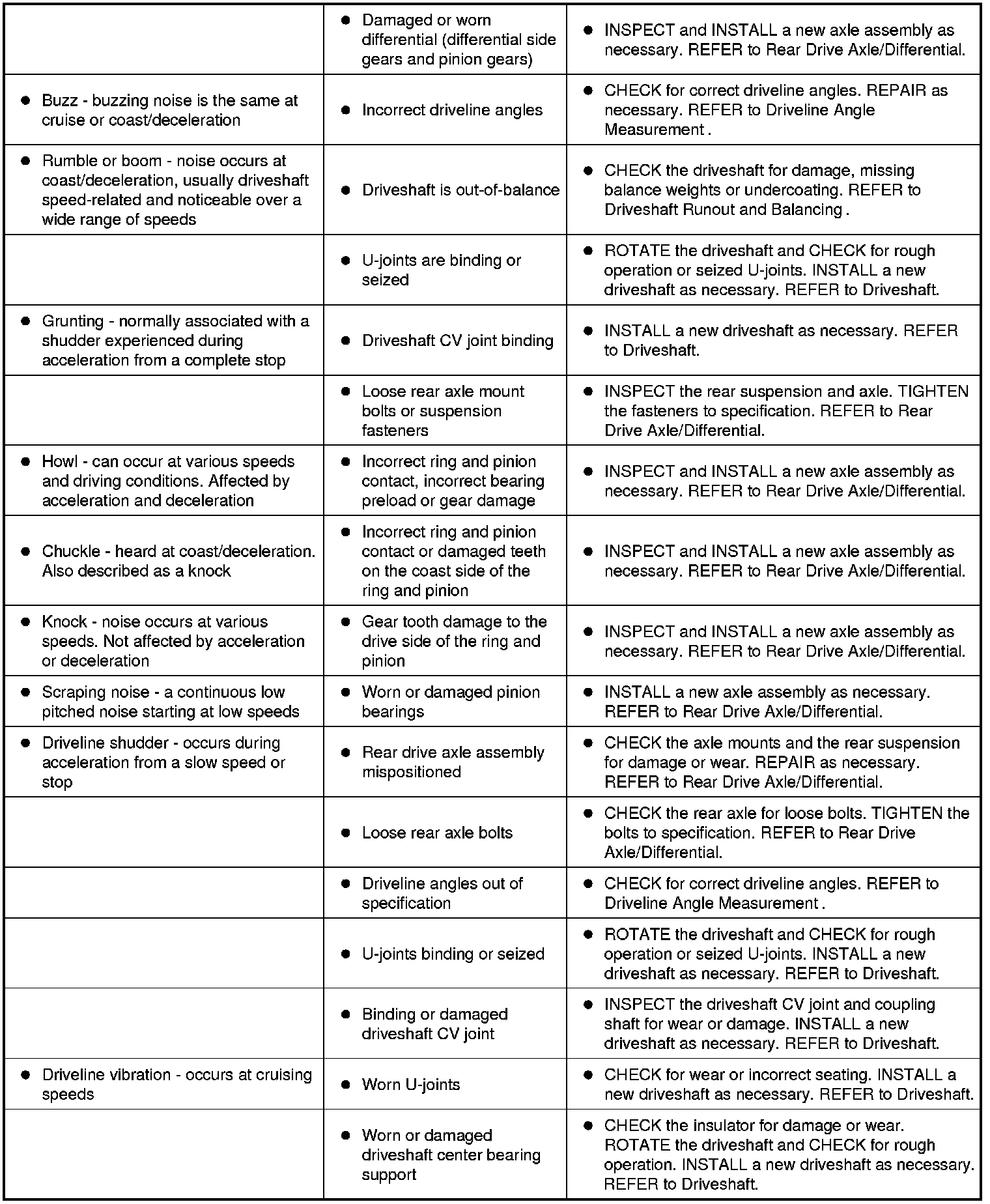

Symptom Charts - NVH
Symptom Charts - NVH
Driveline System
Symptom Charts - NVH
