Transaxle Support Insulator - Anti-Roll

Transaxle Support Insulator - Anti-Roll, 3.5L













Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

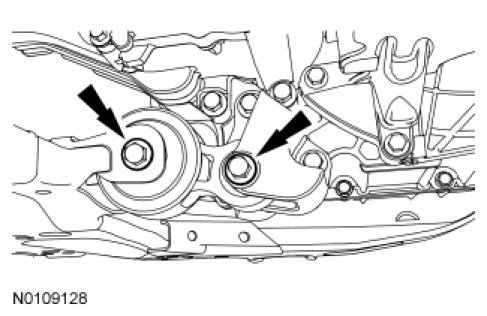

2. Remove the 2 through bolts and remove the roll restrictor.





3. Remove the 2 Y-pipe nuts, disconnect the exhaust hanger and discard the exhaust seal.
- Discard the gasket and nuts.

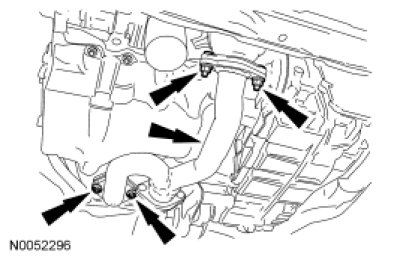

4. Remove the 4 nuts, the Y-pipe assembly and discard the exhaust seals.
- Discard the nuts.





Installation

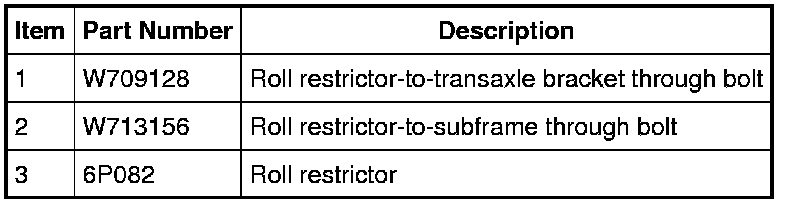

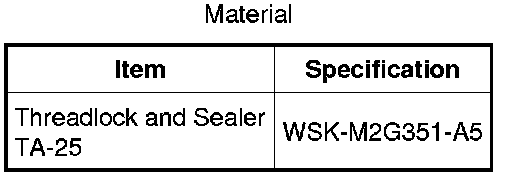

1. Clean the roll restrictor bolts using a wire brush and apply new threadlock to the threads.

2. Position the roll restrictor in place and install the bolts.

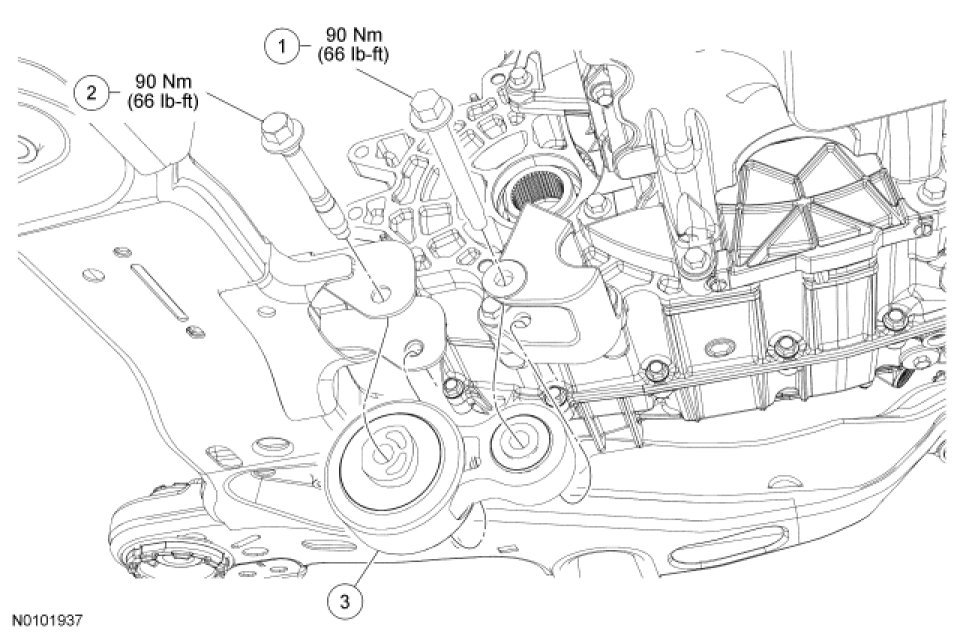

- Tighten to 90 Nm (66 lb-ft).





3. Install new exhaust seals, position the exhaust Y-pipe assembly in place and install 4 new exhaust Y-pipe assembly nuts.
- Tighten to 40 Nm (30 lb-ft).





4. Install a new exhaust seal, position the Y-pipe in the exhaust hanger and install 2 new exhaust flange nuts.
- Tighten to 40 Nm (30 lb-ft).
