Evaporative Emissions Hose: Service and Repair

Fuel Vapor Tube Assembly

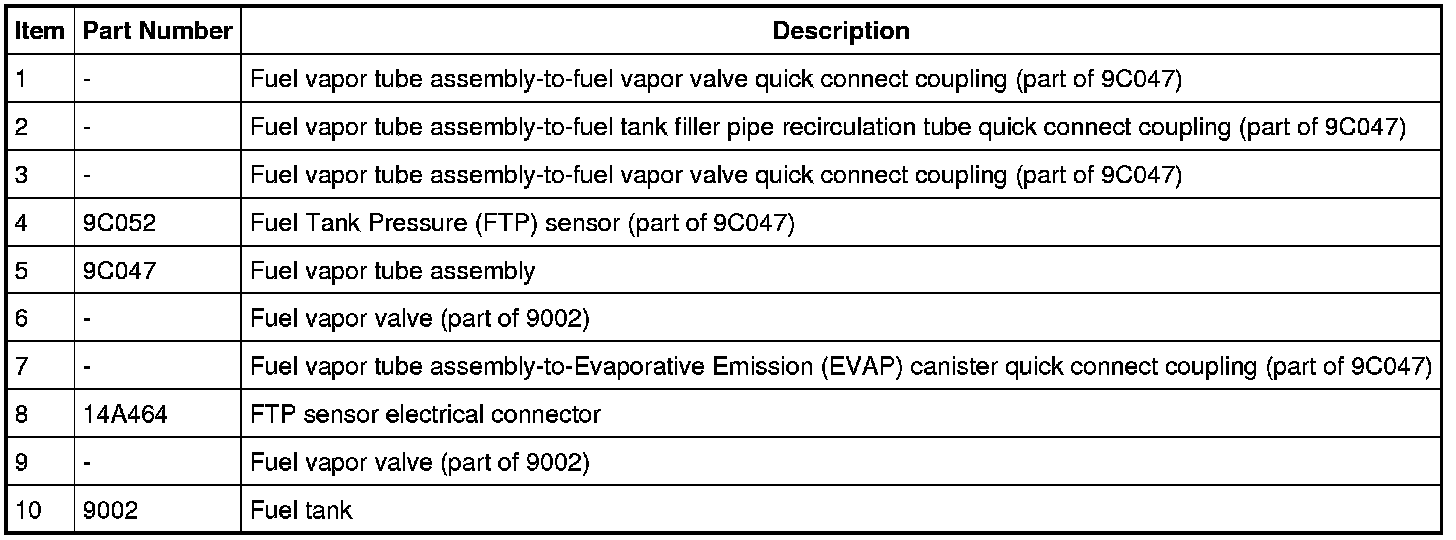

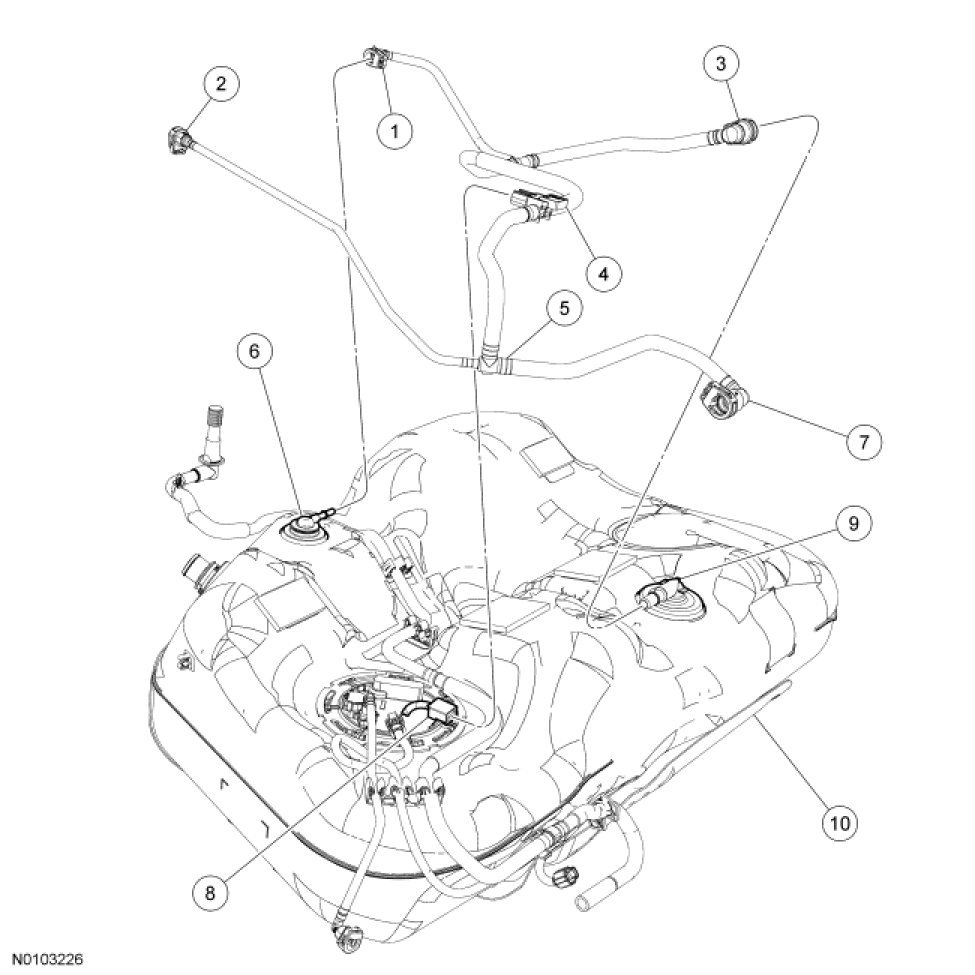

L-Shaped Fuel Tank

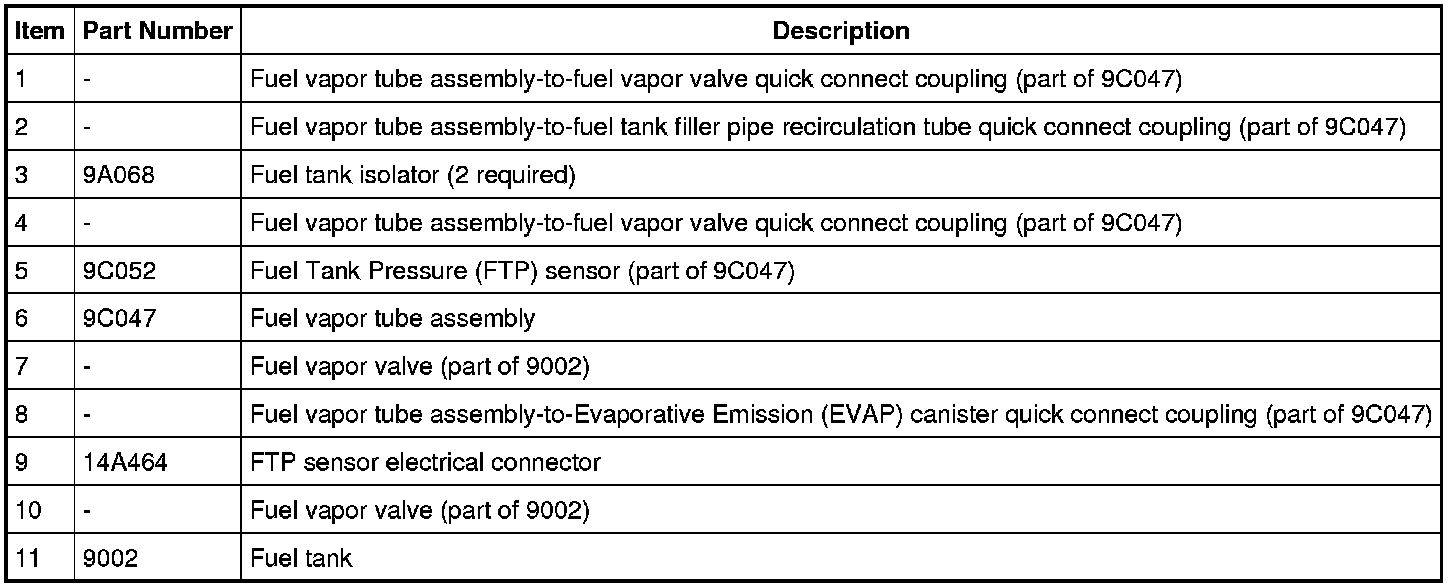

Saddle-Type Fuel Tank









Removal and Installation

All vehicles

1. Remove the fuel tank. For additional information, refer to Fuel Delivery and Air Induction.

2. Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.

3. Release the 2 fuel vapor tube assembly-to-fuel vapor valve quick connect couplings. For additional information, refer to Fuel Delivery and Air Induction.

Vehicles with Saddle-Type Tank

4. Remove the 2 fuel tank isolators.

All vehicles

5. Release the retainer clips and remove the fuel vapor tube assembly.

6. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
