Diagnostic Trouble Code Tests and Associated Procedures

Wipers and Washers


DTC Chart

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states (ignition OFF, ignition in ACCESSORY, ignition ON, ignition START) on vehicles with this feature.

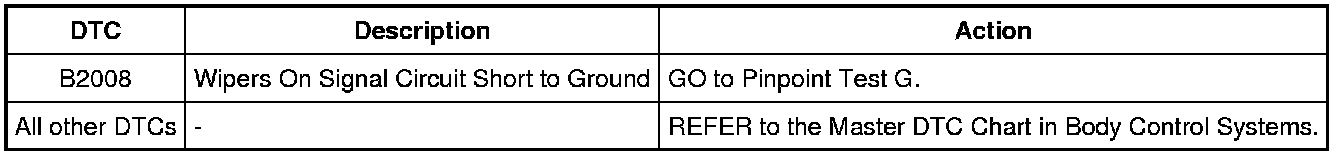

Smart Junction Box (SJB) DTC Chart
