Window Glass - Fixed, Rear Door

Window Glass - Fixed, Rear Door

Removal and Installation

NOTE: The door glass run and bracket is part of the rear window fixed glass assembly and cannot be serviced separately.

1. Lower the door glass to the full DOWN position.

2. Remove the window control switch. For additional information, refer to Window Control Switch Service and Repair.

3. Remove the rear door trim panel and rear door window garnish moulding. For additional information, refer to Door Trim Panel - Rear in Trim Panel.

4. Remove the water shield.

5. Remove the interior door glass weatherstrip.

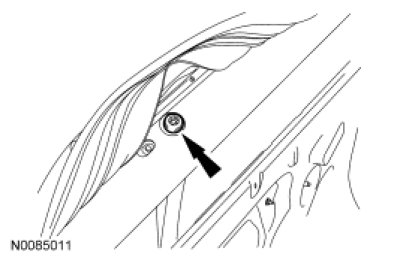

6. Remove the rear door window glass top run screw.
- To install, tighten to 5 Nm (44 lb-in).

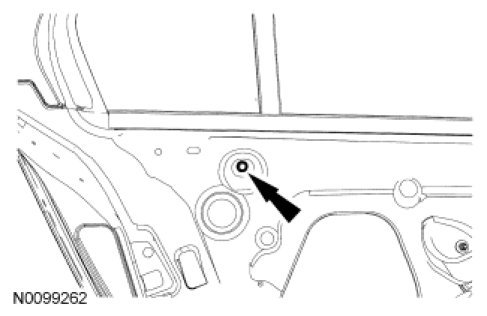

7. Remove tape and then remove the rear door fixed window glass bolt.
- To install, tighten to 9 Nm (80 lb-in).





8. NOTE: The door glass run and bracket is part of the rear window fixed glass assembly and cannot be serviced separately.

Remove the rear door fixed window glass.

- Position aside the door glass run.

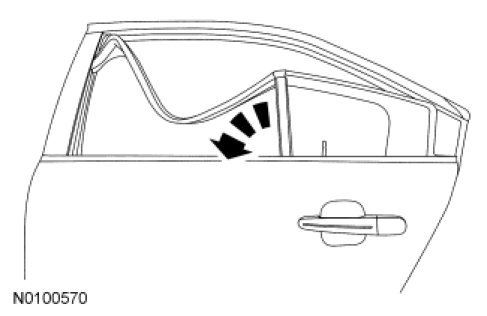

- Tip the front of the fixed glass assembly down and pull the assembly out through the top outboard side of the door.





9. To install, reverse the removal procedure.
