Installation

Power Transfer Unit (PTU) - 3.5L







Power Transfer Unit (PTU)

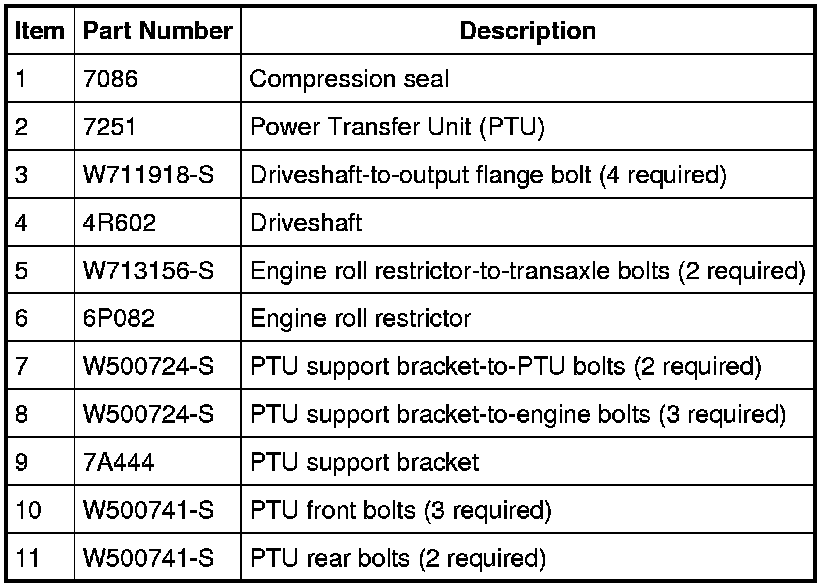

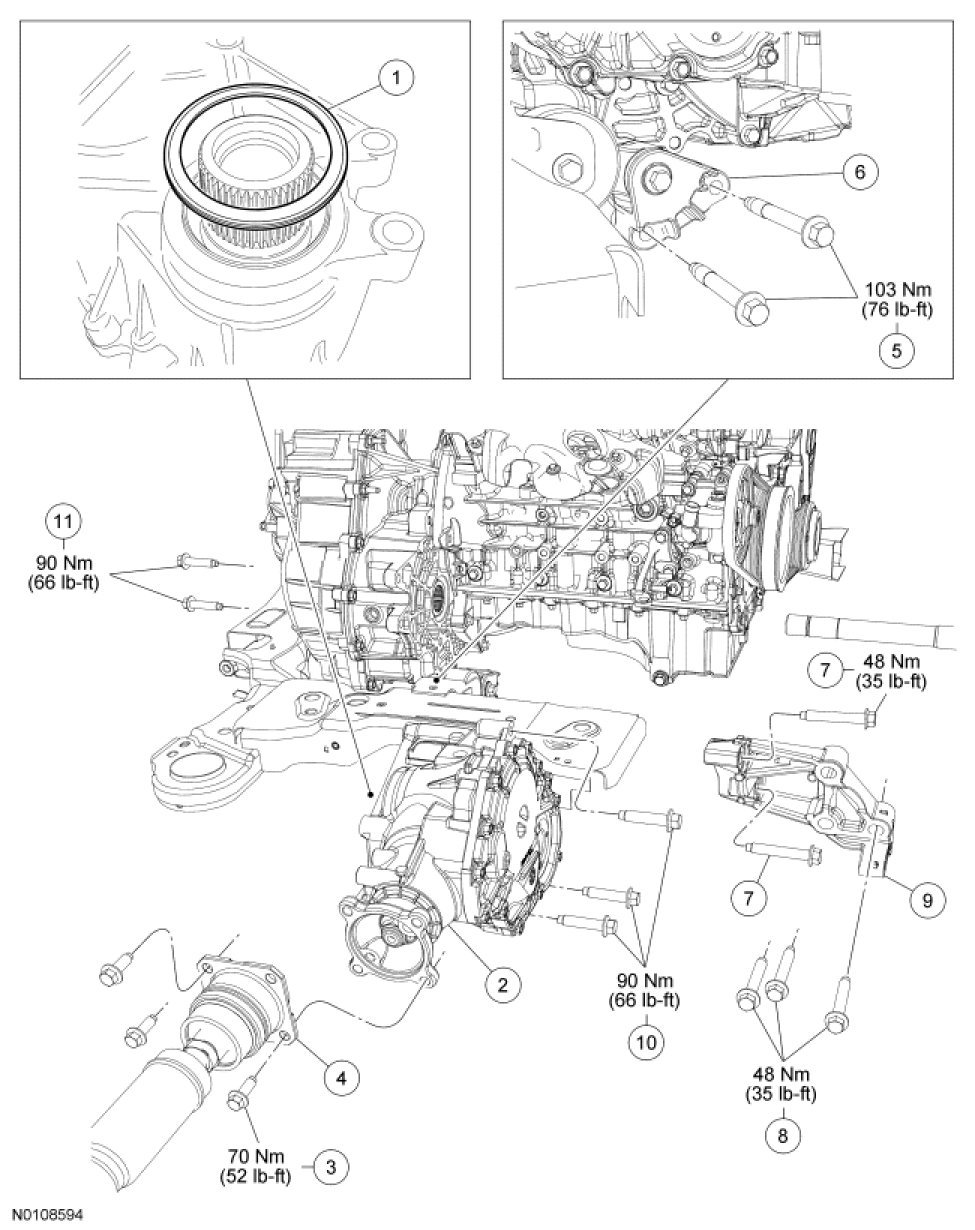

1. NOTE: A new compression seal must be installed whenever the Power Transfer Unit (PTU) is removed from the vehicle.

Using a suitable tool, install the new compression seal.





2. Position the PTU and install the 5 PTU bolts.
- Tighten to 90 Nm (66 lb-ft).

3. Position the PTU support bracket and install the 3 PTU support bracket-to-engine bolts.
- Tighten to 48 Nm (35 lb-ft).

4. Install the 2 PTU support bracket-to-transaxle bolts.
- Tighten to 48 Nm (35 lb-ft).

5. Position the engine roll restrictor to the transaxle and install the 2 bolts.
- Tighten the engine roll restrictor-to-transaxle bolts to 103 Nm (76 lb-ft).

- Tighten the rear engine roll restrictor bolt to 90 Nm (66 lb-ft).

6. NOTE: Line up the index marks made during removal.

Install the 4 driveshaft-to-output flange bolts.

- Tighten to 70 Nm (52 lb-ft).

7. Install the RH catalytic converter. For additional information, refer to Exhaust System &/or Catalytic Converter.

8. Install the RH front halfshaft. For additional information, refer to Drive Axles, Bearings and Joints.

9. Inspect the transmission fluid level and add clean, specified fluid as necessary.
