Drive Pinion Seal

Drive Pinion Seal

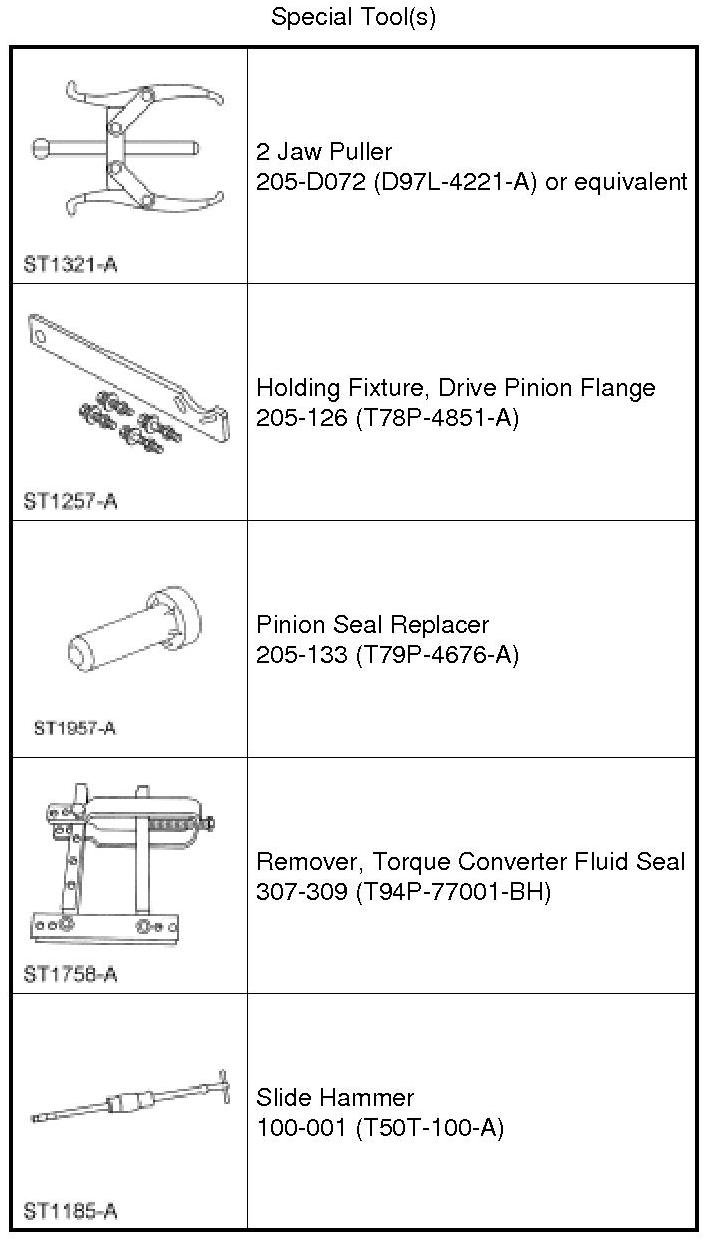

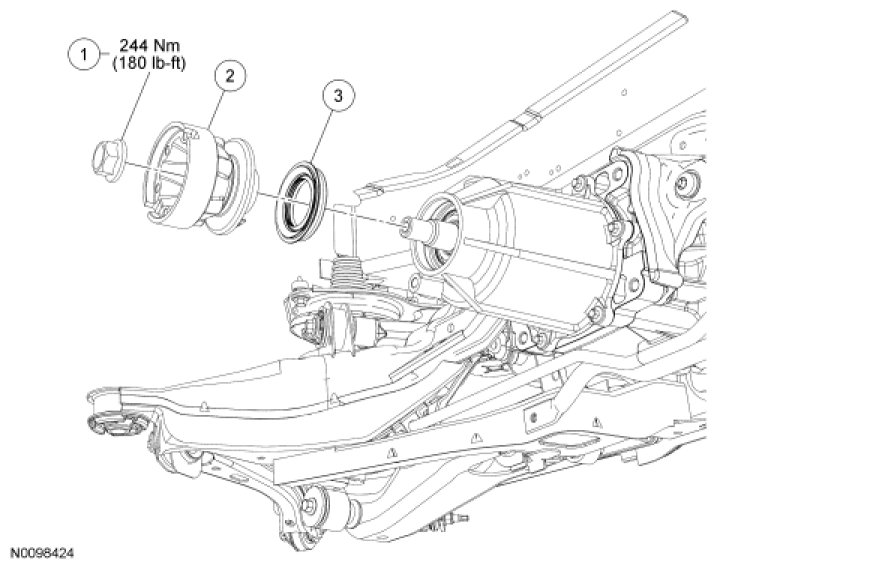

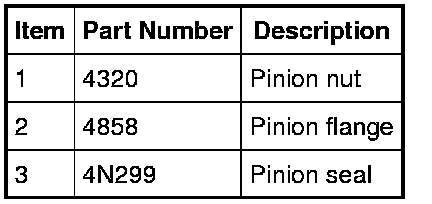

Removal

1. Remove the driveshaft. For additional information, refer to Drive/Propeller Shafts, Bearings and Joints.

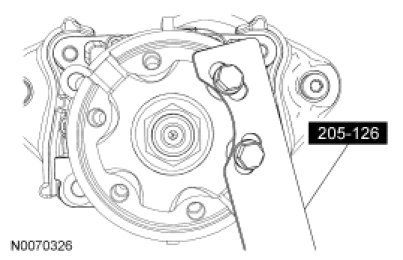

2. Using the Drive Pinion Flange Holding Fixture, hold the pinion flange and remove the nut.
- Discard the nut.

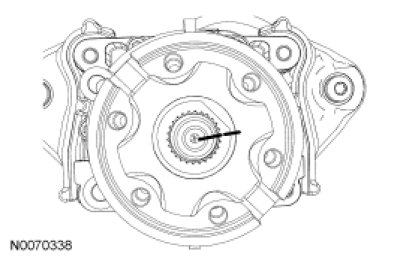

3. Index-mark the location of the pinion to the yoke.





4. Using the 2 Jaw Puller, remove the pinion flange.





5. Using the Torque Converter Fluid Seal Remover and Slide Hammer, remove the seal.





Installation

1. NOTE: Make sure that the mating surface is clean before installing the new seal.

Using the Pinion Seal Replacer, install the seal.

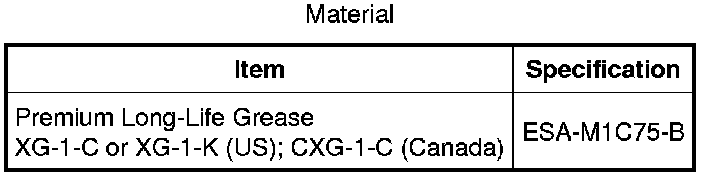

2. NOTE: Lubricate the pinion flange with grease.

Line up the index marks and position the pinion flange.





3. Using the Drive Pinion Flange Holding Fixture, install the new pinion nut.
- Tighten to 244 Nm (180 lb-ft).





4. Install the driveshaft. For additional information, refer to Drive/Propeller Shafts, Bearings and Joints.
