6F50 / 6F55
>>
Diagnostic Routines
>>
Torque Converter Operation Concerns 250/350 - 252/352
>>
252/352, Cycling/Shudder/Chatter
252/352, Cycling/Shudder/Chatter
6F50 / 6F55
Diagnostic Routines

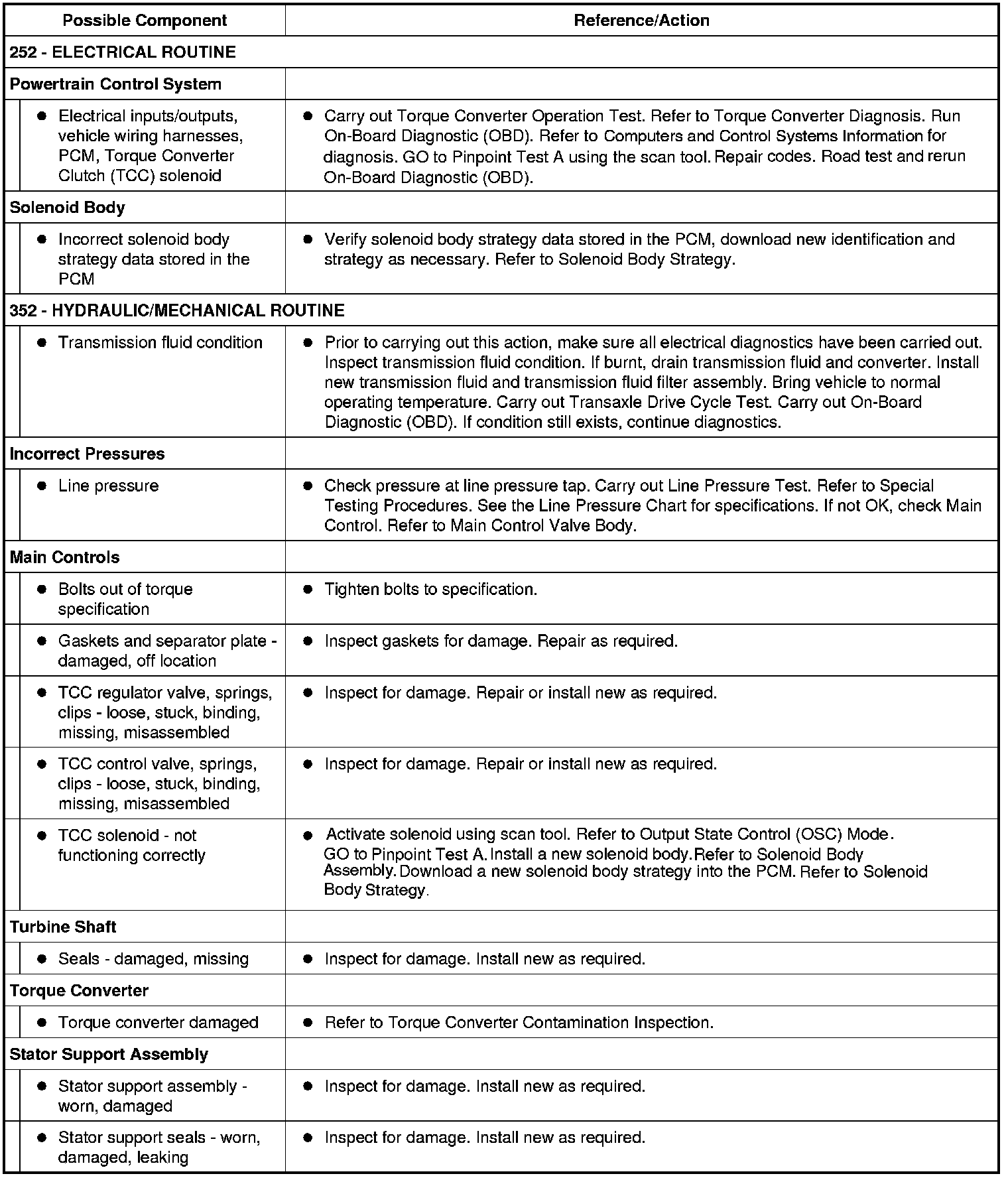

Torque Converter Operation Concern: Cycling/Shudder/Chatter
