Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
6F50 / 6F55
>>
Diagnostic Routines
>>
Shift Concerns 210/310 - 249/349
>>

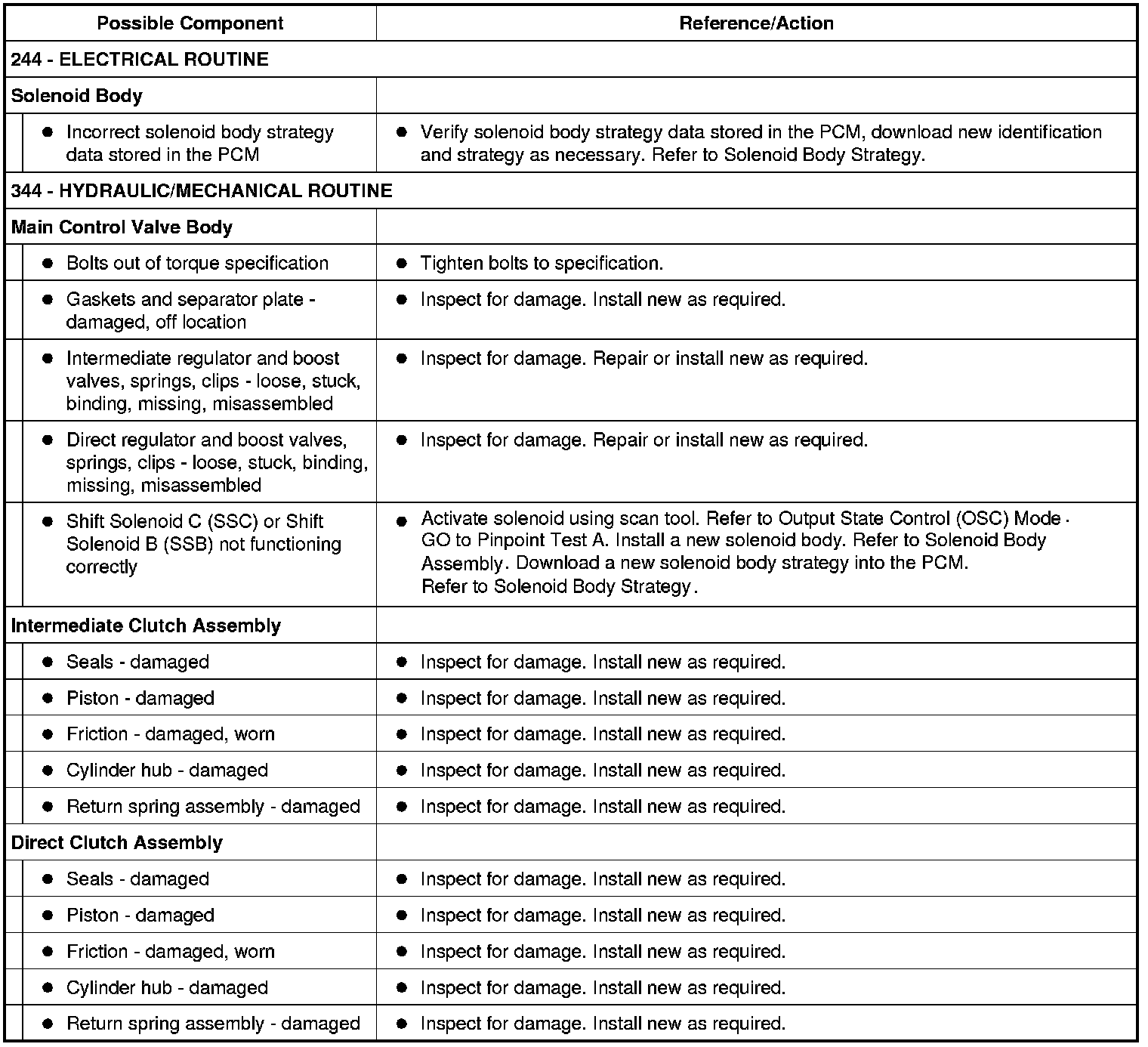

244/344, Harsh 5-6 Shift (Automatic)
244/344, Harsh 5-6 Shift (Automatic)
6F50 / 6F55
Diagnostic Routines
Shift Concerns: Harsh 5-6 Shift (Automatic)
