Home
>>
Ford
>>
2010
>>
Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>

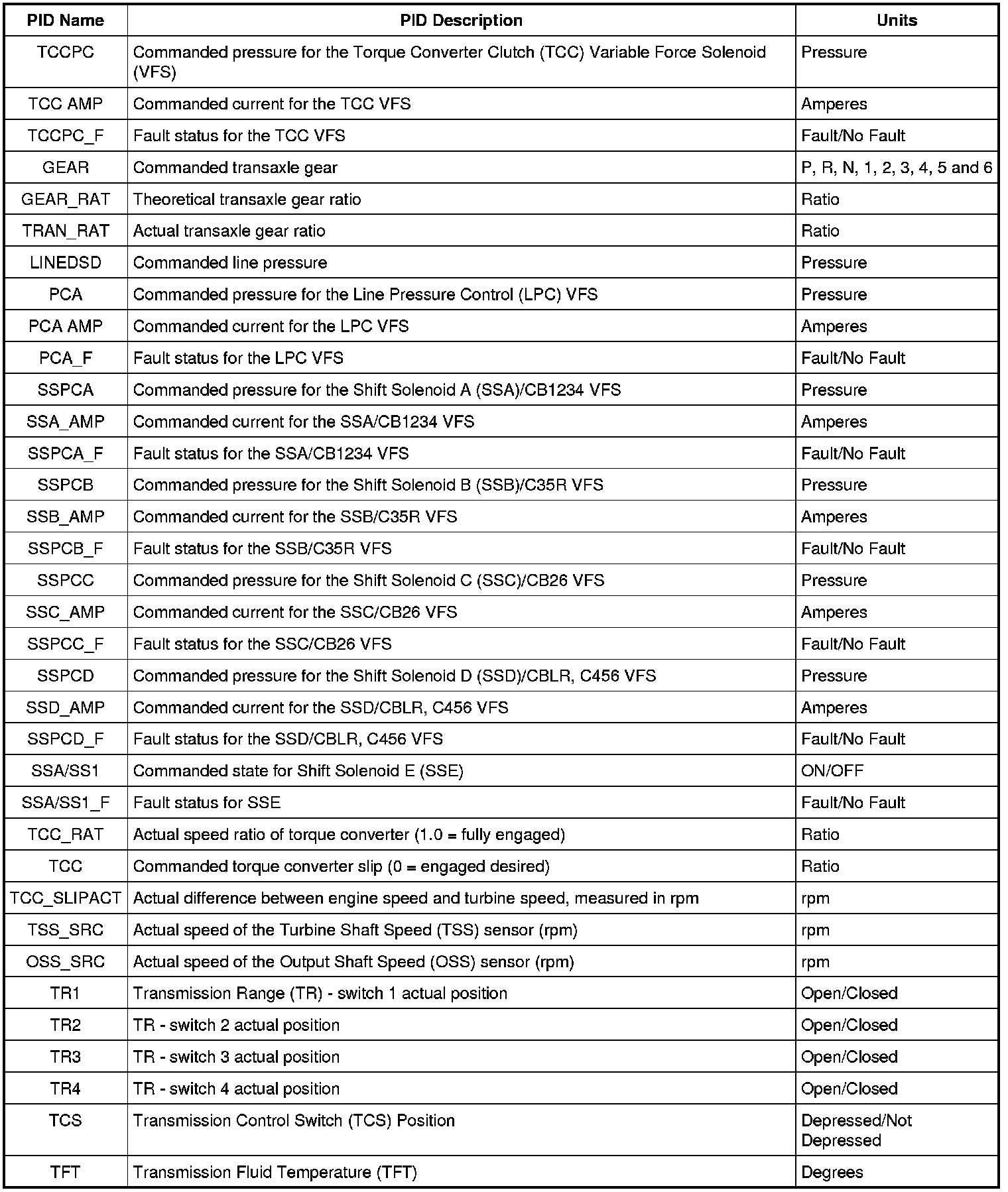

Diagnostic Parameters Identification (PID) Chart
Diagnostic Parameters Identification (PID) Chart
6F50 / 6F55
Diagnostic Parameters Identification (PID) Chart
