Selector Lever - Paddle Shift

Selector Lever - Paddle Shift









Removal

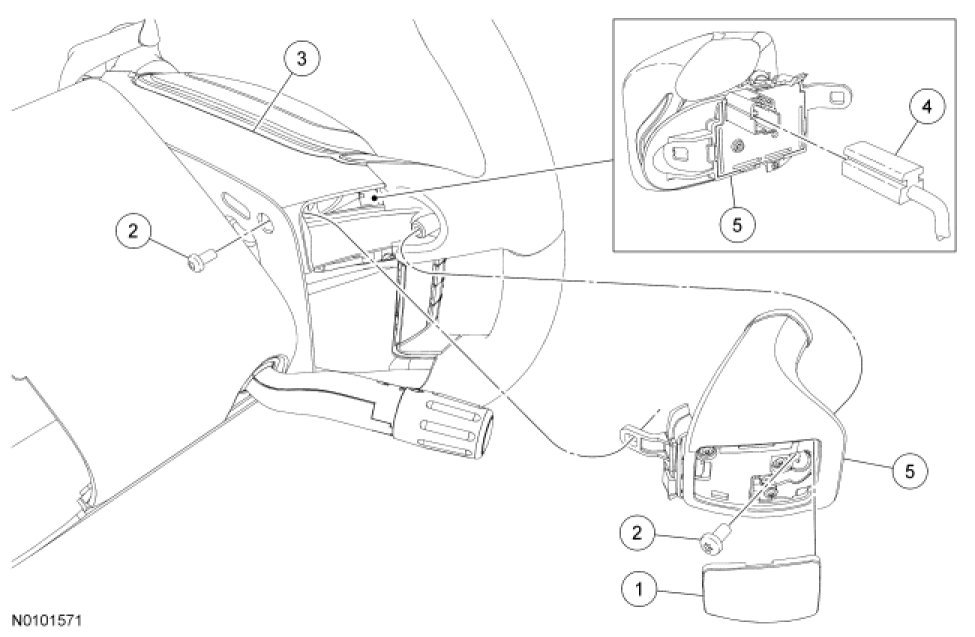

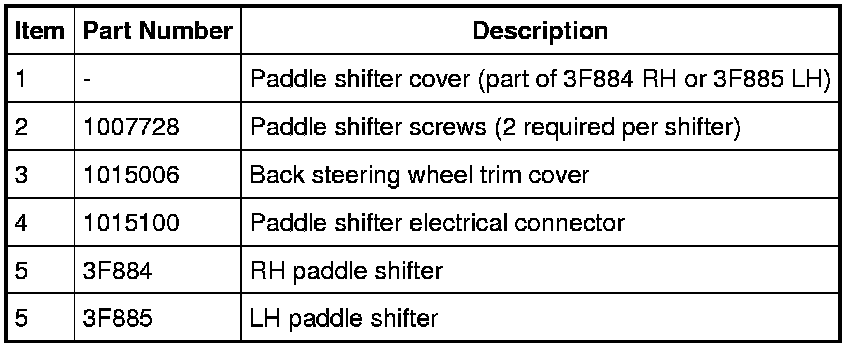

NOTE: This procedure shows removal and installation of the LH paddle shifter. Removal and installation of the RH paddle shifter is similar.

1. Remove the driver air bag module. For additional information, refer to Restraint Systems.

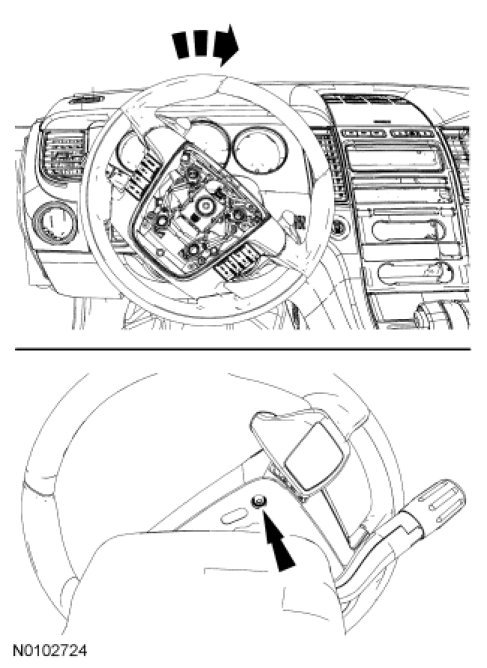

2. NOTE: Steering wheel shown turned clockwise to remove the LH paddle shifter. When removing the RH paddle shifter, turn the steering wheel in the opposite direction.

Turn the steering wheel far enough to access the inner paddle shifter screw.

- Turn the steering wheel clockwise if removing the LH paddle shifter.

- Turn the steering wheel counterclockwise if removing the RH paddle shifter.

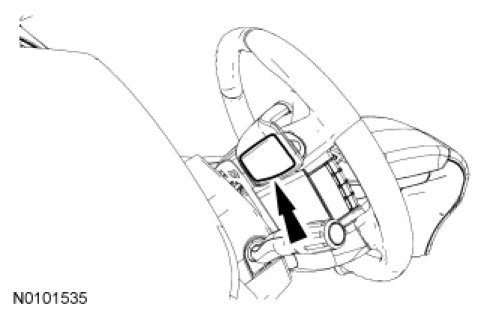

3. Using a suitable tool, gently pry the bottom of the paddle shifter cover up and remove the paddle shifter cover.

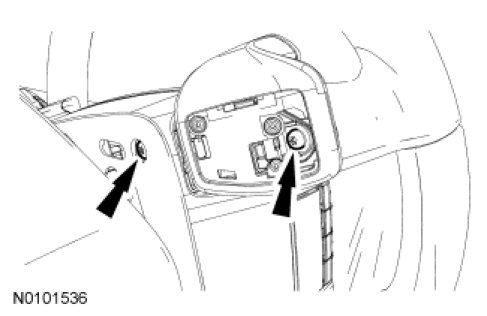

4. Remove the 2 paddle shifter screws.

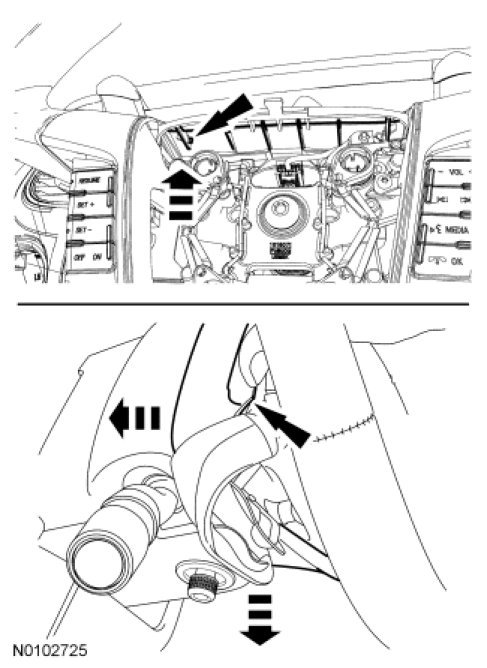

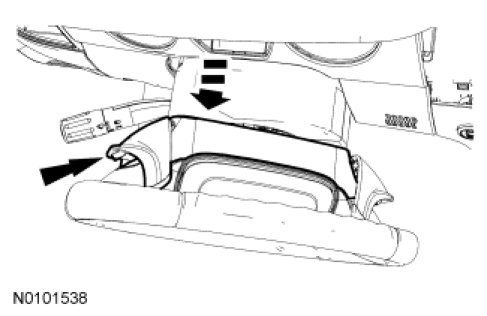

5. Push up on the inside of the back steering wheel trim cover to release the retaining tab from the front steering wheel bezel. Position aside the back steering wheel trim cover and remove the paddle shifter from the steering wheel.

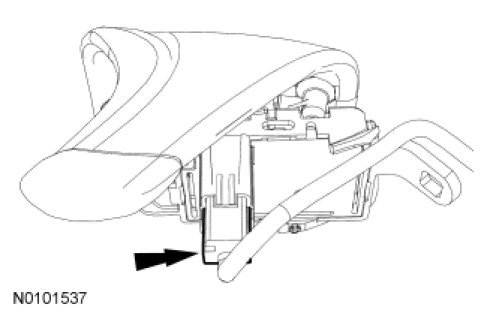

6. Disconnect the electrical connector and remove the paddle shifter.





Installation

1. Connect the paddle shifter electrical connector.





2. Install the paddle shifter on the steering wheel and position the corner of the back steering wheel trim cover back in place.





3. Install the 2 paddle shifter screws.





4. Install the paddle shifter cover.





5. Install the driver air bag module. For additional information, refer to Restraint Systems.
