Alignment Specifications

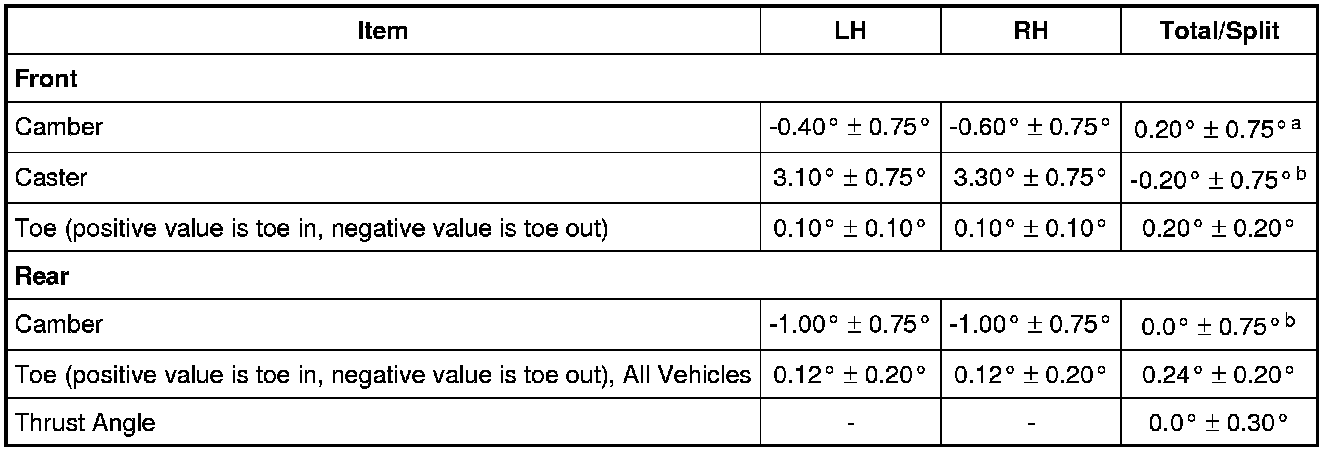

Alignment Specifications

a Camber Total/Split = LH Camber - RH Camber
b Caster Total/Split = LH Caster - RH Caster
