Heated Seat Switch - Rear

Heated Seat Switch - Rear

Removal and Installation

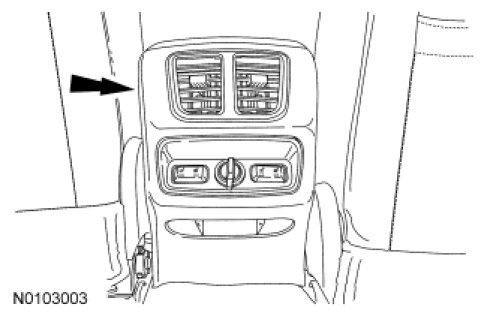

1. Remove the rear panel from the floor console in the following sequence.

1. Pull to disengage the retainers and separate the rear panel.

2. Disconnect the LH and RH heated seat switch electrical connectors.

3. Disconnect the power point electrical connector (if equipped).





2. Release the clips and remove the heated seat switch(es).

3. To install, reverse the removal procedure.
