Bladder System

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)


DTC Charts

The DTCs can be retrieved from the RCM and the OCSM with a scan tool via the DLC.

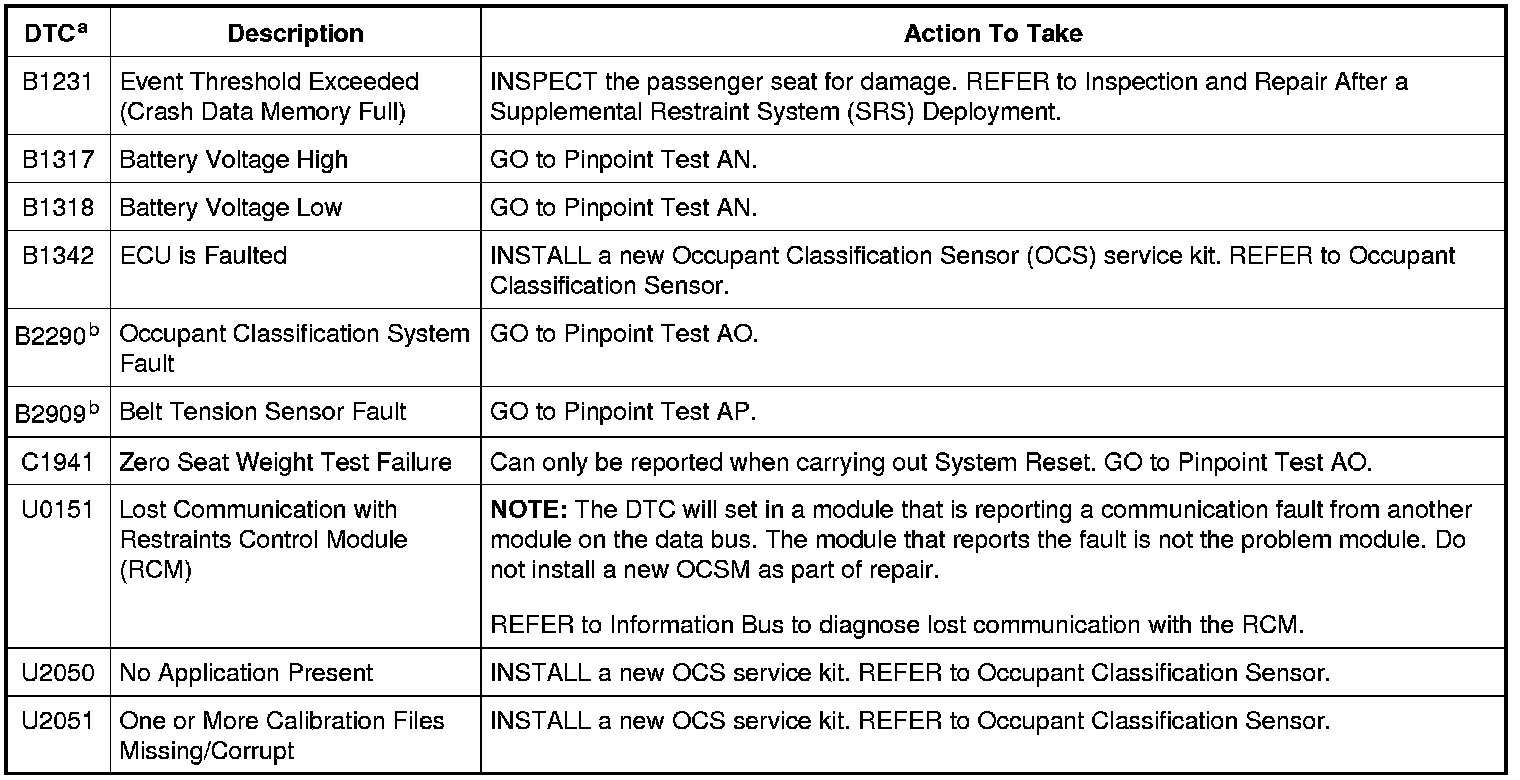

Occupant Classification System Module (OCSM) DTC Chart - Bladder System

NOTE: The Occupant Classification System Module (OCSM) retrieves and reports DTCs using on-demand and CMDTCs DTCs and fault PIDs.






a DTC: Retrieved using scan tool.
b DTC has associated bit-mapped PIDs.
