Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Module









Removal and Installation

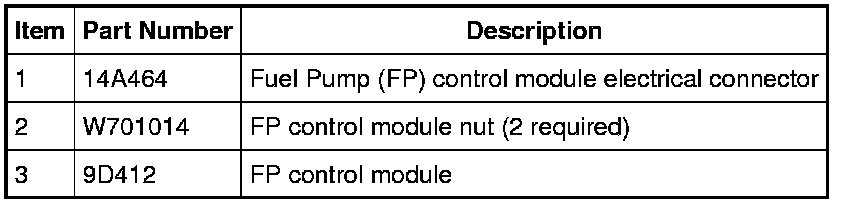

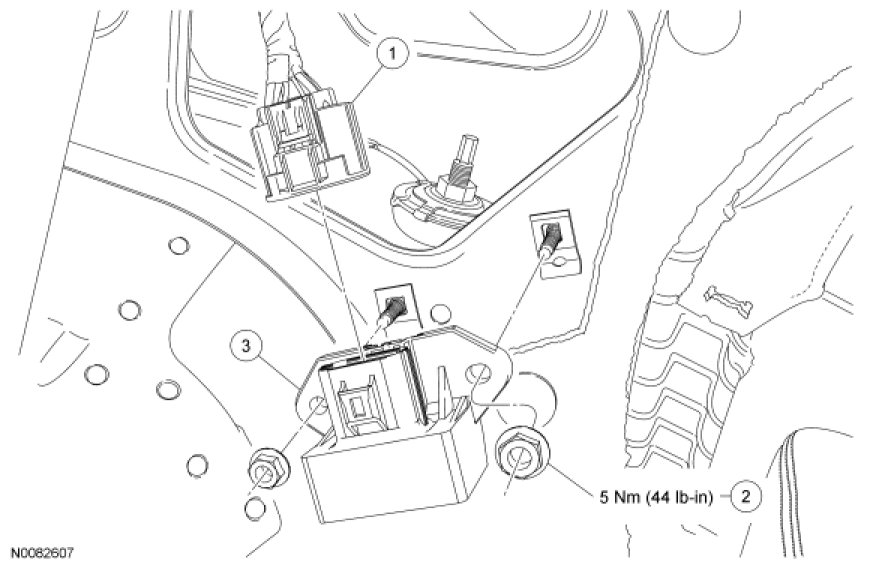

1. Remove the rear seat backrest. For additional information, refer to Seats.

2. Disconnect the Fuel Pump (FP) control module electrical connector.

3. NOTICE: Do not overtighten the fasteners or damage to the module will occur.

Remove the 2 FP control module nuts.

- To install, tighten to 5 Nm (44 lb-in).

4. To install, reverse the removal procedure.
