Dual Climate Controlled Seat Module (DCSM)

Dual Climate Controlled Seat Module (DCSM)





Removal and Installation

NOTE: For component identification and locations, refer to Seat - Exploded View, Front Seat - Exploded View, Front.

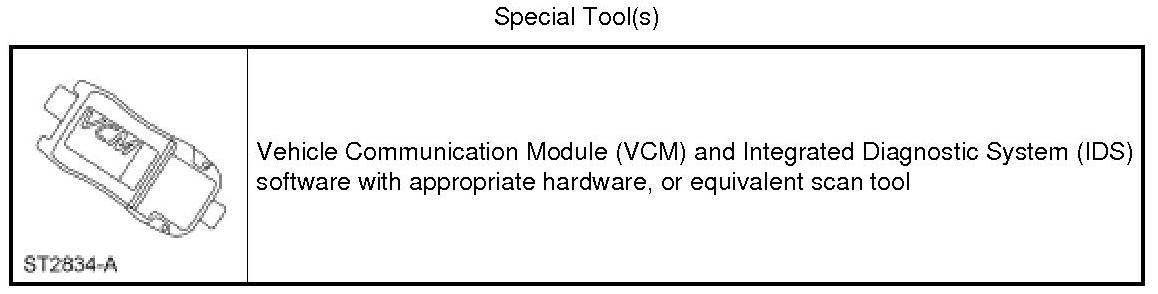

1. When installing a new Dual Climate Controlled Seat Module (DCSM), carry out the appropriate steps in Programmable Module Installation (PMI). For additional information, refer to Information Bus. Programming and Relearning

2. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
Turn the ignition OFF and wait at least one minute.

3. From under the front passenger seat, remove the DCSM in the following sequence.

1. Remove the screws.

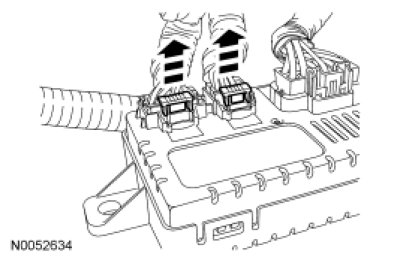

2. Release the locking wedges on the 2 DCSM electrical connectors.

3. Disconnect the electrical connectors.

4. Remove the DCSM.





4. To install, reverse the removal procedure.

5. If a new DCSM has been installed, carry out the appropriate steps in
Programmable Module Installation (PMI). For additional information, refer to Information Bus. Programming and Relearning
