Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM)









Removal and Installation

1. NOTE: Module configuration is only required if a new Parking Aid Module (PAM) is being installed.

Upload the PAM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programming and Relearning

2. Remove the package tray trim panel.

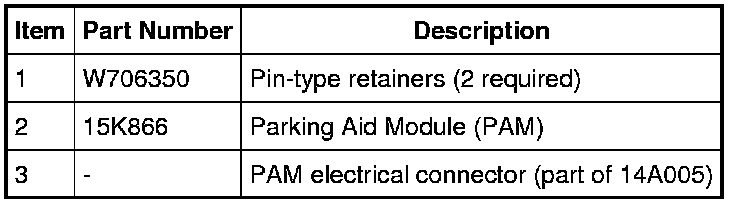

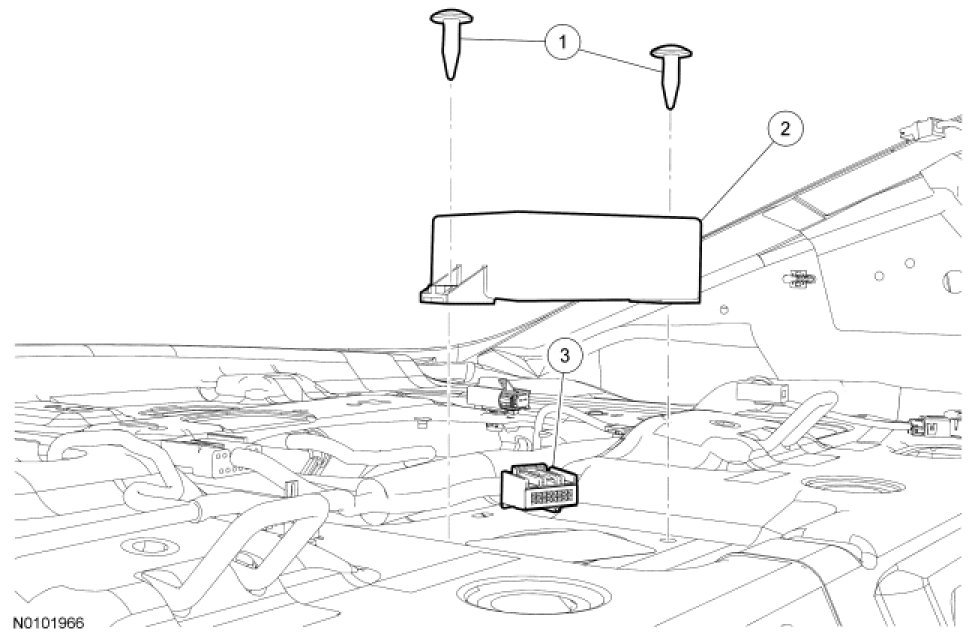

3. Remove the 2 pin-type retainers.
- Disconnect the electrical connector.

4. Remove the PAM.

5. To install, reverse the removal procedure.
- Download the configuration information to the PAM. For additional information, refer to PMI in Information Bus. Programming and Relearning
