Engine Ignition Components - Exploded View
>>

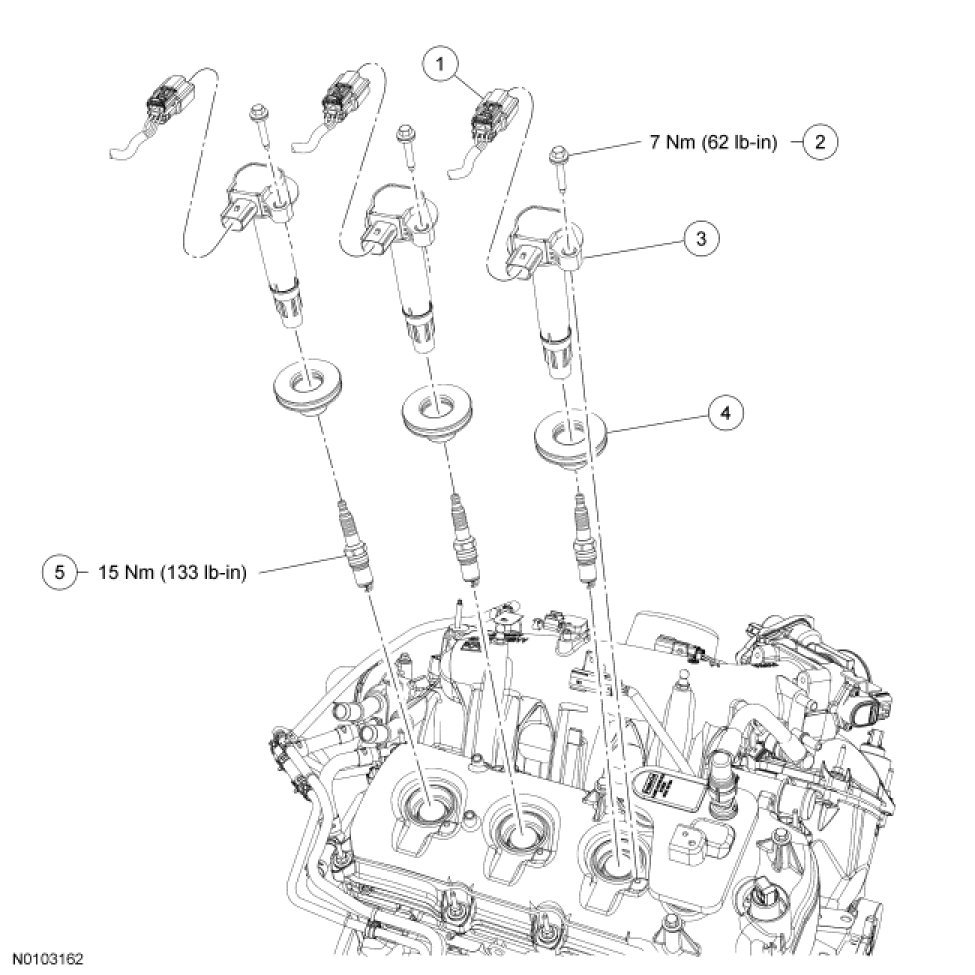

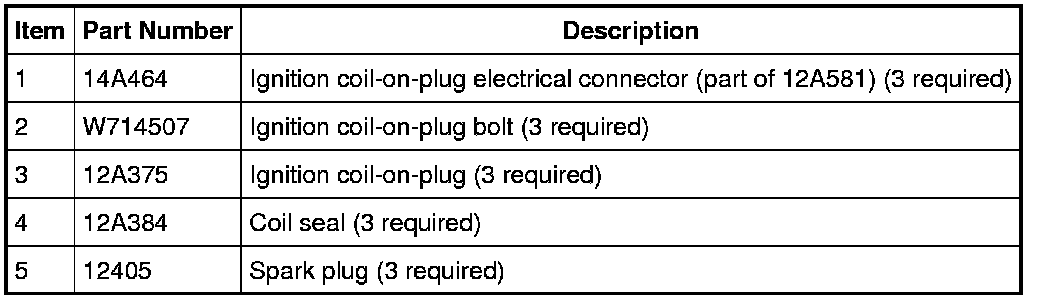

RH Ignition Components - Exploded View
RH Ignition Components - Exploded View
Engine Ignition Components - Exploded View
3.5L RH Side
3.5L GTDI RH Side
