Quick Connect Coupling

Quick Connect Coupling





Disconnect - Type I

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur. Apply clean engine oil to the end of the tube before inserting the tube into the connector.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

1. Disconnect the battery ground cable. For additional information, refer to Battery.

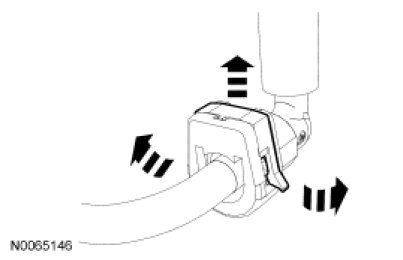

2. Release the lock tab on the quick connect coupling.

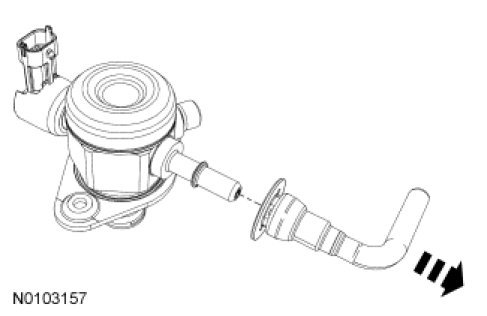

3. Separate the quick connect coupling from the fitting.





Connect - Type I

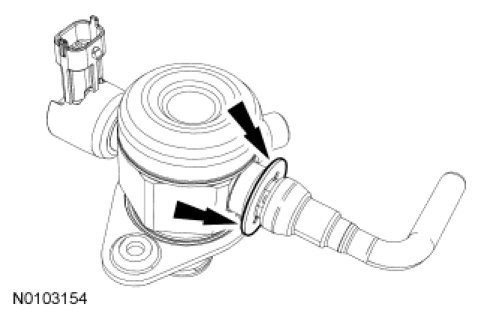

1. NOTE: Apply clean engine oil to the O-ring seals.

NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

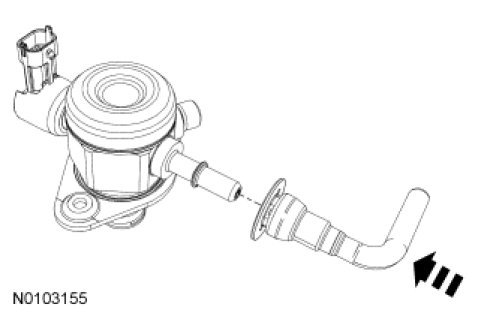

Release the lock tab and install the quick connect coupling onto the fitting.

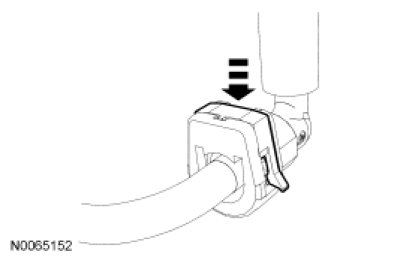

2. Apply the lock tab into the latched position.





3. Connect the battery ground cable. For additional information, refer to Battery.

Disconnect - Type II

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur. Apply clean engine oil to the end of the tube before inserting the tube into the connector.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. For additional information, refer to Fuel System Pressure Release Service and Repair.

2. Disconnect the battery ground cable. For additional information, refer to Battery.

3. NOTE: When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the retaining clip area before disconnecting from the tube.

Depress the retainer clip and disconnect the quick connect coupling from the tube.





Connect - Type II

1. NOTE: Apply clean engine oil to the end of the tube and quick connect coupling O-ring seals.

NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

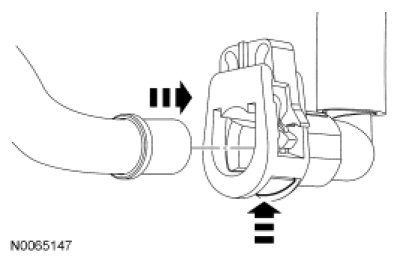

Install the quick connect coupling onto the tube until fully seated.





2. Connect the battery ground cable. For additional information, refer to Battery.

Disconnect - Type III

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur. Apply clean engine oil to the end of the tube before inserting the tube into the connector.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. For additional information, refer to Fuel System Pressure Release Service and Repair.

2. Disconnect the battery ground cable. For additional information, refer to Battery.

3. NOTE: When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the retaining clip area before disconnecting from the tube. Apply clean engine oil to the end of the tube before connecting the quick connect coupling.

Spread the legs of the retainer clip and pull it to the outward position in the quick connect coupling.





4. Depress the retainer clip and disconnect the quick connect coupling from the tube.





Connect - Type III

1. NOTE: Apply clean engine oil to the end of the tube and quick connect coupling O-ring seals.

Install the quick connect coupling onto the tube until fully seated.





2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

Press the retainer clip into the quick connect coupling body until flush and the legs are locked in place.





3. Connect the battery ground cable. For additional information, refer to Battery.

Disconnect - Type IV

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur. Apply clean engine oil to the end of the tube before inserting the tube into the connector.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. For additional information, refer to Fuel System Pressure Release Service and Repair.

2. Disconnect the battery ground cable. For additional information, refer to Battery.

3. Depress the clip into the quick connect coupling.





4. Remove the quick connect coupling from the fitting.





Connect - Type IV

1. NOTE: Apply clean engine oil to the end of the tube and quick connect coupling O-ring seals.

NOTE: Make sure the coupling is fully seated and locked onto the fitting by pulling on the quick connect coupling.

Install the quick connect coupling onto the fitting until fully seated.





2. Connect the battery ground cable. For additional information, refer to Battery.
