Fuel Rail and Fuel Injector - Exploded View




Fuel Rail and Fuel Injector - Exploded View

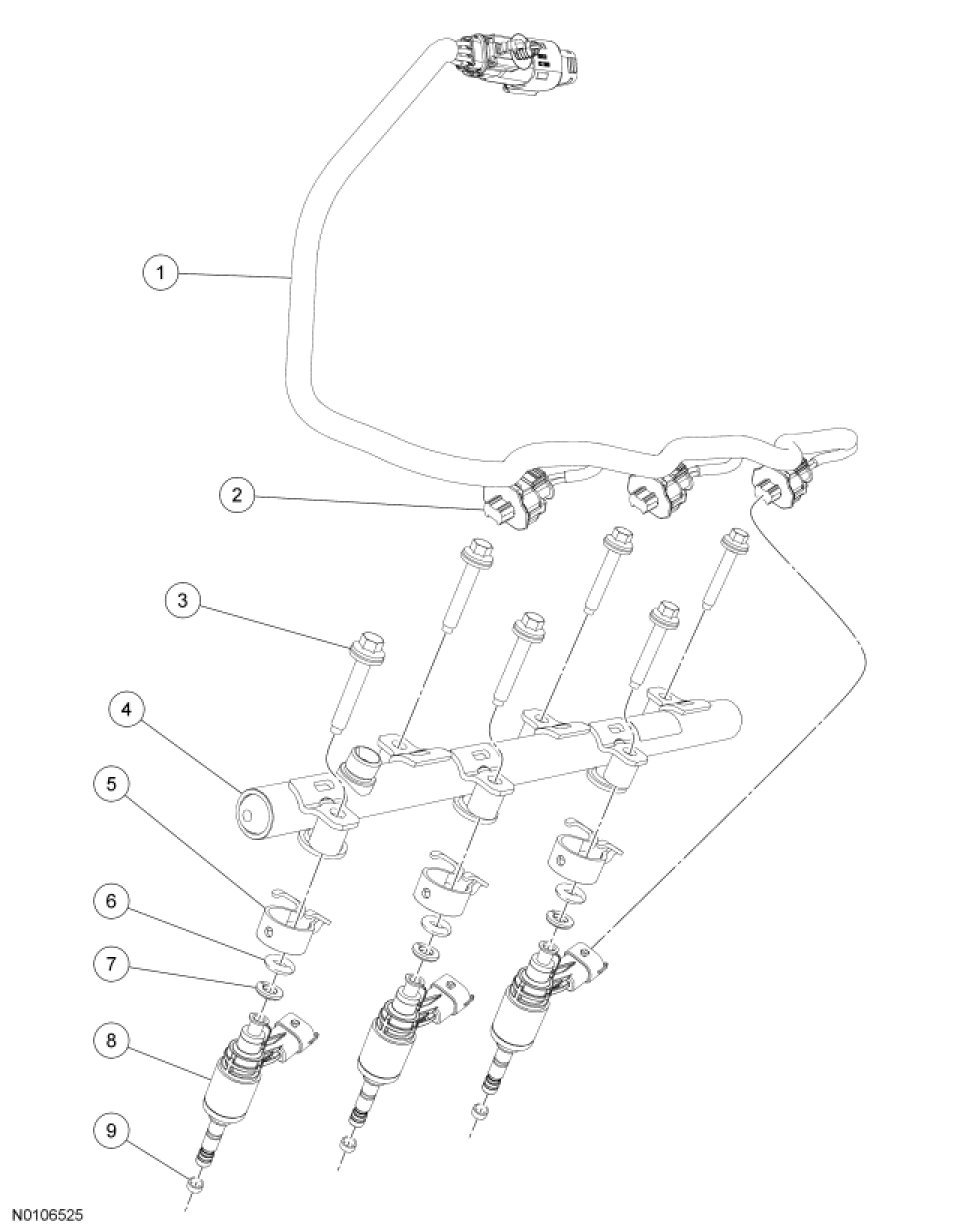

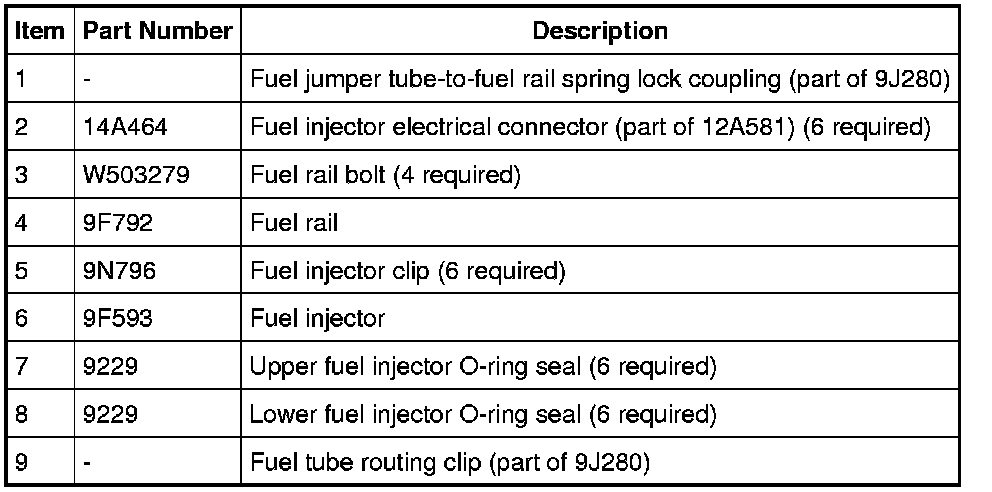

3.5L

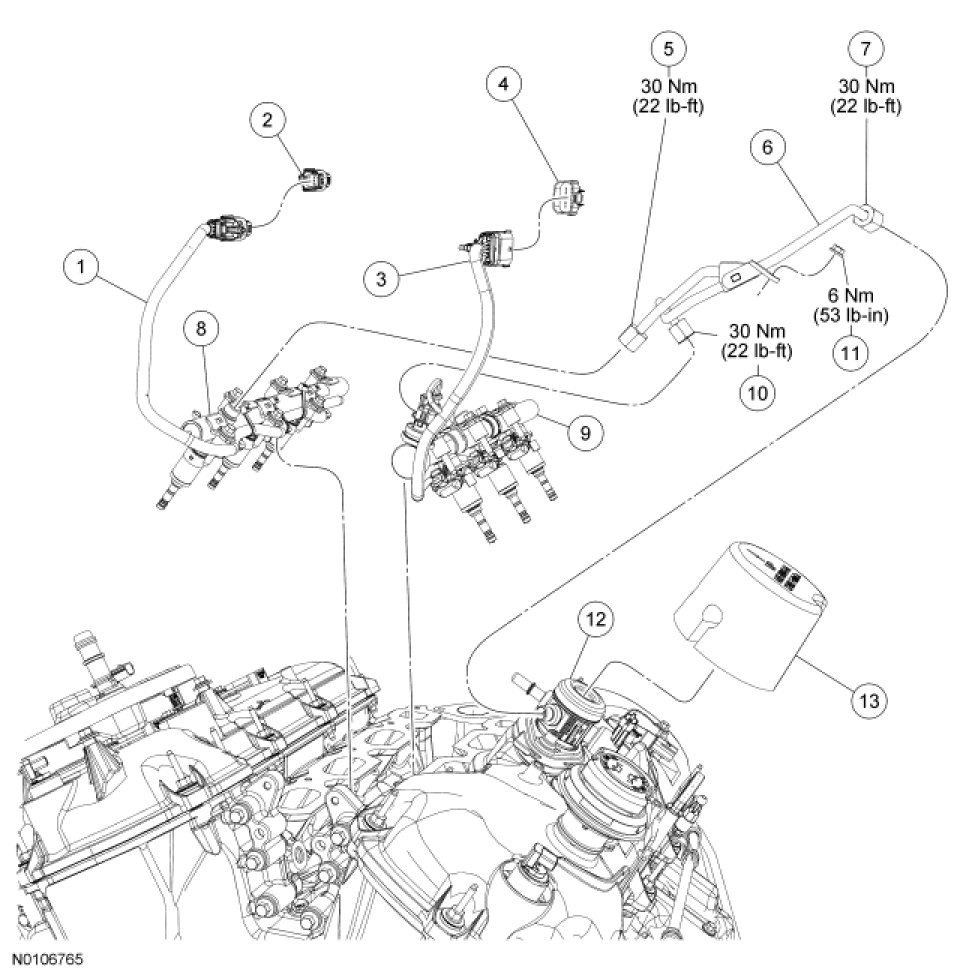

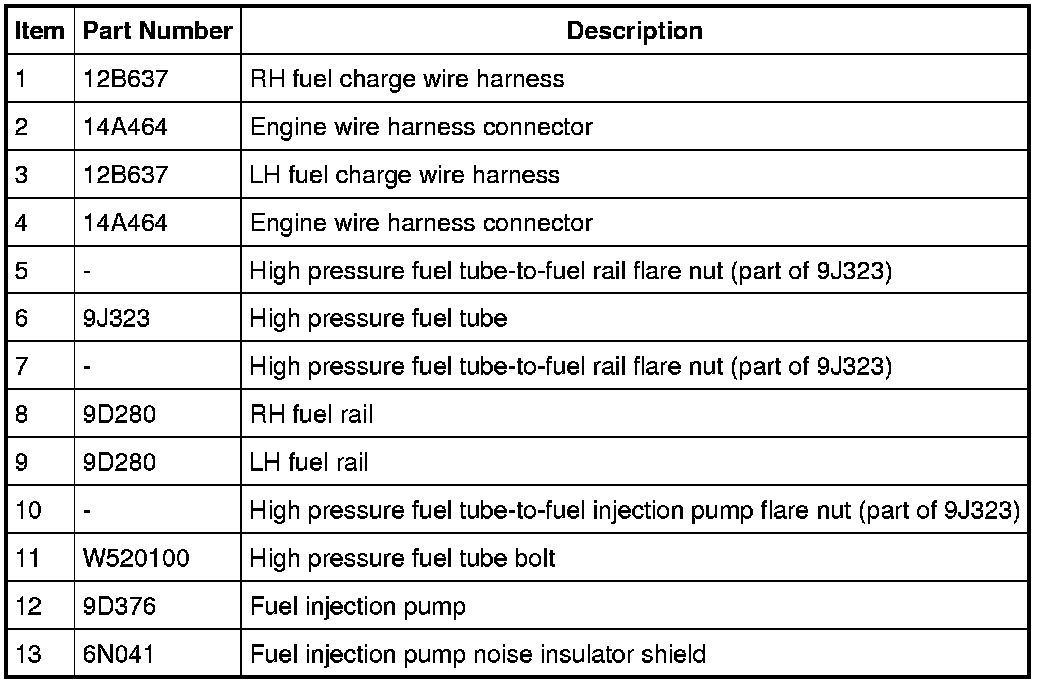

3.5L Gasoline Turbocharged Direct Injection (GTDI) Fuel Rails and High Pressure Fuel Tube (Early Build Vehicles)

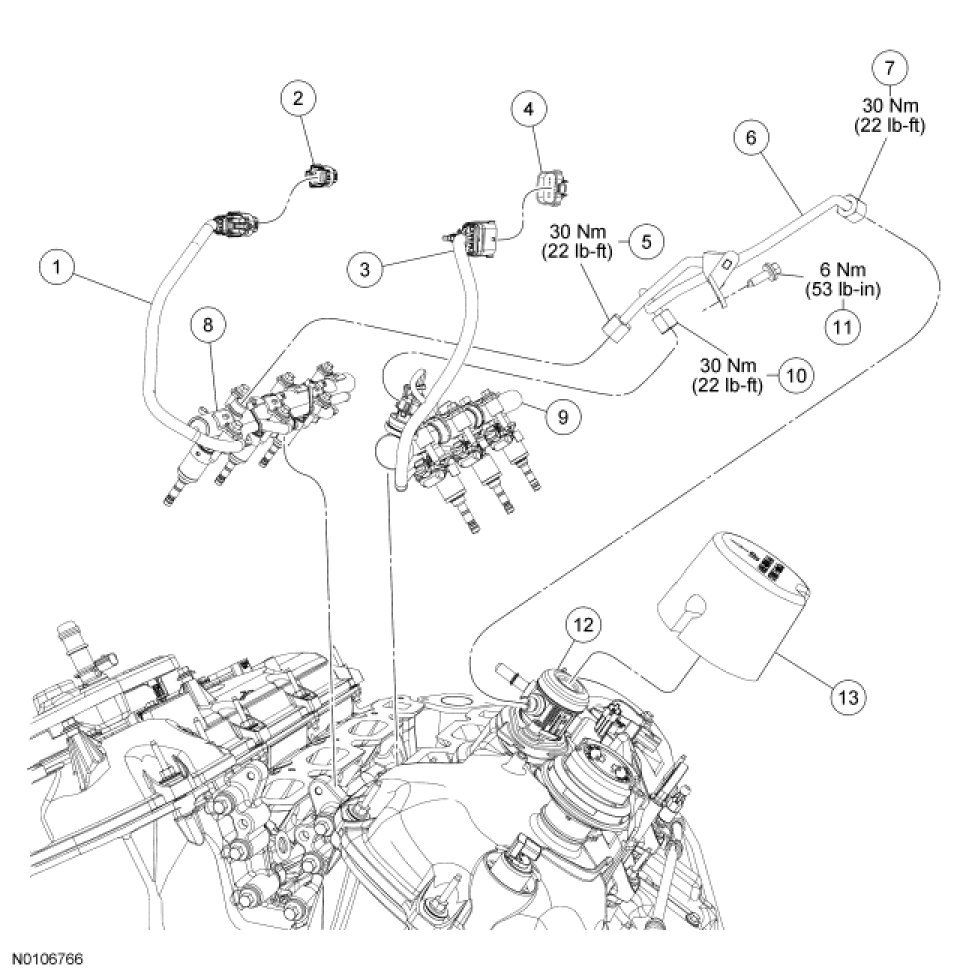

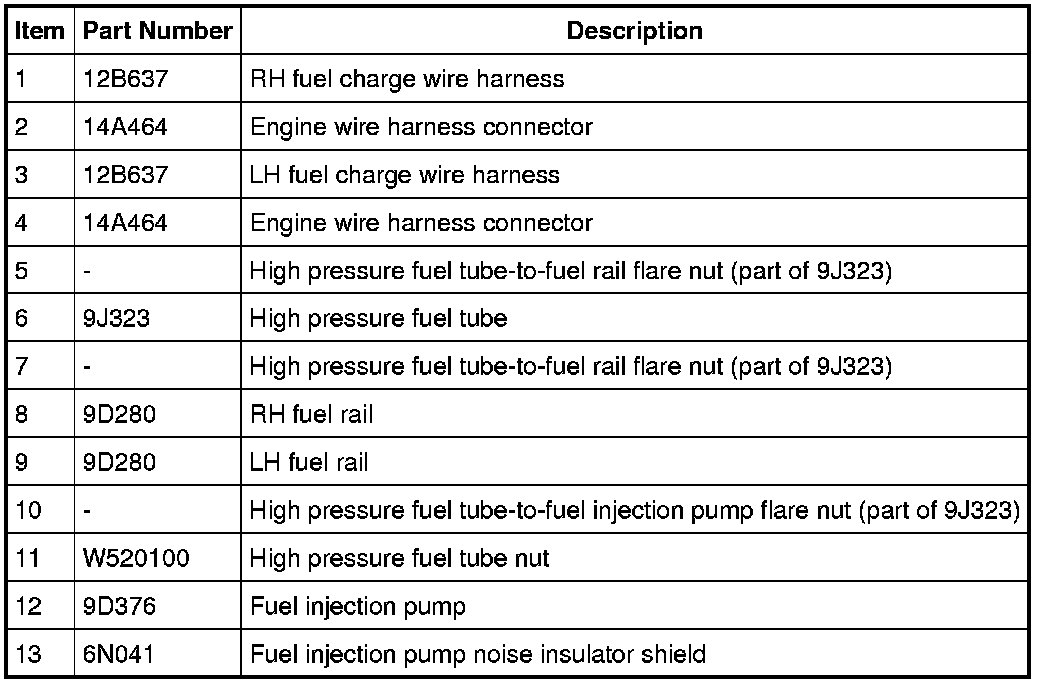

3.5L Gasoline Turbocharged Direct Injection (GTDI) Fuel Rails and High Pressure Fuel Tube (Late Build Vehicles)

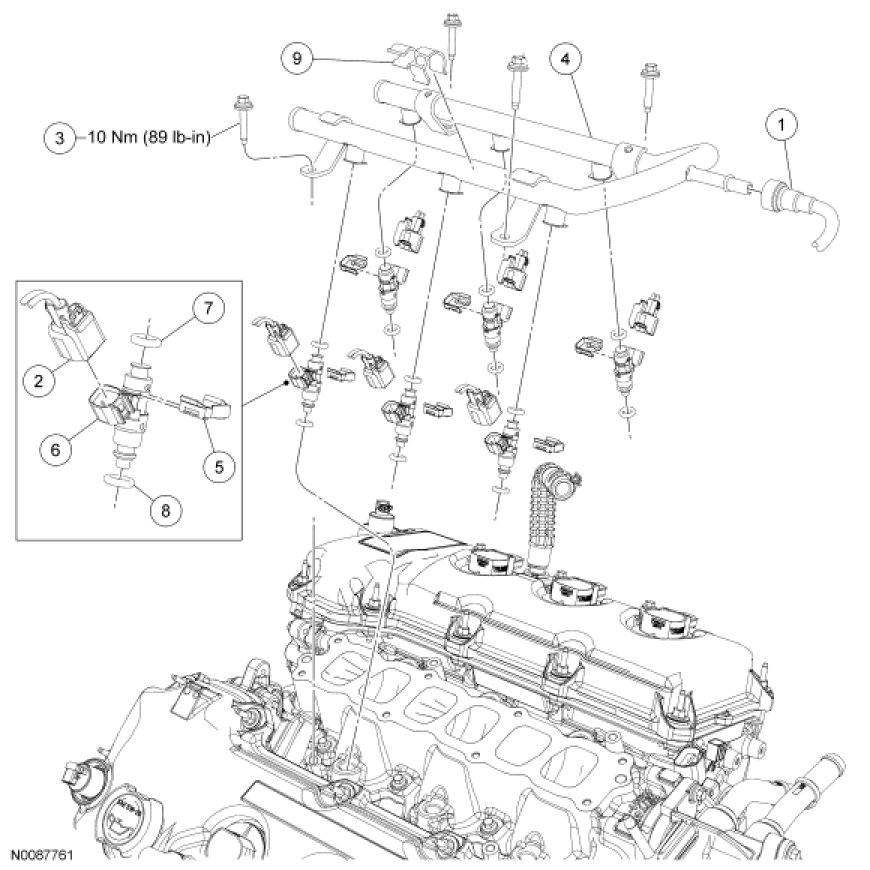

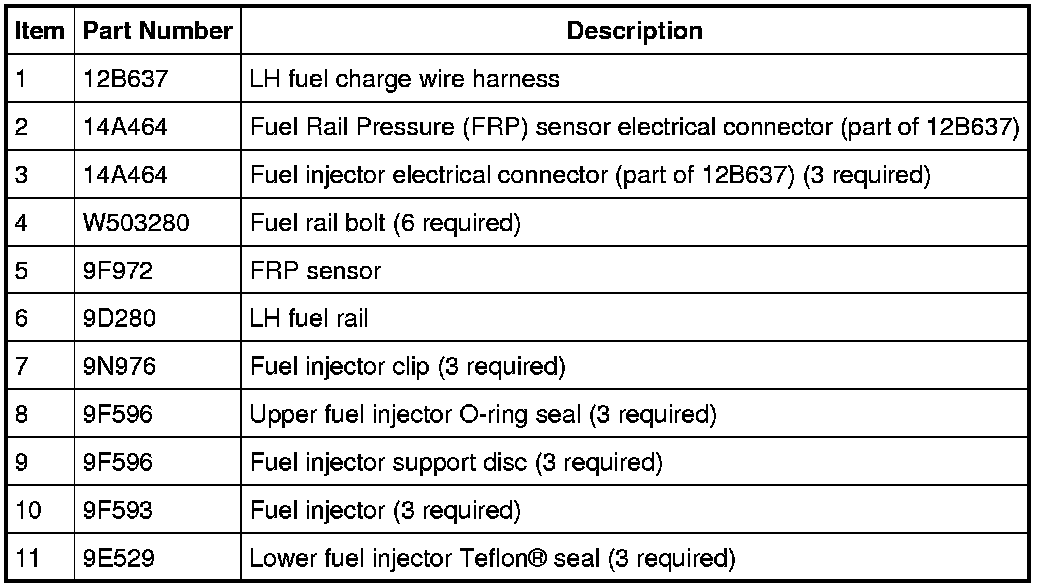

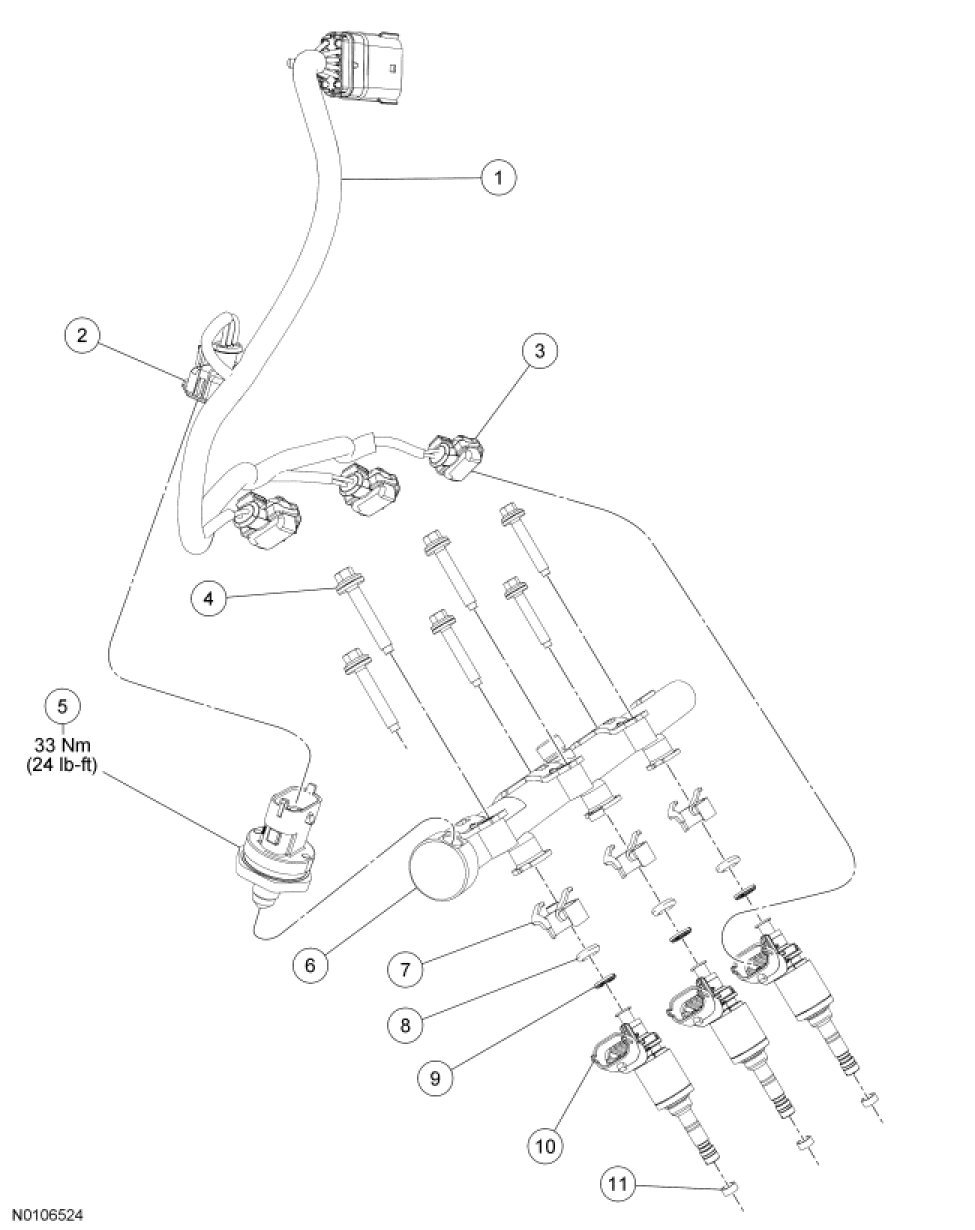

3.5L GTDI LH Fuel Rail and Fuel Injectors

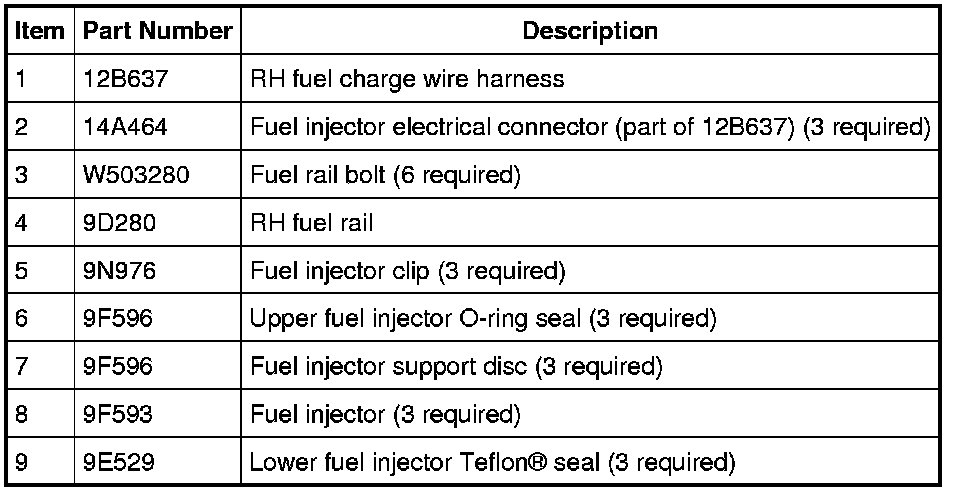

3.5L GTDI RH Fuel Rail and Fuel Injectors
