PCV Heater: Service and Repair

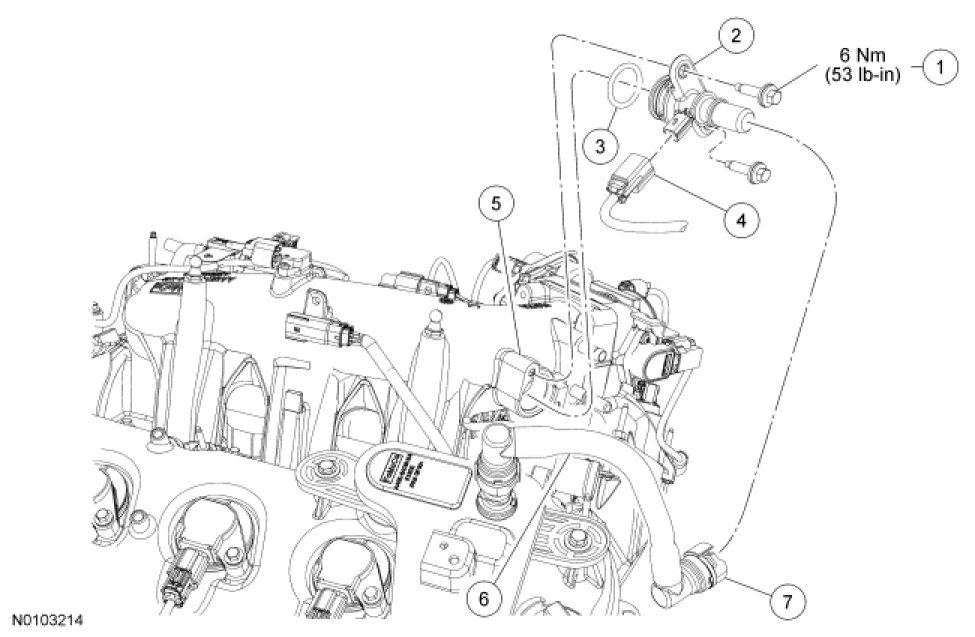

Positive Crankcase Ventilation (PCV) Heater Element - 3.5L GTDI













Removal and Installation

1. Disconnect the PCV heater element electrical connector.

2. Disconnect the crankcase ventilation tube-to-PCV heater element quick connect coupling. For additional information, refer to Fuel Delivery and Air Induction.

3. Remove the 2 PCV heater element bolts.
- To install, tighten to 6 Nm (53 lb-in).

4. Remove the PCV heater element from the intake manifold.

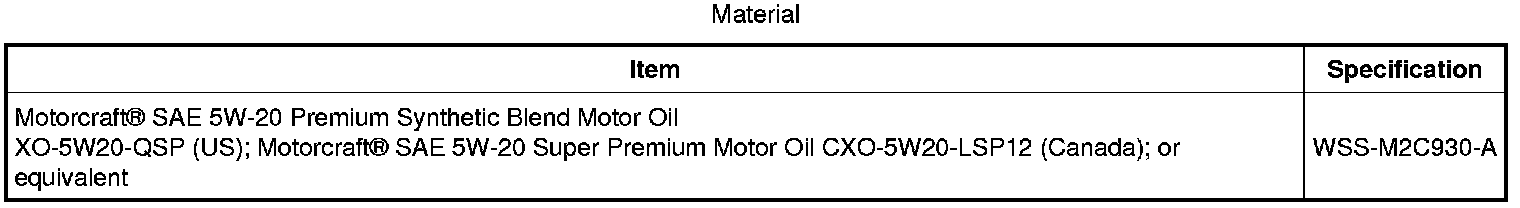

5. NOTE: To install, apply clean engine oil to the O-ring seal.

NOTE: When installing, make sure the PCV valve heater element electrical connector is in the correct position to allow the wiring harness to be connected.

To install, reverse the removal procedure.
