Parking Lamp: Service and Repair

Parking Lamp - Auxiliary









Removal and Installation

1. Remove the front lower air deflector. For additional information, refer to Bumper - Exploded View, Front in Bumper.

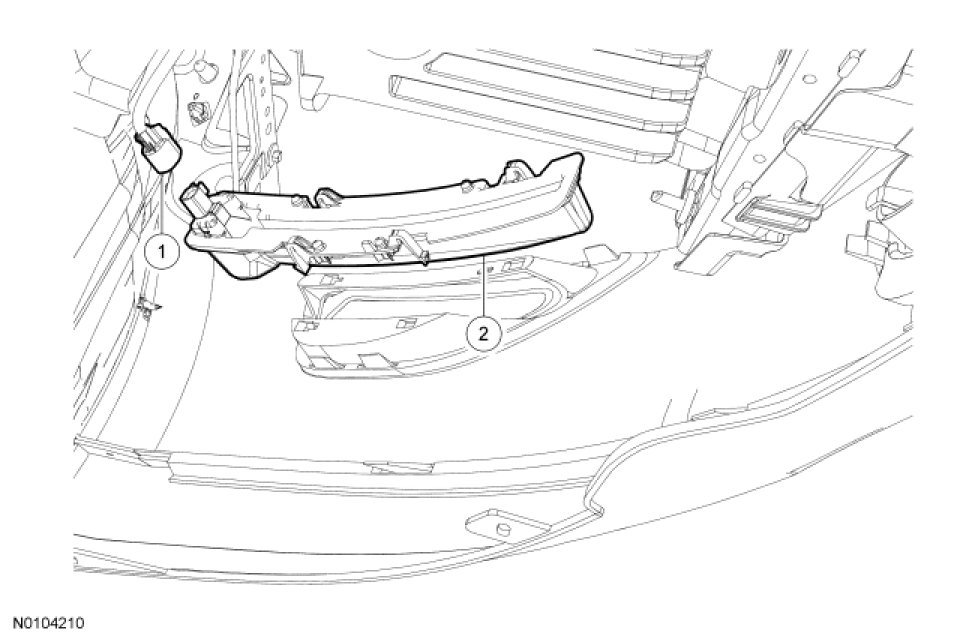

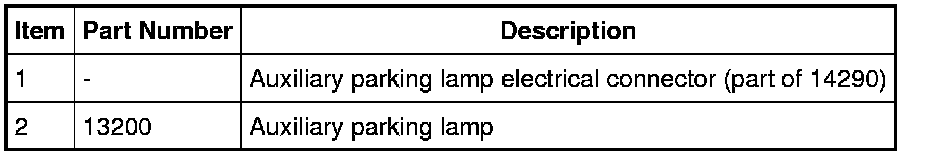

2. Release the tabs and remove the auxiliary parking lamp.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
