Pinpoint Test D: The Temperature Gauge Is Inoperative

Instrumentation, Message Center and Warning Chimes

Pinpoint Tests

Pinpoint Test D: The Temperature Gauge Is Inoperative

Normal Operation

The PCM uses the Cylinder Head Temperature (CHT) sensor to measure the engine temperature. The Instrument Panel Cluster (IPC) receives the engine temperature data from the PCM over the High Speed Controller Area Network (HS-CAN) communication bus. The IPC monitors the engine temperature data received from the PCM and commands the temperature gauge indication with a corresponding movement of the pointer.

If the engine temperature data is missing for 5 seconds or less or if the IPC receives invalid engine temperature data for 5 seconds or less, the IPC defaults the temperature gauge to the last setting, based upon the last known good temperature status message. If the IPC does not receive the engine temperature status message from the PCM for more than 5 seconds, the IPC sets DTC U0100:00 in continuous memory and defaults the temperature gauge to cold (C). If the engine temperature data is deemed invalid by the IPC for 5 seconds or more, the IPC sets DTC U0401:68 and defaults the temperature gauge to cold (C).

NOTE: If DTC U0100:00 is set in the IPC, other observable symptoms may be an inoperative tachometer, speedometer or odometer.

This pinpoint test is intended to diagnose the following:

- PCM
- IPC



PINPOINT TEST D: THE TEMPERATURE GAUGE IS INOPERATIVE

-------------------------------------------------
D1 RETRIEVE THE RECORDED DTCs FROM THE PCM KOEO SELF-TEST


- Check for recorded PCM DTCs Key ON Engine OFF (KOEO) self-test.
- Are any DTCs recorded?

Yes
DIAGNOSE all PCM DTCs first. REFER to Computers and Control Systems Information.

No
GO to D2.

-------------------------------------------------
D2 CARRY OUT THE TEMPERATURE GAUGE ACTIVE COMMAND USING THE SCAN TOOL


- Ignition ON.
- Enter the following diagnostic mode on the scan tool: IPC DataLogger.
- NOTE: Make sure to set the scan tool to 0 or full cold before beginning this step.

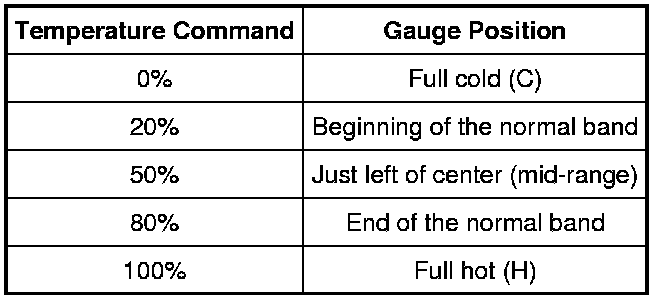

- Select the IPC temperature gauge (ENGCOOLNT) active command. Command the temperature gauge according to the following table:





- Does the temperature gauge operate according to the above specifications?

Yes
GO to D3.

No
INSTALL a new IPC. REFER to Instrument Panel Cluster (IPC) Instrument Panel Cluster (IPC). TEST the system for normal operation.

-------------------------------------------------
D3 RETRIEVE THE RECORDED DTCs FROM THE IPC SELF-TEST


- Check for recorded DTCs from the IPC self-test.
- Are any DTCs recorded?

Yes
For DTC U0100:00, GO to Pinpoint Test AR. Pinpoint Tests AR: DTC U0100:00

For DTC U0401:68, RETRIEVE and REPAIR all non-network DTCs in the PCM and other modules on the network. REFER to Computers and Control Systems Information and Body Control Systems for a list of all DTCs.

For all other DTCs, REFER to DTC Charts. Instrumentation, Message Center and Warning Chimes

No
INSTALL a new PCM. REFER to Computers and Control Systems. TEST the system for normal operation.

-------------------------------------------------
